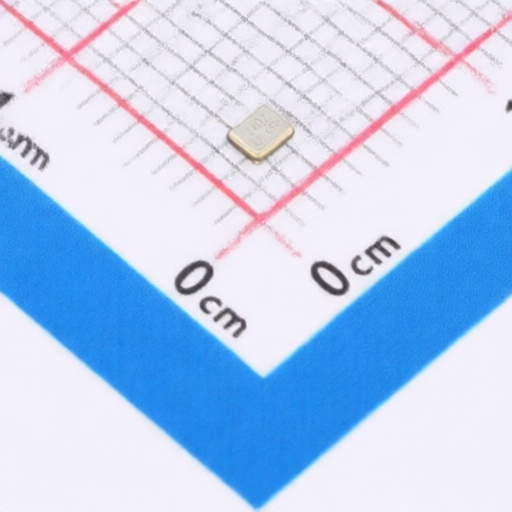

Low Aging SMD Crystal ECS ECS-400-10-37B2-CKM-TR Wireless Application and Extended Temperature Range
Low Aging SMD Crystal ECS ECS-400-10-37B2-CKM-TR Wireless Application and Extended Temperature Range
Specifications
Normal temperature Frequency Tolerance :
±10ppm
Frequency Stability :
±10ppm
Operating Temperature :
-20℃~+70℃
Load Capacitance :
10pF
Equivalent Series Resistance(ESR) :
40Ω
Frequency :
40MHz
Description :
Crystal 40MHz ±10ppm 10pF 40Ω SMD2016-4P
Mfr. Part # :
ECS-400-10-37B2-CKM-TR
Model Number :
ECS-400-10-37B2-CKM-TR
Package :
SMD2016-4P
Description

ECX-1637B2 SMD Crystal

The sub miniature ECX-1637B2 is a very compact SMD Crystal. The 2.0 x 1.6 x 0.45 mm ceramic package is ideal for wireless applications. Key advantages include low 1st year aging of 2 ppm Max. and an extended temperature range option. This product is RoHS Compliant.

Product Attributes

  • Brand: ECS
  • Certifications: RoHS Compliant

Technical Specifications

ParameterConditionsECX-1637B2UnitsMINTYPMAX
FrequencyMHz16.00050.000
Mode of OscillationFundamental
Frequency Tolerance*@ +25C (C option)ppm 10
Frequency Stability*-30 ~ +85C (KY option)ppm 10
Shunt CapacitanceCopF3
Load CapacitanceSpecify in P/NpF8
Drive LevelDLW100
Operating Temperature*Topr (Y option)C-30+85
Storage TemperatureTstgC-55+125
Aging (First Year)@ +25C 3Cppm2
ESR16.000 ~ 19.999 MHz150
ESR20.000 ~ 23.999 MHz70
ESR24.000 ~ 39.999 MHz50
ESR40.000 ~ 50.000 MHz40
Pad Connections1In/Out
Pad Connections2Gnd
Pad Connections3Out/In
Pad Connections4Gnd
Peak Solder TempC+260
Solder Profile Durationsec10
Solder CyclesCycles2
MSL1
Lead FinishAu

2410311246_ECS-ECS-400-10-37B2-CKM-TR_C5371760.pdf
