Description

Product Overview

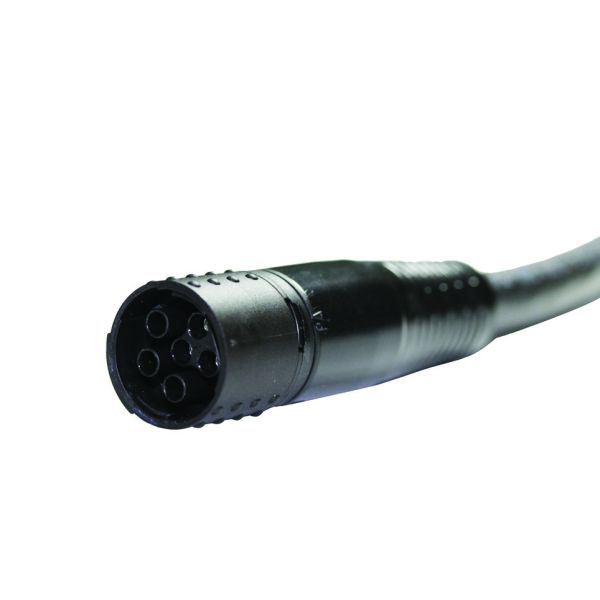

The x|mate M15 Power Motor connector is a very compact solution designed for power and signal transmission in industrial applications. It supports up to 6 x 2.5mm wires, offering a configuration of 4 x 630V / 16A for power and 2 x 63V / 10A for signal. Key features include a quick-lock system, tamper-proof overmold evolutions, and panel parts with M20 thread for easy integration into existing terminal boxes. This connector is ideal for asynchronous induction motors up to 7.5 kW, aggregates, and pumps, providing a reliable connection in demanding environments.

Product Attributes

  • Brand: Amphenol-Tuchel Electronics GmbH
  • Product Line: x|mate
  • Model Series: M15 Power Motor connector
  • Origin: Germany
  • Inserts Material: PA
  • Contacts Material: Silver plated
  • Overmold: Tamper-proof evolutions
  • Locking System: Quick-lock system
  • Panel Thread: M20

Technical Specifications

Parameter Standard Value
Number of contacts 3 + 2 + PE
Wire gauge 2.5mm
Flammability UL 94 V 0
Temperature range IEC 60068-1 -20C / +60 C
Mechanical operation DIN EN 60512, test 9a > 500 mating cycles
Rated voltage DIN EN 60664-1 (=VDE 01 10-1) 630/63V
Rated current DIN EN 60512-5-2, test 5b / UL 1977 16A / 10A
Pollution degree DIN EN 60664-1 3
Material group DIN EN 60664-1 II
Installation (over voltage) category DIN EN 60664-1 III
Rated impulse withstand voltage DIN EN 60664 - 1 6000V
IP degree of protection DIN EN 60529 IP67

Product Variants

Receptacles:

  • C115 E02 041 G1 receptacle male
  • C115 E05 041 G1 receptacle female

Cable Assemblies:

  • CA115 10 0 100 XXX connection cable - male-female, lengths on request
  • CA115 11 0 100 XXX male connector with cable, open end - lengths on request
  • CA115 12 0 100 XXX female connector with cable, open end - lengths on request
  • CA115 13 0 100 XXX male connector angled with cable, open end - lengths on request
  • CA115 14 0 100 XXX female connector angled with cable, open end - lengths on request

Angled versions available on request.
