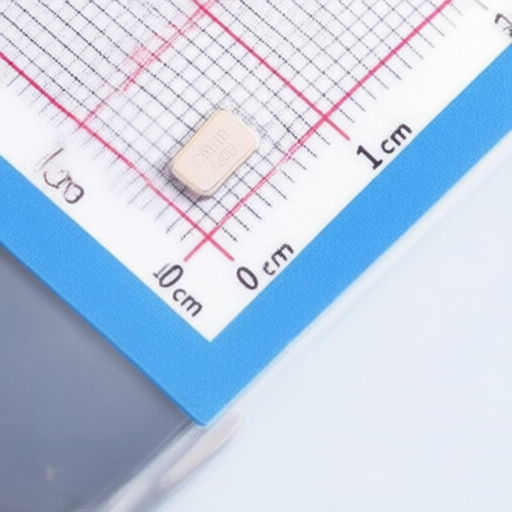

Bluetooth Device Quartz Crystal Resonator CHANGXING ELECTRONICS 9DSC080G0020L with High Frequency Stability
Bluetooth Device Quartz Crystal Resonator CHANGXING ELECTRONICS 9DSC080G0020L with High Frequency Stability
Specifications
Normal temperature Frequency Tolerance :
±10ppm
Frequency Stability :
±30ppm
Load Capacitance :
20pF
Operating Temperature :
-40℃~+85℃
Equivalent Series Resistance(ESR) :
-
Frequency :
8MHz
Description :
Crystal 8MHz ±10ppm 20pF SMD5032-4P
Mfr. Part # :
9DSC080G0020L
Model Number :
9DSC080G0020L
Package :
SMD5032-4P
Description

Product Overview

The 9DSC080G0020L is a 5.0x3.2 SEAM Sealing Quartz Crystal Resonator from CHANGXING ELECTRONICS CO.,LTD. It offers high precision and frequency stability, making it an excellent choice for reducing EMI effects. This product is ideal for applications in Bluetooth devices, wireless communication sets, DSC, PDA, and mobile phone USB interface cards. It is RoHS Compliant and Pb Free.

Product Attributes

  • Brand: CHANGXING ELECTRONICS CO.,LTD.
  • Product Model: 9DSC080G0020L
  • Series: 9D Series (SMD SEAM Sealing Crystals)
  • Certifications: RoHS Compliant / Pb Free
  • Origin: Fujian, China

Technical Specifications

Parameter Value Unit Notes
Nominal Frequency 8.000000 MHz
Load Capacitance 20 pF
Oscillation Mode Fund at 25 3
Frequency Tolerance 30 ppm
Over Operating Temp. Range 3 ppm
Operating Temperature -40+85
Aging (1st Year) 3 ppm
Drive Level 100 uW Max.
Effective Resistance (Rr) 100 Max.
Shunt Capacitance (C0) 5 pF Max.
Motional Capacitance (C1) 125 fF
Pulling Sensitivity (TS) -1000+5000 ppm/pF
Insulation Resistance 500 M Min. at DC 100V
Spurious Response - dB FDLDH 5 Max. DLDH2 5 Max.
Storage Temperature Range -55+125
Dimensions (L x W x H) 5.0 x 3.2 x 0.9 mm SMD
Reel Quantity 1,000 pcs per reel (WHITE)
Product Weight 41.070 mg

2509221035_CHANGXING-ELECTRONICS-9DSC080G0020L_C46613789.pdf
