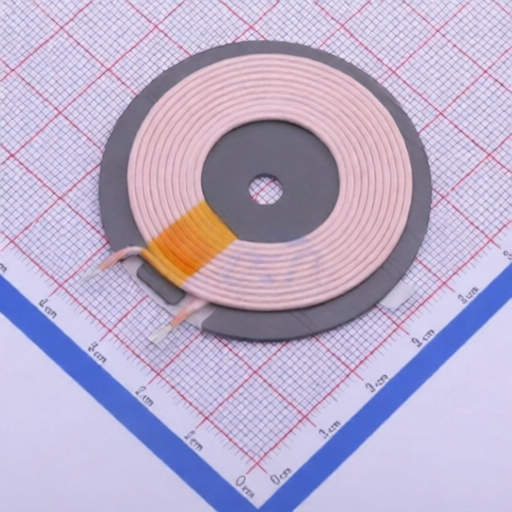

CND-tek YX-A11-R501053-G0807 BEIJIAO adhesive backed wireless transmitting single coil module for power delivery
CND-tek YX-A11-R501053-G0807 BEIJIAO adhesive backed wireless transmitting single coil module for power delivery
Specifications
Function :
Transmitter
Inductance :
6.3uH
Number of Coils :
Single Coil, Single Layer
DC Resistance(DCR) :
75mΩ
Tolerance :
±10%
Operating Temperature :
-40℃~+85℃
Description :
Transmitter 6.3uH 75mΩ ±10% Wireless Charging Coils RoHS
Mfr. Part # :
YX-A11-R501053-G0807(BEIJIAO)
Model Number :
YX-A11-R501053-G0807(BEIJIAO)
Description

Product Overview

The YX-A11-R501053-G0807 is a wireless transmitting single coil module with an adhesive backing. It is designed for applications requiring efficient wireless power transfer.

Product Attributes

  • Brand: Shenzhen CND Electronic Co., Ltd.
  • Origin: Shenzhen, China
  • Material: Copper wire, magnetic sheet, high-temperature tape, adhesive
  • Color: Not specified
  • Certifications: Not specified

Technical Specifications

SymbolValue (mm)Description
A50.001.00Overall dimension
B43.001.00Overall dimension
C20.00.50Overall dimension
D5.500.50Overall dimension
E3.001.00Overall dimension
F7.001.00Overall dimension
Thickness 2.60mmTotal thickness of magnetic sheet and coil with adhesive
ParameterValue @25UnitNotes
Operating Temperature range-40 to +85
Storage temperature range-25 to +125
Test Frequency100 KHz, 100mV@ 25, 65%
OCL6.3010%H
Wire Diameter0.08mm*105P
Turns Ratio10T
Q Value40MIN
DCR75mMAX
ItemMaterial NameSpecificationUsageRemarks
1Enameled wire0.08mm*105P
2Self-adhesive wire0.08mm*105P
3Magnetic sheetG 50.0*5.3*1.0mm
4High-temperature tape8.00*0.05mm
5Adhesive tapeT 48.0*5.5mm
6GlueEnvironmentally friendly water-based glue
7Solder tinSn97.3-0.7Cu
Packaging DetailSpecification
Quantity per grid6 PCS
Quantity per carton300 PCS (6*50)
Quantity per carton900 PCS (300*3)
Carton size350*350*180mm

2409272303_CND-tek-YX-A11-R501053-G0807-BEIJIAO_C424430.pdf
