Product Overview

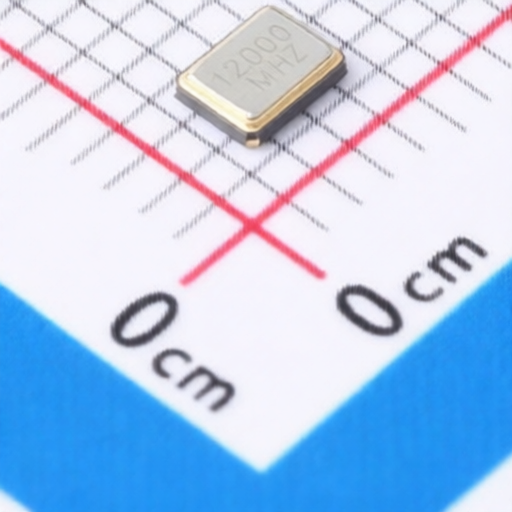

This document details the specifications for a 12.000MHz SMD 3225 Crystal. It outlines electrical and environmental specifications, recommended reflow profiles, product dimensions, identification markings, and package information. By placing an order, customers acknowledge and agree to Taitien's Terms and Conditions.

Product Attributes

• Brand: Taitien
• Product Type: SMD 3225 Crystal
• Nominal Frequency: 12.000MHz
• Model: 3225-12-12-10/4B
• Revision: 01
• Release Date: 12/14/2015

Technical Specifications

Environmental Specifications

Recommended IR Reflow Profile

IR REFLOW PROFILE OF CERAMIC SMD PRODUCTS FOR Pb FREE PROCESS

Reference Standard: JEDEC-STD 020

Test Conditions:

• Pre-heating: 150 to 200 , 60~120 sec
• Heating: 217 , 60~150 sec
• Peak Temperature: 2605 , 255 sec

Product Dimensions

(Refer to Page 7 for detailed dimensions)

Product Identification (Marking)

Procedure: LASER

Example Format: YWW XX.XXX MHz

• Y: Year of Manufacture (e.g., 7=2007, 8=2008)
• WW: Week No. (2 digits)
• XX.XXX MHz: Frequency Code (6 digits including decimal point)

Package Information

(Refer to Page 8 for Tape (Carrier) Dimensions, Direction of Packing, and Reel Dimensions)
