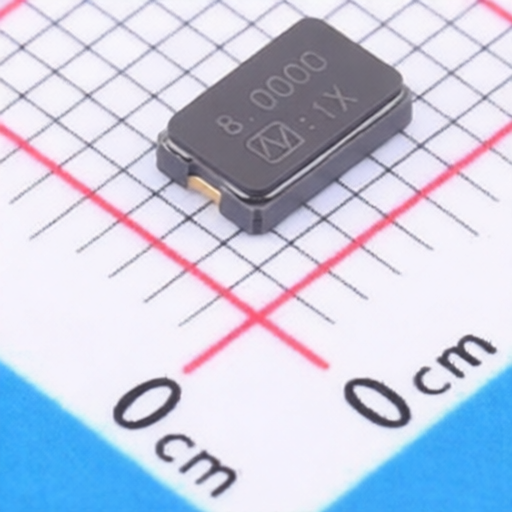

Quartz Crystal Unit NX5032GA-8MHZ-EXS00A-CG07039 Clock Generator with 8 Megahertz Frequency Precision
Quartz Crystal Unit NX5032GA-8MHZ-EXS00A-CG07039 Clock Generator with 8 Megahertz Frequency Precision
Specifications
Normal temperature Frequency Tolerance :
±20ppm
Frequency Stability :
±30ppm
Load Capacitance :
18pF
Operating Temperature :
-40℃~+85℃
Equivalent Series Resistance(ESR) :
300Ω
Frequency :
8MHz
Description :
Crystal 8MHz ±20ppm 18pF 300Ω SMD5032-2P
Mfr. Part # :
NX5032GA-8MHZ-EXS00A-CG07039
Model Number :
NX5032GA-8MHZ-EXS00A-CG07039
Package :
SMD5032-2P
Description

Product Overview

The NX5032GA-8MHz-EXS00A-CG07039 is a quartz crystal unit from NDK, designed as a clock generator. It features a nominal frequency of 8.000 MHz and is suitable for applications requiring precise frequency control over a wide operating temperature range.

Product Attributes

  • Brand: NDK
  • Chipset Maker: NDK
  • Application: Clock Generator
  • Part Number: NX5032GA-8MHz-EXS00A-CG07039
  • Series: PI-Network

Technical Specifications

NDK Part NumberChipset NameNominal Frequency (fnom)Frequency toleranceFrequency versus temperature characteristicsEquivalent Series Resistance (Rr)Operating temperature range (Topr)Storage temperature range (Tstr)Insulation resistanceLoad capacitance (CL)Air-tightnessOvertone orderDrive Level
NX5032GA-8MHz-EXS00A-CG07039NX5032GA8.000 MHz-30 to +30 ppm-40 to +85 C3.010^-9 -40 to +85 C-40 to +85 C 500 M18 pFHelium leak detectorFundamental500 mW

2409302232_NDK-NX5032GA-8MHZ-EXS00A-CG07039_C1986270.pdf
