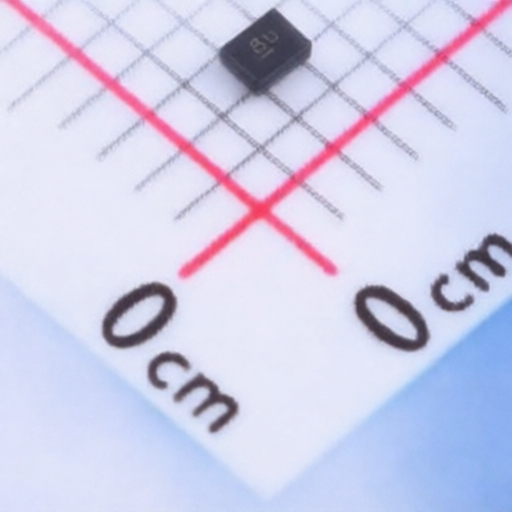

2410 MHz SAW Filter TST TA1913A with Group Delay Ripple 16 Nanoseconds Typical and RoHS Compliance
2410 MHz SAW Filter TST TA1913A with Group Delay Ripple 16 Nanoseconds Typical and RoHS Compliance
Specifications
Attenuation :
38dB;39dB;3dB;37dB;40dB
Description :
SMD3030-6P SAW Filters RoHS
Mfr. Part # :
TA1913A
Model Number :
TA1913A
Package :
SMD3030-6P
Description

TAI-SAW TECHNOLOGY CO., LTD. SAW Filter 2410 MHz

This document outlines the specifications for the TAI-SAW TECHNOLOGY CO., LTD. SAW Filter, model number TA1913A. Designed for applications requiring precise frequency filtering at 2410 MHz, this Surface Acoustic Wave (SAW) filter is presented in a compact 1.4x1.1 mm SMD package with a bandwidth of 20 MHz. It is RoHS compliant and lead-free.

Product Attributes

  • Brand: TAI-SAW TECHNOLOGY CO., LTD.
  • Origin: Taiwan, R.O.C.
  • Certifications: RoHS Compliant, Lead free

Technical Specifications

Model No. Rev. No. Center Frequency (Fc) Insertion Loss (IL) Amplitude Ripple VSWR Group Delay Ripple Attenuation (1940~1945 MHz) Attenuation (2065~2068 MHz) Attenuation (2350~2360 MHz) Attenuation (2440 MHz) Attenuation (2555~3600 MHz) Temperature Coefficient of Frequency Max. Input Power DC Voltage Operating Temperature Storage Temperature
TA1913A 1 2410 MHz 3.2 dB (Typ.) 1.5 dB (Typ.) 1.5 (Typ.) 16 ns (Typ.) 34 dB (Min.) 35 dB (Min.) 2 dB (Min.) 15 dB (Min.) 35 dB (Min.) -36 ppm/k (Typ.) 13 dBm 5 V -30C to +65C -40C to +85C

Additional Information

  • Termination Impedance: Zs = 50 , ZL = 50
  • Package Dimensions: 1.4x1.1 mm SMD
  • Measurement Circuit: RoHS Compliant, Lead-free soldering
  • Recommended Reflow Profile: Preheating 150~180 (60~90s), Heating 220 (50~80s), Peak 260+0/-5 (20~40sec)

2507171508_TST-TA1913A_C45335486.pdf
