HCPL0600R2​ High Speed 10MBit/S Logic Gate Optocouplers SOP8 White
HCPL0600R2​ High Speed 10MBit/S Logic Gate Optocouplers SOP8 White
HCPL0600R2​ High Speed 10MBit/S Logic Gate Optocouplers SOP8 White
HCPL0600R2​ High Speed 10MBit/S Logic Gate Optocouplers SOP8 White
HCPL0600R2​ High Speed 10MBit/S Logic Gate Optocouplers SOP8 White
HCPL0600R2​ High Speed 10MBit/S Logic Gate Optocouplers SOP8 White
HCPL0600R2​ High Speed 10MBit/S Logic Gate Optocouplers SOP8 White
HCPL0600R2​ High Speed 10MBit/S Logic Gate Optocouplers SOP8 White
Specifications
Brand Name :
FAIRCHILD
Model Number :
HCPL0600R2
Certification :
CE/ RoHS
Place of Origin :
USA
MOQ :
10pcs
Price :
To be negotiated
Payment Terms :
T/T, Western Union ,paypal
Supply Ability :
10,000PCS
Delivery Time :
in stock 2-3days
Packaging Details :

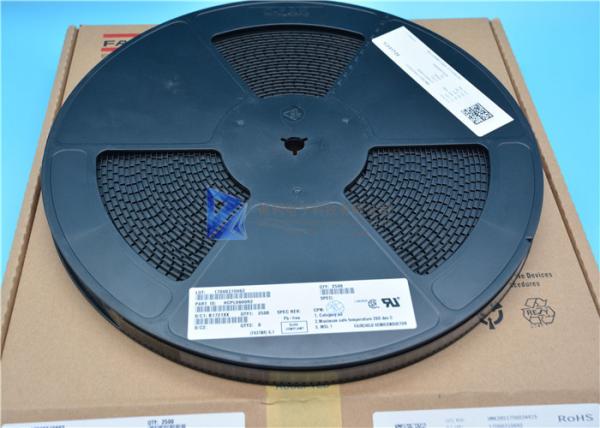

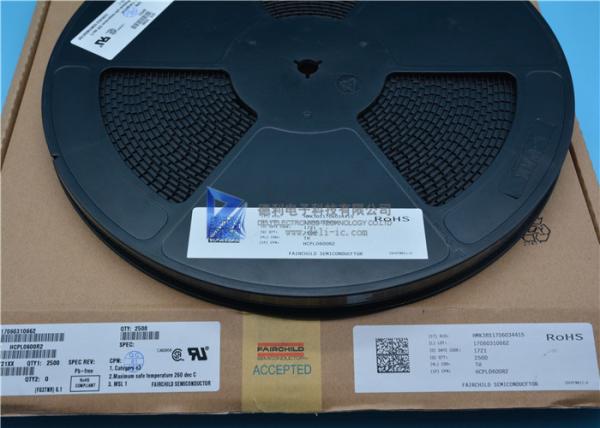

2500PCS/Reel
PN :
HCPL0600R2
Brand :
FAIRCHILD
Original :
USA
Package :
SOP8
Type :
High Speed Logic Gate Optocouplers
Speed :
10 MBit/s
Description

HCPL0600R2​ High Speed-10 MBit / s Logic Gate Optocouplers SOP8 White

Features
■ Compact SO8 package
■ Very high speed-10 MBit/s
■ Superior CMR
■ Logic gate output
■ Strobable output (single channel devices)
■ Wired OR-open collector
■ U.L. recognized (File # E90700)
■ VDE approval pending
Applications
■ Ground loop elimination
■ LSTTL to TTL, LSTTL or 5-volt CMOS
■ Line receiver, data transmission
■ Data multiplexing
■ Switching power supplies
■ Pulse transformer replacement
■ Computer-peripheral interface

Description
The HCPL06XX optocouplers consist of an AlGaAS LED, optically coupled to a very high speed integrated
photo-detector logic gate with a strobable output (single channel devices).
The devices are housed in a compact small-outline package.
This output features an open collector, thereby permitting wired OR outputs.
The HCPL0600, HCPL0601 and HCPL0611 output consists of bipolar transistors on a bipolar process
while the HCPL0637, HCPL0638, and HCPL0639 output consists of bipolar transistors on a CMOS
process for reduced power consumption. The coupled parameters are guaranteed over the temperature range of -40°C to +85°C.
An internal noise shield provides superior common mode rejection.

Applications
Energy Generation & Distribution
Industrial Motor
Uninterruptible Power Supply

HCPL0600R2​ High Speed 10MBit/S Logic Gate Optocouplers SOP8 White
