MMSZ4688 Zener General Purpose Rectifier Diode 4.7V 500mW ± 5% Surface Mount
MMSZ4688 Zener General Purpose Rectifier Diode 4.7V 500mW ± 5% Surface Mount
MMSZ4688 Zener General Purpose Rectifier Diode 4.7V 500mW ± 5% Surface Mount
MMSZ4688 Zener General Purpose Rectifier Diode 4.7V 500mW ± 5% Surface Mount
Specifications
Brand Name :
ECHIP
Model Number :
MMSZ4688
Place of Origin :
CHINA
MOQ :
10 PCS
Price :
Negotiation
Payment Terms :
T/T, Western Union ， ESCROW
Supply Ability :
100000PCS
Delivery Time :
STOCK

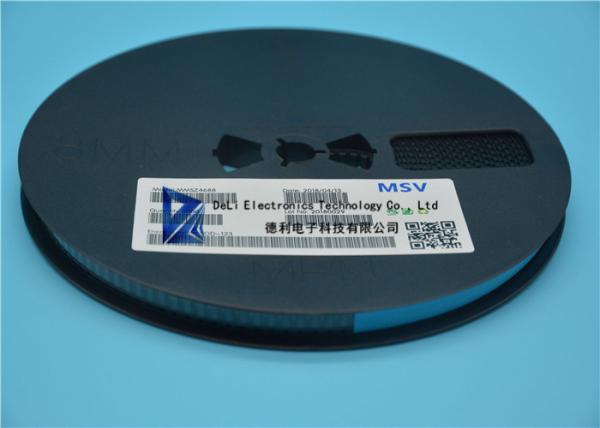

Packaging Details :
REEL
Categories :
Diodes - Zener - Single
Voltage - Zener (Nom) (Vz) :
4.7V
Tolerance :
±5%
Power - Max :
500mW
Current - Reverse Leakage @ Vr :
10µA @ 3V
Voltage - Forward (Vf) (Max) @ If :
950mV @ 10mA
Operating Temperature :
150°C
Package :
SOD-123
Description

MMSZ4688 General Purpose Rectifier Diode Zener Diode 4.7V 500mW ±5% Surface Mount

Features

Zener Voltage1.8V-39V

x Very Sharp Reverse Characteristic

x VZ – tolerance ± 5%

x High Reliability
• Epoxy meets UL 94 V-0 flammability rating

• Moisture Sensitivity Level 1


Mechanical Data

• Halogen free available upon request by adding suffix "-HF"
x Polarity: Cathode indicated by polarity band
Lead Free Finish/RoHS Compliant ("P" Suffix designates RoHS Compliant. See ordering information)

Product Attributes Select All
Categories Discrete Semiconductor Products
　 Diodes - Zener - Single
Manufacturer Micro Commercial Co
Series -
Packaging Tape & Reel (TR)
Part Status Active
Voltage - Zener (Nom) (Vz) 4.7V
Tolerance ±5%
Power - Max 500mW
Current - Reverse Leakage @ Vr 10µA @ 3V
Voltage - Forward (Vf) (Max) @ If 950mV @ 10mA
Operating Temperature 150°C
Mounting Type Surface Mount
Package / Case SOD-123

MMSZ4688 Zener General Purpose Rectifier Diode 4.7V 500mW ± 5% Surface Mount

Deli electronics tehcnology co ltd
www.icmemorychip.com
Email:sales3@deli-ic.com
Skype:hkdeli881
TEL:86-0755-82539981
