High-Speed Fully Automatic Solution for Chocolate-Filled Mini Sugar Cones, Automatic Rolled Sugar Cone Baking Machine




----------------------------------------------------------Machine Introduction--------------------------------------------------------------

The SD80-R69x3 mini sugar cone baking machine is a high-efficiency, fully automatic production system specially designed for manufacturing small-size sugar cones used for chocolate filling and snack products.

Unlike standard ice cream cones, mini cones require higher precision, faster production speed, and consistent quality for filling processes. This machine is engineered to meet these demands, making it an ideal choice for confectionery manufacturers and industrial snack producers.

With a production capacity of 10,000–11,000 pcs per hour, it delivers both high output and stable performance for large-scale operations.

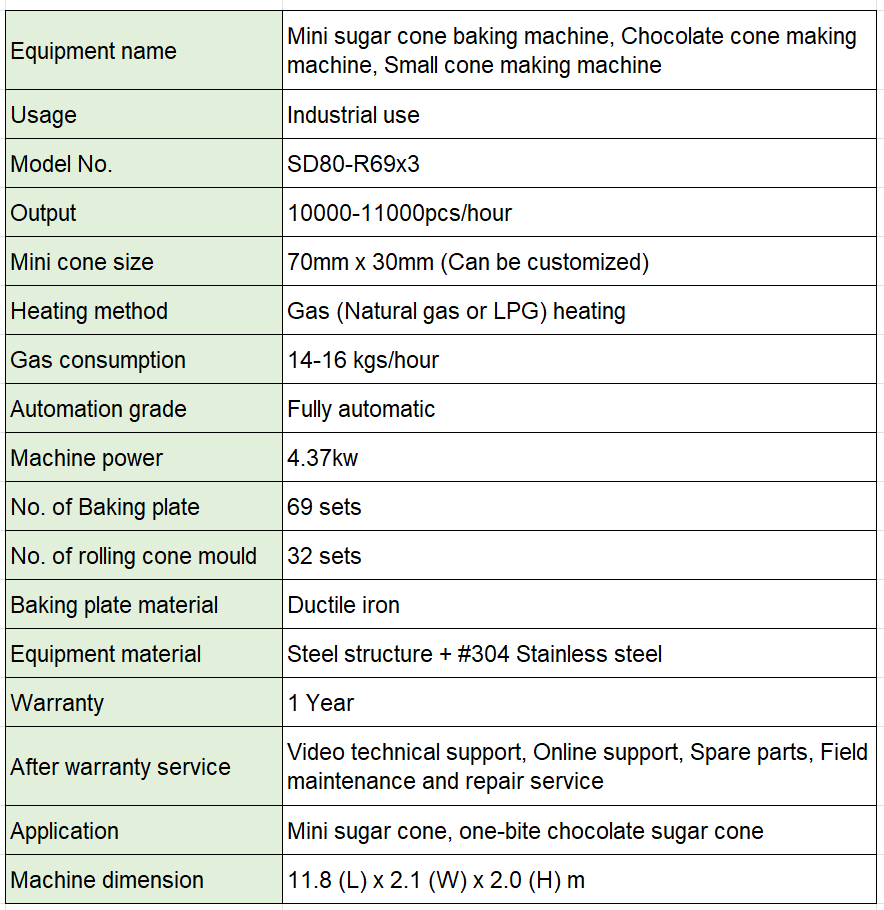

-------------------------------------------------------------Technical Data---------------------------------------------------------------------

---------------------------------------Designed for Mini Cones Used in Chocolate Filling----------------------------------------

⭐Mini sugar cones are widely used in:

• Chocolate-filled cone snacks
• Bite-size dessert products
• Ready-to-eat confectionery items
• Retail snack packaging

⭐These applications require:

• Uniform cone shape for filling machines
• Strong structure to hold chocolate or cream
• Consistent size for automated packaging

The SD80-R69x3 model is optimized to meet all these production requirements.

------------------------------------------------------Mini Sugar Cone Specification-----------------------------------------------------

Mini Sugar Cone Specification

Mini cone length: 70mm±2mm

Mini cone diameter: 29mm±1mm

Application: Chocolate filling, one-bite chocolate cone, chocolate filled cone

-----------------------------------------------------Key Advantages of SD80-R69x3----------------------------------------------------

1. High-Speed Production up to 11,000 pcs/hour

This machine is designed for mass production, ensuring stable output even under continuous operation. It is suitable for factories targeting high-volume snack production.

2. Precision for Small-Size Cones

Mini cones are more sensitive to deformation and inconsistency. The machine ensures:
✅ Accurate forming
✅ Even baking thickness
✅ Uniform edge cutting

This is critical for downstream chocolate filling lines.

3. Fully Automatic Operation

The system integrates:
✅ Batter feeding
✅ Baking
✅ Cone rolling and forming
✅ Automatic demoulding
✅ Cone stacking and conveying

This reduces labor costs and improves production efficiency.

4. Stable and Durable Structure

Built with industrial-grade components (Steel structure, #304 Stainless steel, Ductile iron baking plate, Tin bronze cone mould), the machine ensures long-term stability and reduced maintenance, even under high-speed operation.

---------------------------------------------------------------Working Process---------------------------------------------------------------

The SD80-R69x3 operates through a synchronized automatic workflow:

1. Pre-mixed batter is pumped from batter tank to the baking plates.
2. Plates are heated evenly to form thin, uniform wafer sheets.
3. Baked wafer sheets are rolled and form to mini sugar cone shape.
4. Finished cones are discharged for cooling and conveying.
5. Finished cones are stacking and counting automatically.

This continuous process ensures high efficiency and consistent product quality.

-------------------------------------------------------------------------------Technical Highlights------------------------------------------------------------

✅ Output capacity: 10,000–11,000 pcs/hour

✅ Special mold design for mini cones (Specific copper material and high

✅ Adjustable baking temperature and speed

✅ High-precision forming system

✅ Energy-efficient heating system

(Detailed specifications can be customized based on requirements.)

----------------------------------------------Applications in the Confectionery Industry--------------------------------------------

This machine is widely used by:

• Chocolate manufacturers
• Snack food factories
• OEM/ODM confectionery producers
• Export-oriented food processing companies

It is especially suitable for businesses targeting:

• Supermarket snack products
• Branded chocolate cone items
• High-volume retail packaging

------------------------------------------------------------------------FAQ------------------------------------------------------------------------

Q: What is the capacity of the SD80-R69x3 mini cone machine?
A: The capacity is approximately 10,000–11,000 pcs per hour, depending on product size and operating conditions.

Q: Can this machine be used for chocolate-filled cones?
A: Yes, it is specifically designed for producing mini cones suitable for chocolate and cream filling.

Q: What is the price of a mini sugar cone baking machine?
A: The price depends on configuration, customization, and production requirements. Please contact us for a quotation.
