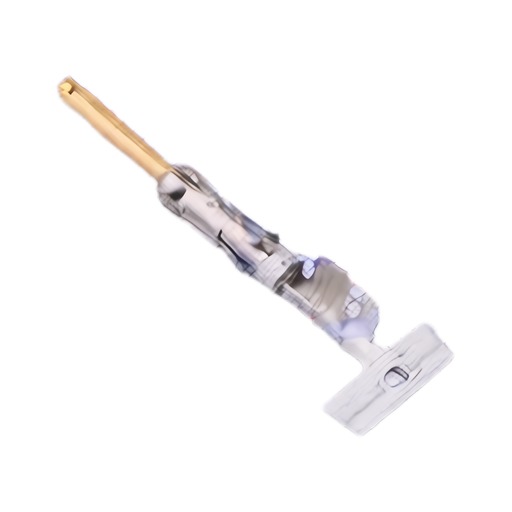

TE Connectivity 1-66359-0
TE Connectivity 1-66359-0
Specifications
Packaging Details :
-
Contact Material :
Brass
MOQ :
1
Delivery Time :
1 working day
Contact Plating :
Gold
Brand Name :
1-66359-0
Stock :
3750
Model Number :
1-66359-0
Description :
Connector Terminal Gold Crimp
Insulation OD :
2.03mm~2.54mm
Description

Product Overview

This is a Size 16 Pin Contact designed for power and signal applications. It features a brass base material with precious metal plating in the mating area and tin plating in the termination area. The contact is suitable for crimp termination to wires ranging from 18-14 AWG or 0.8-2 mm. It offers robust wire insulation support and is designed for a straight contact orientation.

Product NamePin Contact, Precious Metal, Size 16
BrandAMP
SeriesType III+
Contact SizeSize 16
Contact TypePin
Base MaterialBrass
Mating Area Plating MaterialPrecious Metal
Termination Area Plating MaterialTin
Underplating MaterialNickel
Wire Size (AWG)18 14 AWG
Wire Size (mm)0.8 2 mm
Termination MethodCrimp
Wire Insulation SupportWith
Operating Temperature Range-55 150 C [-67 302 F]
Contact Current Rating (Max)13 A
Packaging Quantity4000
Packaging MethodReel, Reverse Reel
EU RoHS Directive2011/65/EU Compliant
EU ELV Directive2000/53/EC Compliant
China RoHS DirectiveMIIT Order No 32, 2016 No Restricted Materials Above Threshold
EU REACH RegulationCurrent ECHA Candidate List: JUNE 2023 (235) Declared Against: JUNE 2023 (235) Does not contain REACH SVHC
Halogen ContentLow Halogen - Br, Cl, F, I < 900 ppm per homogenous material. Also BFR/CFR/PVC Free

Technical Specifications

Part NumberContact SizeWire Size (AWG)Wire Size (mm)Termination MethodMating Pin DiameterContact Underplating Material ThicknessWire Contact Termination Area Plating ThicknessContact Mating Area Plating Material ThicknessCompatible Insulation Diameter RangeCircuit ApplicationContact Retention Within Housing
1-66359-0Size 1618 14 AWG.8 2 mmCrimp1.57 mm [.062 in]1.27 m [50 in] Nickel1.27 m [50 in].76 m [30 in]2.03 2.54 mm [.08 .1 in]Power & SignalWith
