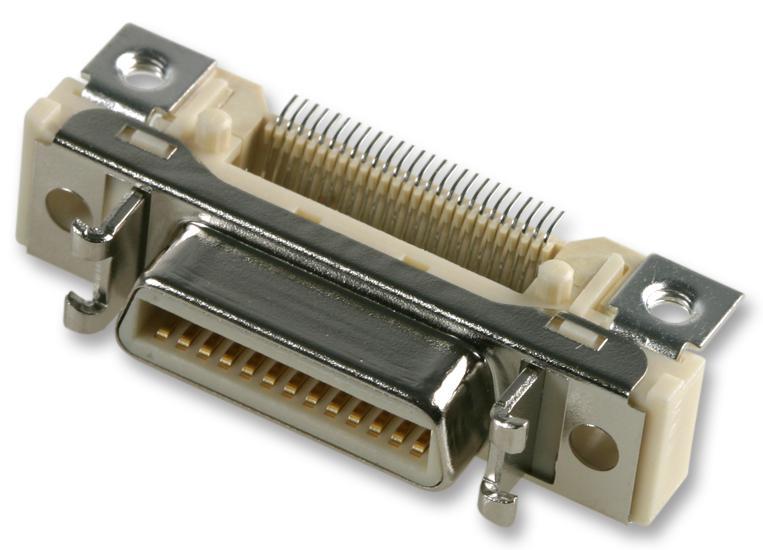

3M 10226-1210PE
3M 10226-1210PE
3M 10226-1210PE
3M 10226-1210PE
3M 10226-1210PE
3M 10226-1210PE
Specifications
Connector Type :
Female
Stock :
250
Operating Temperature :
-55℃~+105℃
Mounting Type :
Right Angle
MOQ :
1
Delivery Time :
1 working day
Brand Name :
10226-1210PE
Model Number :
10226-1210PE
Packaging Details :
SMD
Interface Form :
SCSI
Number of Pins :
26P
Description :
26P Right Angle SMD Centronics Connectors RoHS
Description

Product Overview

The 3M Mini D Ribbon (MDR) Connectors 102 Series are shielded, .050 surface mount right-angle receptacles designed for reliable repetitive plugging and high data rate transmission. Featuring an interface latch for connection stability, these connectors are ideal for digital LCD interfaces and come in various contact quantities. They offer robust electrical and environmental performance, with a temperature rating of -55C to +105C and a process rating of 260C.

Product Attributes

  • Brand: 3M
  • Product Line: Mini D Ribbon (MDR) Connectors
  • Series: 102 Series
  • Type: .050 Surface Mount Right Angle Receptacle - Shielded
  • Insulation Material: Glass Reinforced Polyester (PCT)
  • Insulation Color: Beige
  • Contact Material: Copper Alloy
  • Underplating: 80 [ 2.0 m ] Nickel
  • Wiping Area Plating: 20 [ 0.50 m ] Min. Gold
  • Solder Tail Plating: Gold Flash over Nickel (RIA E1 & C1 apply)
  • Shroud and Latch Hook Material: Steel
  • Shroud and Latch Hook Plating: Nickel
  • Grounding Flange Screw Lock Material: Copper Alloy
  • Grounding Flange Screw Lock Plating: Tin
  • Marking: 3M Logo and Part Number
  • Certifications: UL File No.: E68080
  • RoHS Compliance: RoHS Compliant 2005/95/EC (with specific exemptions for lead in compliant pin, solder tail, and decaBDE in insulating material as detailed in the Regulatory Information Appendix).
  • Origin: Printed in USA

Technical Specifications

Feature Specification
Contact Material Copper Alloy
Insulation Material Glass Reinforced Polyester (PCT)
Flammability UL 94V-0
Current Rating 1 A
Insulation Resistance > 5 108 at 500 VDC
Withstanding Voltage 500 VRMS for 1 Minute
Temperature Rating -55C to +105C
Process Rating 260C (profile per J-STD-020C)
Contact Quantities Available 14, 20, 26, 40, 50
Contact Pitch .050
Mounting Type Surface Mount Right Angle
Shielding Shielded
Key Features Wiper-on-wiper contact, Ultra-low signal skew, Interface latch design

Dimensions (for reference only, tolerances apply)

Contact Quantity Dimension A (inch [mm]) Dimension B (inch [mm]) Dimension C (inch [mm]) Dimension D (inch [mm]) Dimension E (inch [mm])
14 1.16 [ 29.5 ] .931 [ 23.64 ] .500 [ 12.70 ] .325 [ 8.26 ] .496 [ 12.6 ]
20 1.32 [ 33.4 ] 1.081 [ 27.45 ] .650 [ 16.51 ] .475 [ 12.07 ] .646 [ 16.4 ]
26 1.50 [ 38.2 ] 1.231 [ 31.26 ] .800 [ 20.32 ] .625 [ 15.88 ] .795 [ 20.2 ]
40 1.85 [ 47.1 ] 1.581 [ 40.15 ] 1.150 [ 29.21 ] .975 [ 24.77 ] 1.150 [ 29.2 ]
50 2.06 [ 52.4 ] 1.831 [ 46.50 ] 1.400 [ 35.56 ] 1.225 [ 31.12 ] 1.398 [ 35.5 ]

Ordering Information

Part Number Example: 102XX-1210PE (XX denotes contact quantity)

Mounting screws (M2.5x8 mm) for panel thickness up to .079 [ 2.0 ] recommended.
