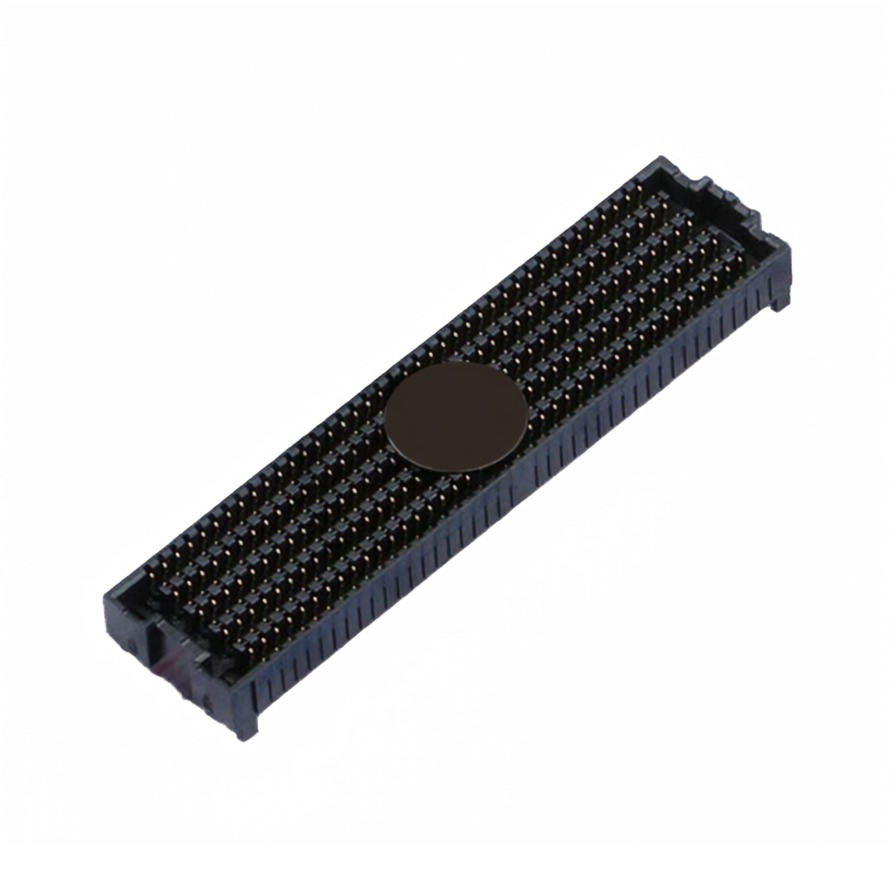

Samtec ASP-134486-01
Samtec ASP-134486-01
Specifications
Delivery Time :
1 working day
Number of Pins :
400P
Model Number :
ASP-134486-01
Brand Name :
ASP-134486-01
Pitch :
1.27mm
Packaging Details :
P=1.27mm
Contact Plating :
Gold
Mounting Type :
Surface Mount,Vertical
MOQ :
1
Stock :
166
Number of Rows :
10
Description :
10 400P 1.27mm Surface Mount,Vertical P=1.27mm Arrays, Edge Type, Mezzanine (Board to Board) RoHS
Description

Product Overview

This product is a 050 pitch socket array assembly designed for various electronic applications. It utilizes high-quality materials and precision engineering for reliable performance.

Brand

Samtec

Origin

USA

Certifications

UL 94 VO

Package Type

Tape & Reel

Item No. Part Number Quantity Material Contact Area Notes
1 SEAF-40-06.5-10-A 1.0000 LCP, UL 94 VO, Black 0.000030" Gold over 0.000050" Nickel VITA 57 Connector
2 NEW-SUB-C-209-06.5-5-2 40000 Copper Alloy, Lead Free Solder 0.000030" Gold over 0.000050" Nickel Critical Dimension (O)
3 K-DOT-.404-.500-.005 1.0000 Polyimide Film Remainder: 0.00200" Tin over 0.000050" Nickel Minimum Pushout Force: 0.50 LBS
4 CT-SEAF028MS 00500 Conductive Polymer Dimension C12 measured in four outside corners using inspection fixture AT-1817-836-2
5 SEAX-0001 00500 Label Attach Label "SEAX-001" to Tape & Reel Package
Dimension Value (mm) Value (in) Tolerance (mm) Tolerance (in) Note
Overall Length 49.53 1.950 REF
Overall Width 56.62 2.229 REF
Pitch 1.27 0.050 TYP
Contact Width 0.84 0.033 REF
Row Spacing 3.96 0.156 REF
Solder Charge Volume 0.0000891 CUBIC INCHES REF
Pad Size (Surface Mount) 2.42 0.0955 2 PLC
PCB Layout Dimension 54.38 2.141 REF
Stencil Thickness 0.152 0.0060 THICK
