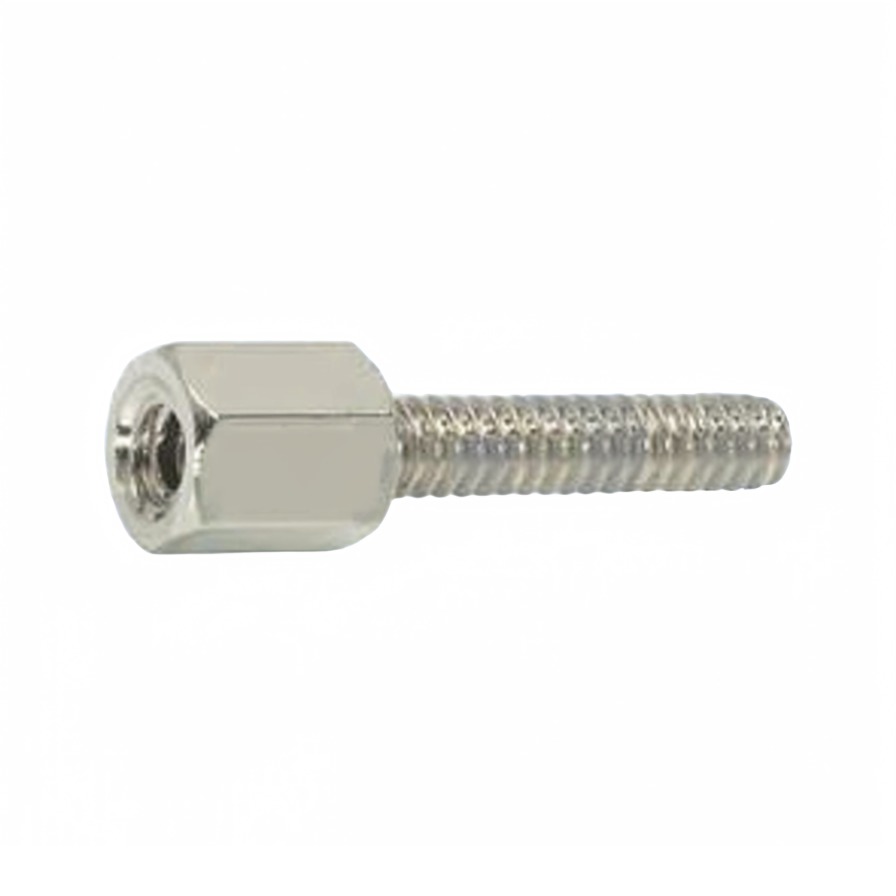

L-com SDG400
L-com SDG400
Specifications
Description :
D-Sub, D-Shaped Connector Accessories RoHS
Model Number :
SDG400
Brand Name :
SDG400
Delivery Time :
10-15 working days
Stock :
4470
Packaging Details :
-
MOQ :
11
Description

Product Information

This document contains technical specifications and dimensional data for L-COM D-Subminiature Jackscrews and associated hardware.

Brand

L-COM, INC.

Material

Jackscrew: Brass (Nickel Plated)
Hex Nut: Steel (Nickel Plated)
Lock Washer: Steel (Nickel Plated)

Certifications

4-40 UNC-2B

Packaging

Seal 50 Jackscrews, 50 Lock-Washers, and 50 Hex Nuts in accordance with L-COM Specification PS-0031.

Part Number Dim - A (in/mm) Dim - B (in/mm) Dim - C (in/mm) Dim - D (in/mm)
SDG250 2.32 [5.89] 2.50 [6.35] 0.193 [4.90] 0.205 [5.21]
SDG300 2.32 [5.89] 3.00 [7.62] 0.193 [4.90] 0.205 [5.21]
SDG400 2.32 [5.89] 0.400 [10.14] 0.193 [4.90] 0.205 [5.21]
SDG400S 0.197 [5.00] 0.400 [10.16] 0.154 [3.91] 0.166 [4.22]
SDG400XS 0.160 [4.06] 0.400 [10.16] 0.094 [2.39] 0.106 [2.70]
SDG450XS 0.160 [4.06] 0.450 [11.43] 0.094 [2.39] 0.106 [2.70]
SDG500 2.32 [5.89] 0.500 [12.70] 0.193 [4.90] 0.205 [5.21]
Product Description Thread Hex Nut Size Jackscrew Size Lock Washer Size
HEX NUT 4-40 UNC-2B 0.188+0.008 [4.76+0.20]
JACK-SCREW 4-40 UNC-2B 0.08+0.01 [2.03+0.25]
SPLIT LOCK-WASHER 4-40 UNC-2A 0.118+0.010 [3.00+0.25]
HEX NUT 4-40 UNC-2B 0.375 [9.53]
JACK-SCREW 4-40 UNC-2B 0.188+0.008 [4.76+0.20]
LOCK WASHER 0.05+0.02 [1.27+0.51]
