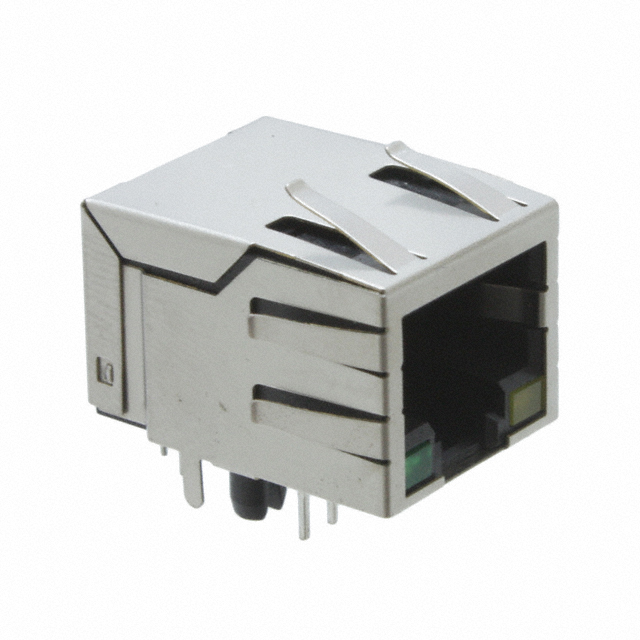

EDAC A63-112-331P422
EDAC A63-112-331P422
Specifications
Number of Ports :
1
Brand Name :
A63-112-331P422
Description :
1 Shielded With LED Through Hole Modular/Ethernet Connector Jacks RoHS
LED :
With LED
Delivery Time :
9-18 weeks
Shielding :
Shielded
Stock :
480000
Model Number :
A63-112-331P422
MOQ :
4800
Packaging Details :
Through Hole
Description

Product Overview

STANDARD RJ45 MAGNETIC JACKS designed for high-speed networking. These jacks offer 10/100/1000 Base T options with full IEEE 802.3 compliance. Key features include integrated magnetics for signal integrity, DC isolation, and PHY chip protection, reducing component inventory and process costs. Spring fingers on shells provide advanced EMI/RFI suppression. Available in Tab Up or Down configurations for board and unit compatibility, and as single or stacked multiport options. Mate with Modular Plugs Conforming to FCC Part 68, Subpart F. Applications include Telecommunications, Broadcast, and Data Products. RoHS Compliant.

Product Attributes

  • Brand: EDAC
  • Housing Material: Thermoplastic, UL 94V-0
  • Contact Material: Copper Alloy
  • Contact Plating: Gold Plating on contact area and Tin Plating on tails with Nickel underplating all over
  • Certifications: RoHS Compliant

Technical Specifications

SeriesDescriptionHousing MaterialContact PlatingConnector TypeShield TypeLED ColorsStorage TempWave Soldering
A6XSTANDARD RJ45 MAGNETIC JACKSThermoplastic, UL 94V-0Gold Plating on contact area and Tin Plating on tails with Nickel underplating all overRight Angle with Tab-Up/Down, Vertical with Tab-Up/Down, SMT with Tab-Up/DownShielded, with EMI Finger optionsNo LED, Red, Green, Yellow, Orange, Bi-Colors-40C to +85C260C 5C, 5~10 Seconds
A6010/100/1000 BASE T, 8 COREPBT Polyester, Nylon Polyester, LCPGold Flash, 15u" Gold, 30u" Gold, 50u" GoldRight Angle with Tab-Up/Down, Vertical with Tab-Up/Down, SMT with Tab-Up/DownNo Shield, Shielded with EMI Finger optionsNo LED, Red, Green, Yellow, Orange, Bi-Colors-40C to +85C260C 5C, 5~10 Seconds
A6210/100 BASE T, 2 COREPBT Polyester, Nylon Polyester, LCPGold Flash, 15u" Gold, 30u" Gold, 50u" GoldRight Angle with Tab-Up/Down, Vertical with Tab-Up/Down, SMT with Tab-Up/DownNo Shield, Shielded with EMI Finger optionsNo LED, Red, Green, Yellow, Orange, Bi-Colors-40C to +85C260C 5C, 5~10 Seconds
A6310/100 BASE T, 4 COREPBT Polyester, Nylon Polyester, LCPGold Flash, 15u" Gold, 30u" Gold, 50u" GoldRight Angle with Tab-Up/Down, Vertical with Tab-Up/Down, SMT with Tab-Up/DownNo Shield, Shielded with EMI Finger optionsNo LED, Red, Green, Yellow, Orange, Bi-Colors-40C to +85C260C 5C, 5~10 Seconds
A6410/100 BASE T, 5 COREPBT Polyester, Nylon Polyester, LCPGold Flash, 15u" Gold, 30u" Gold, 50u" GoldRight Angle with Tab-Up/Down, Vertical with Tab-Up/Down, SMT with Tab-Up/DownNo Shield, Shielded with EMI Finger optionsNo LED, Red, Green, Yellow, Orange, Bi-Colors-40C to +85C260C 5C, 5~10 Seconds
A6510 BASE T, 3 COREPBT Polyester, Nylon Polyester, LCPGold Flash, 15u" Gold, 30u" Gold, 50u" GoldRight Angle with Tab-Up/Down, Vertical with Tab-Up/Down, SMT with Tab-Up/DownNo Shield, Shielded with EMI Finger optionsNo LED, Red, Green, Yellow, Orange, Bi-Colors-40C to +85C260C 5C, 5~10 Seconds
A6610 BASE T, 4 COREPBT Polyester, Nylon Polyester, LCPGold Flash, 15u" Gold, 30u" Gold, 50u" GoldRight Angle with Tab-Up/Down, Vertical with Tab-Up/Down, SMT with Tab-Up/DownNo Shield, Shielded with EMI Finger optionsNo LED, Red, Green, Yellow, Orange, Bi-Colors-40C to +85C260C 5C, 5~10 Seconds
A6710/100 BASE T, POEPBT Polyester, Nylon Polyester, LCPGold Flash, 15u" Gold, 30u" Gold, 50u" GoldRight Angle with Tab-Up/Down, Vertical with Tab-Up/Down, SMT with Tab-Up/DownNo Shield, Shielded with EMI Finger optionsNo LED, Red, Green, Yellow, Orange, Bi-Colors-40C to +85C260C 5C, 5~10 Seconds
A6810/100 BASE T WITH USB TYPE APBT Polyester, Nylon Polyester, LCPGold Flash, 15u" Gold, 30u" Gold, 50u" GoldRight Angle with Tab-Up/Down, Vertical with Tab-Up/Down, SMT with Tab-Up/DownNo Shield, Shielded with EMI Finger optionsNo LED, Red, Green, Yellow, Orange, Bi-Colors-40C to +85C260C 5C, 5~10 Seconds
A69100/1000 BASE T WITH USB TYPE APBT Polyester, Nylon Polyester, LCPGold Flash, 15u" Gold, 30u" Gold, 50u" GoldRight Angle with Tab-Up/Down, Vertical with Tab-Up/Down, SMT with Tab-Up/DownNo Shield, Shielded with EMI Finger optionsNo LED, Red, Green, Yellow, Orange, Bi-Colors-40C to +85C260C 5C, 5~10 Seconds
A70100/1000 BASE T, POEPBT Polyester, Nylon Polyester, LCPGold Flash, 15u" Gold, 30u" Gold, 50u" GoldRight Angle with Tab-Up/Down, Vertical with Tab-Up/Down, SMT with Tab-Up/DownNo Shield, Shielded with EMI Finger optionsNo LED, Red, Green, Yellow, Orange, Bi-Colors-40C to +85C260C 5C, 5~10 Seconds
