L-com ATF-1700
L-com ATF-1700
Specifications
Delivery Time :
10-15 working days
Description :
Coaxial Connector (RF) Assemblies
Packaging Details :
-
Brand Name :
ATF-1700
MOQ :
2
Stock :
9
Model Number :
ATF-1700
Description

Product Overview

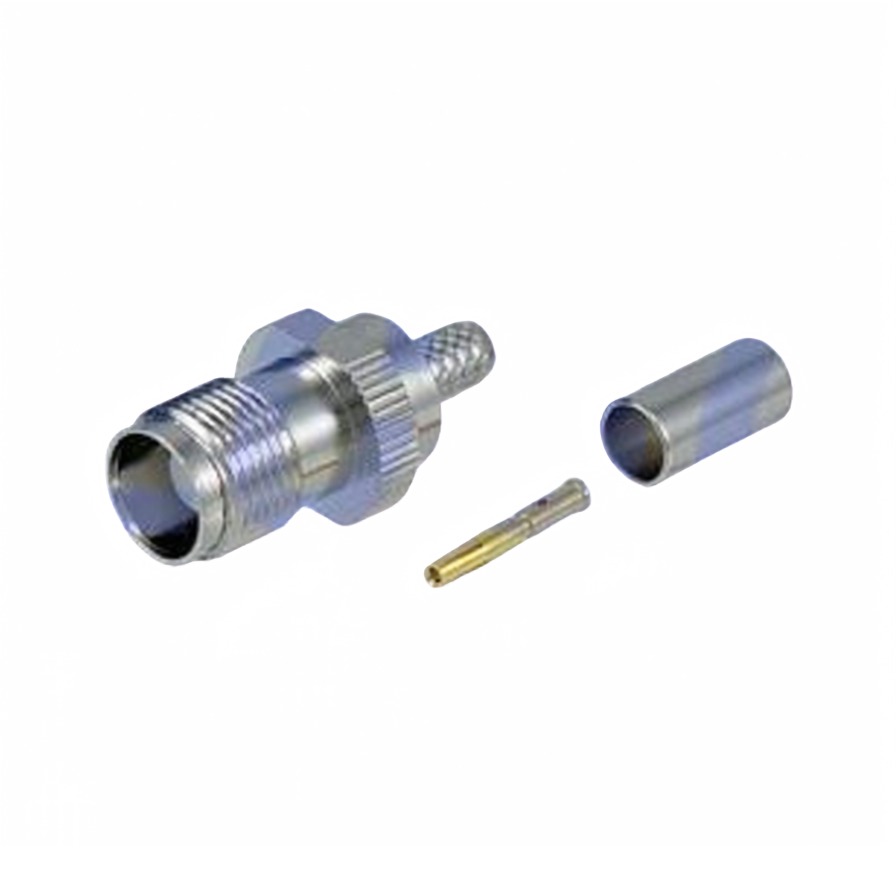

This TNC Straight Female Crimp Connector is designed for RF applications operating from 0 to 6 GHz with an impedance of 50 Ohms. It features a VSWR of less than 1.50 and is RoHS compliant, ensuring environmental responsibility. Recommended for use with RG58/LMR195 cables, it offers a durability of 500 cycles and cable retention of over 40 pounds.

Product Attributes

  • Brand: L-COM
  • Origin: NORTH ANDOVER, MA
  • Certifications: RoHS Compliant
  • Material & Finish:
    • Center Contact: Brass, Gold
    • Outer Contact: Brass, Nickel
    • Body: Brass, Nickel
    • Crimp Ferrule: Brass, Nickel
    • Insulator: Teflon

Technical Specifications

Specification Value
Frequency Range 0~6 GHz
Impedance 50 Ohms
VSWR < 1.50 @ 0~6 GHz
Withstand Voltage 1500V
Durability 500 Cycle
Cable Retention > 40 Pounds
Recommended Crimp Size (Ferrule) 1.50
Connector Type TNC Straight Female Crimp
Thread Size 7/16-28UNEF-2A
