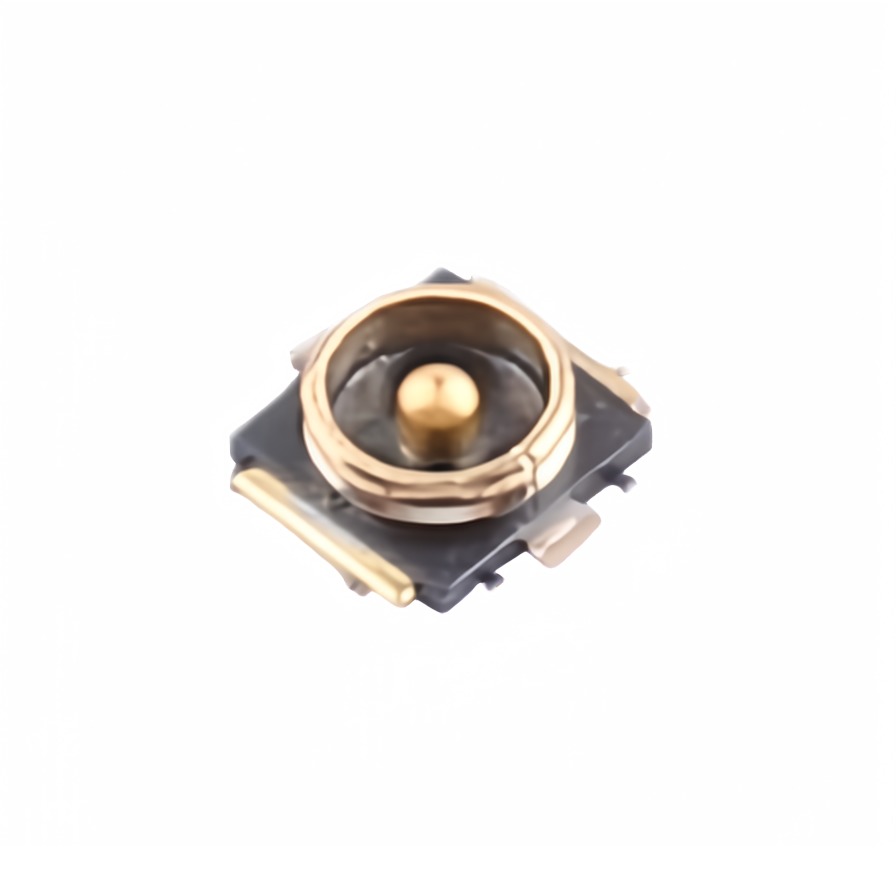

ECT ECT818000500
ECT ECT818000500
Specifications
MOQ :
10
Stock :
10048
Delivery Time :
1 working day
Brand Name :
ECT818000500
Impedance :
50Ω
Description :
Connector Receptacle IPEX Male Pin 50Ω Surface Mount
RF Series :
IPEX
Frequency :
6GHz
Model Number :
ECT818000500
Connector Type :
Board Side
Operating Temperature :
-40℃~+85℃
Interface Diameter :
1.5mm
Number of Ports :
1
Interface :
Male Pin
Packaging Details :
SMD
Description

Product Overview

The USS RF Receptacle (IV Generation) is a high-performance SMT-type micro coaxial RF connector designed for compact electronic devices. It provides reliable signal transmission for applications including mobile phones, Wireless LAN, Mini-PCI, Bluetooth, PDA, GPS, and electronic measuring instruments.

Product Series: USS RF Receptacle (IV Generation)
Part Number: 818000500
Manufacturer: ECT Shenzhen Electric Connector Technology
Packaging: Tape packing, 4000 Pcs/Reel (178mm)
ParameterSpecification
Voltage Rating60V AC (R.M.S)
Frequency RangeDC ~ 6 GHz
Characteristic Impedance50 5 Ohm
Operating Temperature-40C ~ +85C
Operating Humidity95% R.H. MAX
Insulation Resistance500 M Ohm (Initial) / 100 M Ohm (After test)
Contact Resistance (Inner/Outer)20 m Max (Initial/After)
Withstand Voltage200V AC (1 Min)
V.S.W.R1.3 Max (DC~3GHz); 1.4 Max (3~6GHz)
Un-mating Force4N Min (Initial); 2N Min (After 30 cycles)
