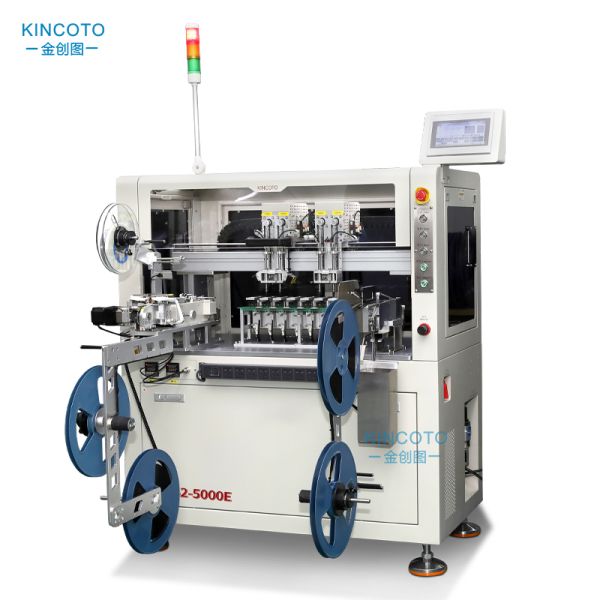

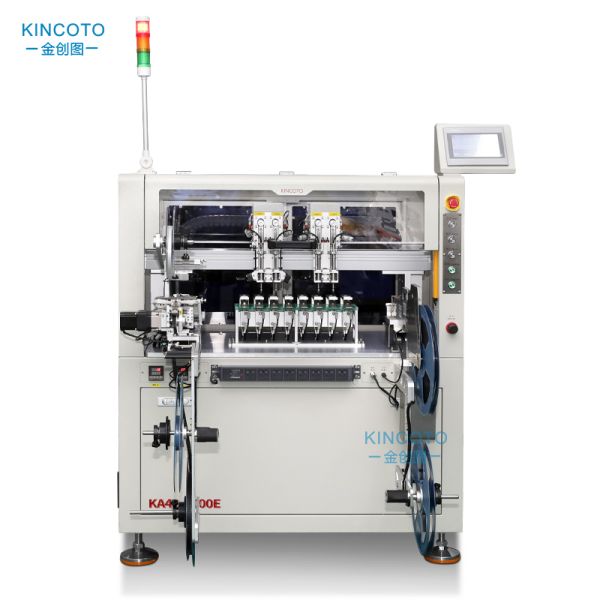

Model KA42-5000 Four-station Fully Automatic High-speed IC Programmer, Intelligent Chip Burning & Programming Equipment
Model KA42-5000 Four-station Fully Automatic High-speed IC Programmer, Intelligent Chip Burning & Programming Equipment
Model KA42-5000 Four-station Fully Automatic High-speed IC Programmer, Intelligent Chip Burning & Programming Equipment
Model KA42-5000 Four-station Fully Automatic High-speed IC Programmer, Intelligent Chip Burning & Programming Equipment
Model KA42-5000 Four-station Fully Automatic High-speed IC Programmer, Intelligent Chip Burning & Programming Equipment
Model KA42-5000 Four-station Fully Automatic High-speed IC Programmer, Intelligent Chip Burning & Programming Equipment
Model KA42-5000 Four-station Fully Automatic High-speed IC Programmer, Intelligent Chip Burning & Programming Equipment
Model KA42-5000 Four-station Fully Automatic High-speed IC Programmer, Intelligent Chip Burning & Programming Equipment
Model KA42-5000 Four-station Fully Automatic High-speed IC Programmer, Intelligent Chip Burning & Programming Equipment
Model KA42-5000 Four-station Fully Automatic High-speed IC Programmer, Intelligent Chip Burning & Programming Equipment
Model KA42-5000 Four-station Fully Automatic High-speed IC Programmer, Intelligent Chip Burning & Programming Equipment
Model KA42-5000 Four-station Fully Automatic High-speed IC Programmer, Intelligent Chip Burning & Programming Equipment
Model KA42-5000 Four-station Fully Automatic High-speed IC Programmer, Intelligent Chip Burning & Programming Equipment
Model KA42-5000 Four-station Fully Automatic High-speed IC Programmer, Intelligent Chip Burning & Programming Equipment
Model KA42-5000 Four-station Fully Automatic High-speed IC Programmer, Intelligent Chip Burning & Programming Equipment
Model KA42-5000 Four-station Fully Automatic High-speed IC Programmer, Intelligent Chip Burning & Programming Equipment
Specifications
MOQ :
1
Delivery Time :
7
Payment Terms :
T/T
Pick-and-place device :
2 vacuum nozzles
Model Number :
KA42-5000
Brand Name :
Kincoto
Supply Ability :
10000
Output efficiency :
6500UPH
Price :
14512
Packaging Details :
Wood
Certification :
CE
Place of Origin :
Guangdong
Description
Key Features
  1. Support IC incoming materials to be packaged in tape, enabling tape in and out, and automatically packaged after programming is completed.
  2. Optional dotting function, simple and convenient operation, easy to use.
  3. Capacity 6500UPH, 8 programming stations. Customize 1-8 programming stations to start, automatically distinguish OK and NG.
  4. The programming plan can be stored, accessed for programming at any time, and the corresponding programming socket can be replaced by different packages.

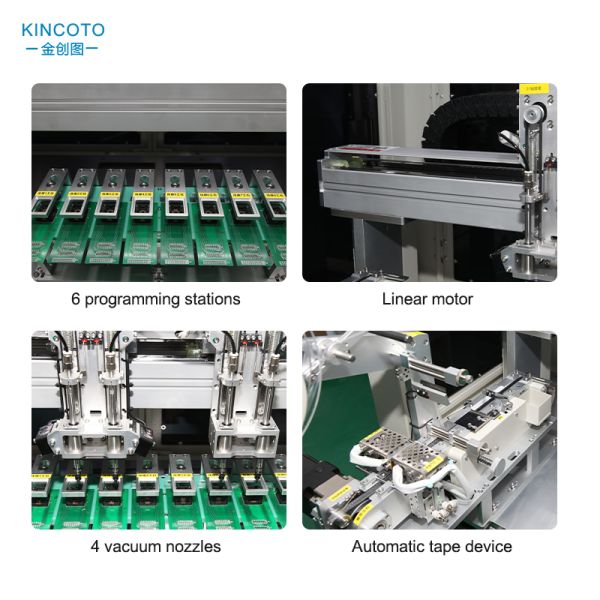

Flexibility & Adaptability

It can accommodate four programming sockets (the size of the programming sockets depends on the chip package).

When replacing chips with different packages, for chips of the same brand, only the socket size needs to be changed. For different brands, only the programmer and programming socket need to be changed, which is simple and convenient.

Marking & Dotting Function

Chip for marking and dotting function

A dot function can be added when the tape is woven out.(Red, blue, yellow, green, orange)

Technical Specifications
output efficiency 6500UPH
Overall size 1150*1080*1450mm
Supports ic packaging QFP/QFN/SOP/SSOP/TSSOP....
Programmming station 8 stations
pick-and-place device 4 vacuum nozzles
Monitor 7"LCD
Pick and place accuracy 0.03mm
Control mode PLC
X-axis Linear motor
programming mode Lower preassure socket
Feeding device Standard 12-16mm optional 8-32mm feeder
Input voltage AC220/50HZ
power 0.25kw
Toal weight 255kg
