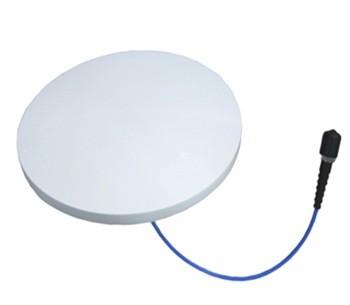

5G Indoor Wide Band Omni Directional Cellular Antenna 698MHz - 4000MHz Frequency
5G Indoor Wide Band Omni Directional Cellular Antenna 698MHz - 4000MHz Frequency
Specifications
Brand Name :
ZD
Model Number :
ZD-OCA-740-2/7NF
Certification :
RoHS
Place of Origin :
china
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Connector Type: :
N-Female
Frequency Range: :
698-4000MHz
Max Power: :
50 W
Gain: :
2/6dBi
PIM(IM3): :
≤-150dBc @ 2x2W
Polarization Type: :
Horizontal polarization
Description

5G Products Indoor Wide band Omni Antenna coverage 698MHz - 4000MHz directional ultra-thin ceiling antenna

Electrical Specifications
Item No. AI698-4000H06i360A
Frequency Range MHz 698-806 806-960 1710-2700 3400-4000
Gain dBi 2.2±0.5 3.5±0.5 4.5±1.0 6.0±1.0
Polarization Horizontal
VSWR ≤1.5 ≤1.5 ≤1.5 ≤1.5
PIM, 3rd Order, 2 x 20 W, dBc ≤-153
Input Power, maximum watts 50
Impedance ohm 50
Mechanical Specification
Connector Type N-female
Size mm Φ220×18
Antenna Weight kg 0.3
Mounting Kit Ceiling, via hole (standard)
Radome Material and Color ABS, White, RAL9003
Operational Temperature oC -55~60
Operational Humidity % < 95
Ingression protection IP65

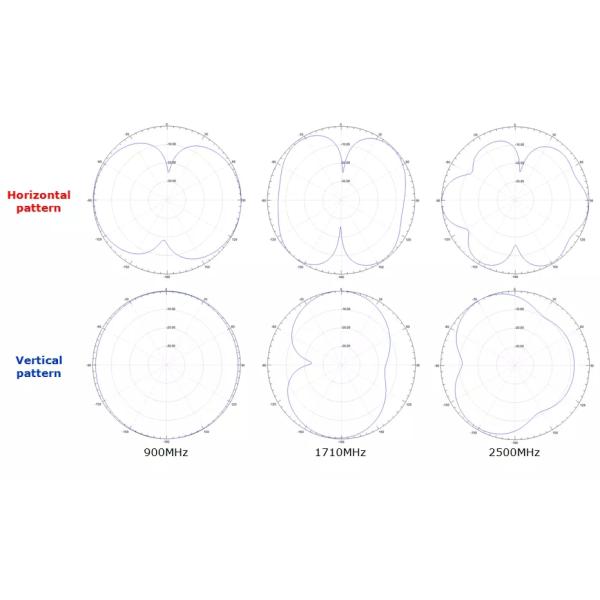

Radiation Pattern

5G Indoor Wide Band Omni Directional Cellular Antenna 698MHz - 4000MHz Frequency

Features and Product Description

Wideband Omni Antenna , coverage 698MHz - 4000MHz .

· Typically both used in indoor distribution of GSM/CDMA WIFI/3G/LTE/5G services.

· Low return loss,Stable performance.

· Compact, light-weight and easy to install.

· Supplied with mounting clamp.

· PIM<-153dBc @ 2x20 W.N-female
