Lamp Type Beautification Antenna / Community Beautification Antenna High Gain
Lamp Type Beautification Antenna / Community Beautification Antenna High Gain
Specifications
Brand Name :
ZD
Model Number :
ZD-LAMP-825-7/9NF
Certification :
Rohs
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500pcs per day
Gain: :
7/9
VSWR: :
1.5
Connector: :
N-Female
Bandwidth: :
136/790MHz
Max power :
100W
Impedance :
50Ω
Description

Lamp type beautification antenna Community beautification antenna High gain beautification antenna

Lamp Type Beautification Antenna / Community Beautification Antenna High GainLamp Type Beautification Antenna / Community Beautification Antenna High Gain

Application

1) Long distance Signal Transmission

2) Wireless Bridge

3) Widely used for residential area and square

4) Lighting

Good Performance and Running characteristic

1) High gain antenna with excellent SWR

2) Good outlook and Nice design

3) Anti-interference performance is perfect

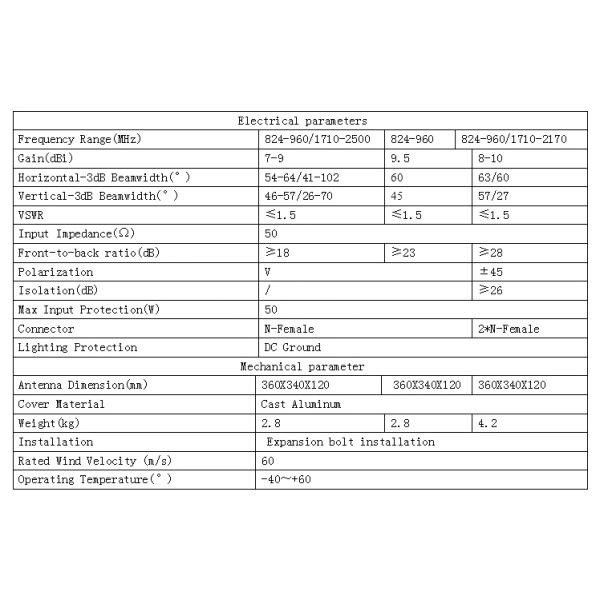

Technical parameters

1)Frequency Range—MHz: 824-960/1710-2500

2)Bandwidth -MHz: 136/790

3)Gain: 7~10dBi

4)3dB Beam Width Hor:824-960MHz 50~64°

1710-2500MHz 26~70°

5) 3dB Beam Width Ver 824-960MHz 50~64°

1710-2500MHz 26~70°

6)VSWR: ≤1.7

7)Front-to-Back Ratio:16-25dB

8)Polarization:Vertical

9)Max power:100W

10)Nominal Impedance:50Ω
11)Connector:N-Type

12)Rated Wind Velocity: 40m/s

13)Work Temperature -40—+70℃

Lamp Type Beautification Antenna / Community Beautification Antenna High Gain
