Hybrid Coupler 2in 2out IBS Components 2:1 hybrid coupler
Hybrid Coupler 2in 2out IBS Components 2:1 hybrid coupler
Specifications
Brand Name :
ZD
Model Number :
ZD-HC-827-200-2:2-NF
Certification :
RoHS
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
D/A, D/P, T/T, Western Union, MoneyGram, L/C
Supply Ability :
10000pcs one month
Delivery Time :
3-15 days
Packaging Details :
Standard exporting cartons or as customer required
Material: Cavity :
Aluminum silver-plated
Temperature :
-25 to +70℃
VSWR :
<1.3
PIM3 :
≤-150dBc @+43dBm×2
Connector Type :
N-Female
Frequency Range :
700 - 2700MHz
Description

Hybrid Coupler 2in 2out IBS Components 2:1 hybrid couple

Hybrid Coupler 2in 2out

Model: ZD-HC-827-200-2:2-NF

Features:

  • Wide Frequency Range
  • Excellent Coupling Flatness
  • High Directivity / Isolation
  • Cavity structure, High power handing
  • Low Insertion Loss, Low VSWR, Low PIM(IM3)

Specifications:

Frequency Range 700 - 2700MHz
Distribution Loss ≤3.5dB (Including Distribution Loss and Fluctuation)
Isolation ≥20dB
Return Loss ≥20dB, (VSWR<1.25)
Insertion Loss ≤ 0,55 dB
Impedance 50Ω
PIM (IMD3) ≤-150dBc @+43dBm×2
Connectors N-Female
Power Handling 100W / Input port, (Total power 200W)
Temperature -25 to +70℃
Environmental Humidity 0 to 95%
Environmental rating Indoor (IP52)
Material Cavity aluminum silver-plated; Connector: Copper
Size 142×40×22mm
Weight ≥0.37Kg

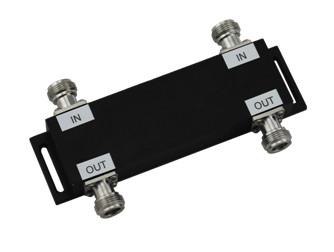

Outline Drawing & Product Image:

Hybrid Coupler 2in 2out IBS Components 2:1 hybrid coupler Hybrid Coupler 2in 2out IBS Components 2:1 hybrid coupler
