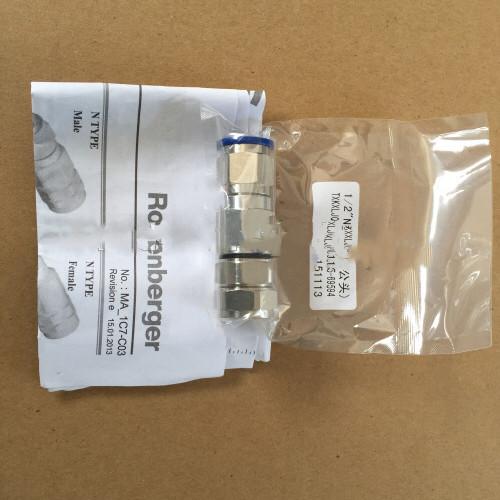

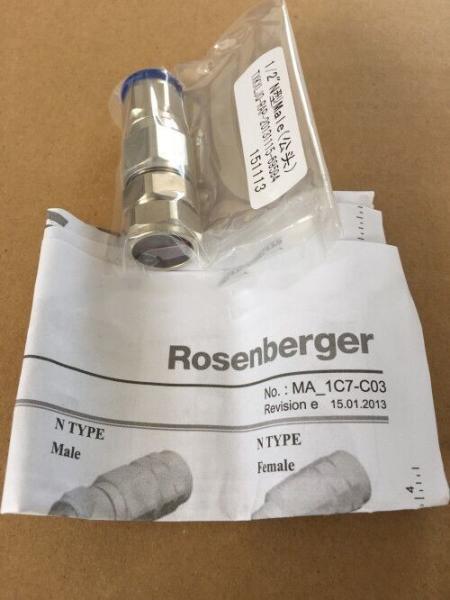

Rosenberger RF Coaxial Connector N male for 1/2 flexible cable
Rosenberger RF Coaxial Connector N male for 1/2 flexible cable
Rosenberger RF Coaxial Connector N male for 1/2 flexible cable
Rosenberger RF Coaxial Connector N male for 1/2 flexible cable
Rosenberger RF Coaxial Connector N male for 1/2 flexible cable
Rosenberger RF Coaxial Connector N male for 1/2 flexible cable
Rosenberger RF Coaxial Connector N male for 1/2 flexible cable
Rosenberger RF Coaxial Connector N male for 1/2 flexible cable
Specifications
Brand Name :
ZD
Model Number :
RS-CN-NM-CF12
Certification :
RoHS
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
10000pcs per month
Delivery Time :
3~4 weeks
Packaging Details :
Standard Packing
Name :
RF Coaxial Connectors
Impedance :
50 Ω
Frequency Range :
0 - 11 GHz
Dielectric Withstanding Voltage :
2,500 volts rms
Insulation Resistance :
5,000 MΩ minimum
RF Leakage :
-90 dB minimum at 3 GHz
Description

Rosenberger RF Coaxial Connector N male for 1/2" flexible cable

Rosenberger 12'' N type male Rosenberger connector

Electrical
Impedance 50 Ω
Frequency Range 0 - 11 GHz
Voltage Rating 1,500 volts peak
VSWR MIL-C-39012 straight connectors: 1.3 max 0-11 GHz
MIL-C-39012 right angle connectors: 1.35 max 0-11 GHz
Dielectric Withstanding Voltage 2,500 volts rms
Insulation Resistance 5,000 MΩ minimum
Center Contact Resistance 1.0 mΩ
Outer Contact Resistance 0.2 mΩ
RF Leakage -90 dB minimum at 3 GHz
Insertion Loss .15 dB maximum at 10 GHz
Mechanical
Mating 5/8-24 threaded coupling
Braid or Jacket Cable Affixment All crimps: hex braid crimp
Clamps: screw-thread nut and braid clamp
Center Conductor Cable Affixment Crimp: crimp or solder
All others: solder only
Captivated Contact All crimps unless specified otherwise
Cable Retention Crimps: 60-120 lbs
Clamps: 30-70 lbs
Material
Male Contacts Brass, silver or gold plated
Female Contacts Phosphorous bronze or beryllium copper, silver or gold plated
Other Metal Parts Brass with ASTROplate® finish; M39012 has silver finish
Insulators TFE, copolymer of styrene or glass-TFE (hermetic seal)
Weatherproof Gaskets Silicone rubber of synthetic rubber
Crimp Ferrule Copper
Environmental
Temperature Range TFE: -65°C to +165°C
Weatherproof All series N with gaskets are weatherproof
Hermetic Seals Pass helium leak test of 2x10-8 cc/sec
Pressurized Shock Compression seal MIL-STD-202, method 213
Vibration MIL-STD-202, method 204, test condition B
Moisture Resistance MIL-STD-202, method 106
Corrosion MIL-STD-202, method 101, test condition B
Temperature Cycling MIL-STD-202, method 102, test condition C
Altitude MIL-STD-202, method 105, test condition C
Military
MIL-C-39012
MIL-A-55339		 Where applicable

Application:

- Automotive

- Global Positioning Satellite

- Bluetooth

- Remote Vehicle Diagnostics

- Infotainment Systems
