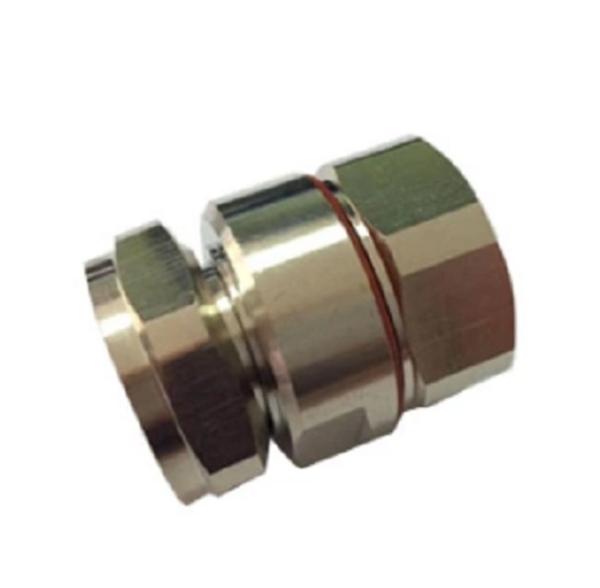

Factory Price RF coaxial Connector7/16 DIN Female for 7/8'' Feeder cable
Factory Price RF coaxial Connector7/16 DIN Female for 7/8'' Feeder cable
Specifications
Brand Name :
ZD
Model Number :
ZD-CN-DF-CF78
Certification :
RoHS
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
10000pcs per month
Delivery Time :
3~4 weeks
Packaging Details :
Standard Packing
Name :
DIN Female connector for 7/8'' Feeder cable connector
Material :
Brass
Impedance :
50ohm
Dielectric Strength :
2500V rms
Operating temperature :
-40~+85
Connector type :
D Female
Description

Factory Price RF coaxial Connector7/16 DIN Female for 7/8'' Feeder cable

Product Description

coaxial connectors-high-qualtiy coaxial connectors with low attenuation and inter-modulation.Transmission of medium to high power with redio transmitters and low PIM transmission of received signals such as in mobile phone base stations are typical applications due to their high mechanical stability and best possible weather resistance.

Din-Female type for 7/8" feeder cableter

PRODUCT DESCRIPTION

Factory Price RF coaxial Connector7/16 DIN Female for 7/8'' Feeder cable

INTERFACE

 Graphics for reference only

D Female

According to IEC 60169-16
Mounting angle Straight
ELECTRICAL PROPERTIES

Impedance

50
Frequency range, GHz DC~3

3rd order inter-modulation Inner contact resistance Outer contact resistance

Insulation resistance

dBc@2×20Wm

m

M•km

≤-155

≤0.4

≤1.0

≥5000
Dielectric withstanding voltage V, RMS,50Hz, at sea level ≥4000
VSWR ≤ 1.06
Insertion loss dB ≤0.08
MATERIAL & PLATING

Inner contact

Brass alloy plated with silver
Outer contact Brass alloy plated with Tri-Alloy
Insulator PTFE
ENVIRONMENTALPROPERTIES
Temperature range, ℃

-40~+85
Water proof IP67
2011/65EU(ROHS) compliant

* RF cable assemblies in 50 ohms can be ordered using the following connector types such as 7/16 DIN, BNC, FME, MCX, MMCX, N, QMA, SMA, SMB, SMC, SMP, SSMB, TNC, UHF, U.FL and 75 ohms cable assemblies can be made with the following 75 ohms connectors such as BNC, F, N, SMB, SMC, TNC and mini SMB .

* RF cable assemblies includes: RG141/RG142/RG174/ RG178/RG179/RG180/ RG187/RG196/RG213/RG214/RG218/RG219/ RG223/RG303/RG316/RG316-DS/RG393/RG400/RG401/RG402/RG405/RG58/U

* RF cable assemblies can be produced with many different connector types and custom lengths depending on your needs and applications.
