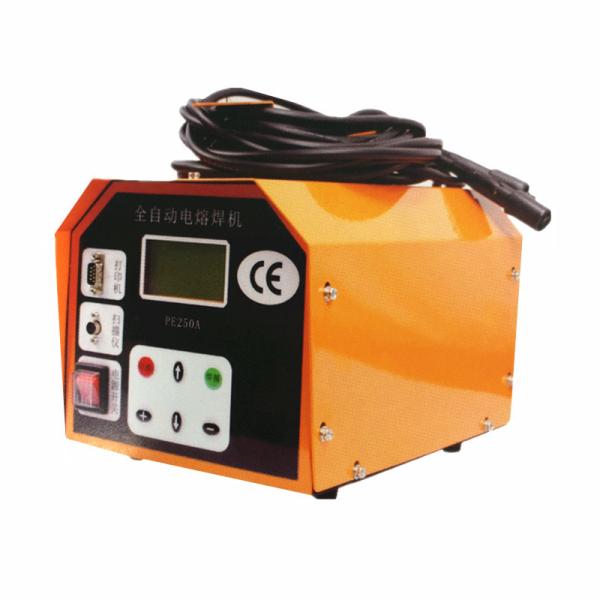

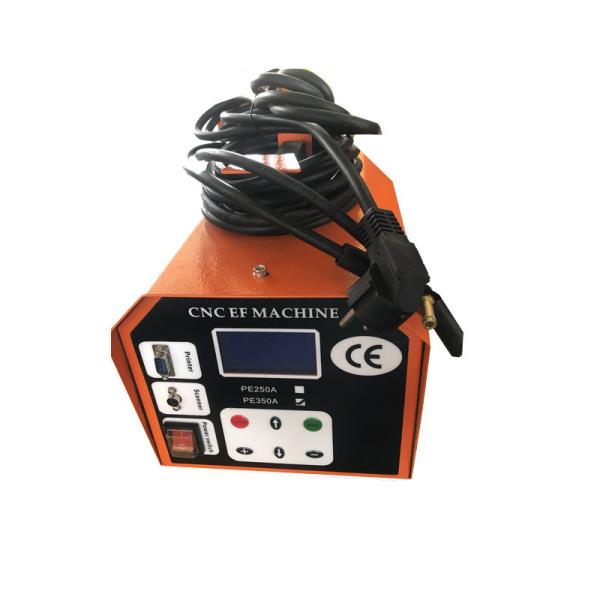

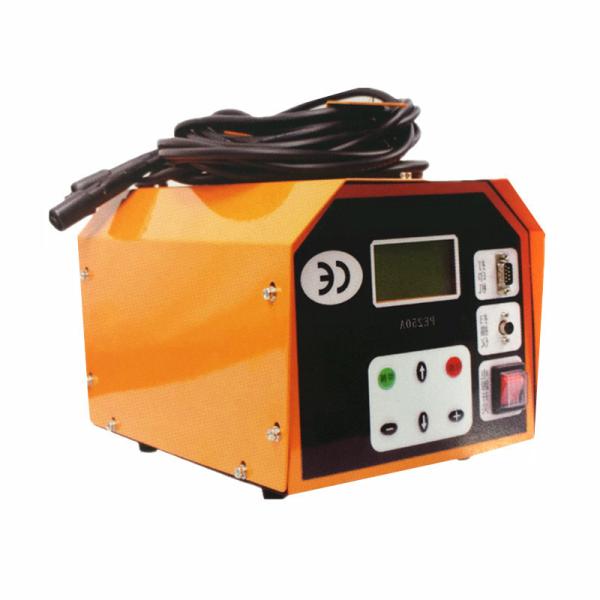

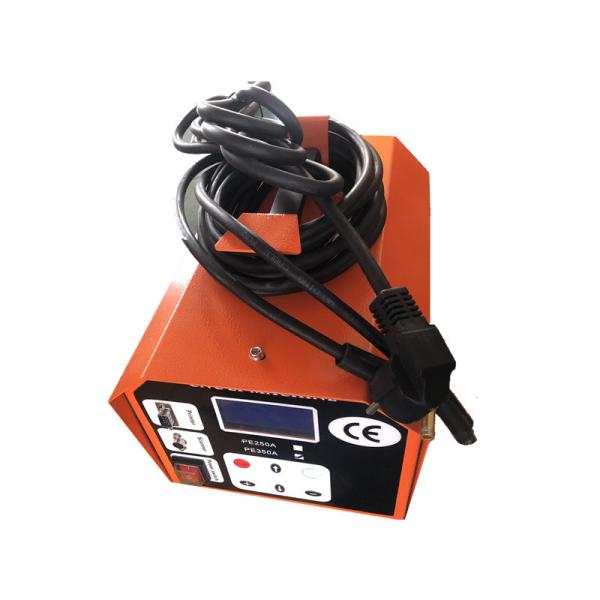

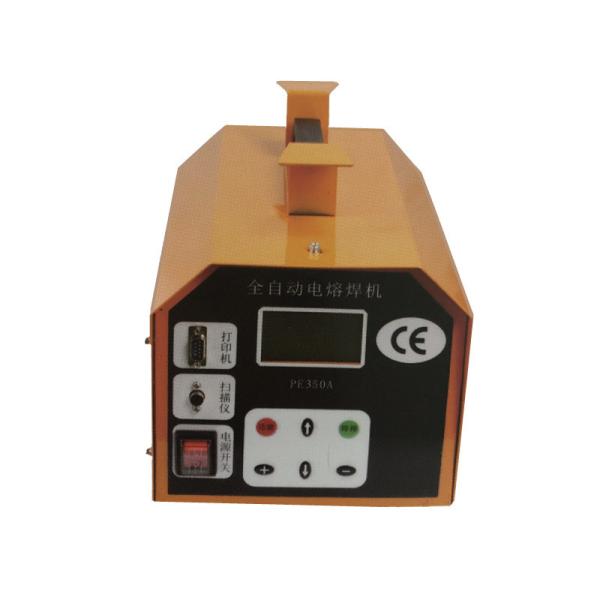

500A Single Phase Electric Welding Machine 500 fusion welding machine
500A Single Phase Electric Welding Machine 500 fusion welding machine
500A Single Phase Electric Welding Machine 500 fusion welding machine
500A Single Phase Electric Welding Machine 500 fusion welding machine
500A Single Phase Electric Welding Machine 500 fusion welding machine
500A Single Phase Electric Welding Machine 500 fusion welding machine
500A Single Phase Electric Welding Machine 500 fusion welding machine
500A Single Phase Electric Welding Machine 500 fusion welding machine
500A Single Phase Electric Welding Machine 500 fusion welding machine
500A Single Phase Electric Welding Machine 500 fusion welding machine
Specifications
Brand Name :
SUNTECHMACH
Model Number :
500
Certification :
ISO9001
Place of Origin :
ZHEJIANG, CHINA
MOQ :
1PC
Price :
Negotiable
Payment Terms :
T/T,Western Union
Supply Ability :
10000pcs/momth
Delivery Time :
10working days
Packaging Details :
Carton
Product name :
Quick Response electric welding machine 500 for Manufacturing Plant
Voltage :
AC220V+/-20%
Power :
5.5kw
Current :
80A
Frequency :
50-60Hz Single phase
Relative humldit :
60%
Protectlon Class :
IP54
Packing size :
53*36*30cm
Weight :
32KG
Customized :
Approved
Description
500A Quick Response electric welding machine 500 for Manufacturing Plant
Application

Electrofusion welding machine using true RMS control, is mainly used in connection of gas or water polyethylene (PE) pipes and fittings. It is the perfect corollary equipment for every PE pipe, pipe fitting manufactures and construction units.

The machine has higher performance than the international standard ISO12176-2 in welding voltage stability, welding time accuracy and the temperature detection accuracy, etc.

Technical Parameters
Specifications & Models 200 315 500
Welding Range (mm) 20-200 20-315 20-500
Input Voltage AC220V+/-20% 50-60Hz Single phase AC220V+/-20% 50-60Hz Single phase AC220V+/-20% 50-60Hz Single phase
Outpower Power 2.5Kw 3.5Kw 5.5Kw
Output Voltage 10-55V 10-65V 10-90V
Output Current 50A 60A 80A
Work environment -15-45℃ Relative humidity 80% -15-45℃ Relative humidity 80% -15-45℃ Relative humidity 80%
Protection grade IP54 IP54 IP54
Load factor 60% 60% 60%
Package size(cm) 40*27*30cm 53*36*30cm 53*36*30cm
Weight 19KGS 25KGS 32KGS
Electrofusion connection process

The operation points of electrofusion connection. Clean the dirt on the connecting surface of the pipe, mark the insertion depth, and scrape the skin; fix the pipe on the frame, and put the electrofusion pipe fittings on the pipe; straighten the parts to be connected to ensure that they are on the same axis; power on and weld; cool down. When connecting, the selection of voltage and heating time when energized and heated should comply with the regulations of the manufacturer of electrofusion connection equipment and pipe fittings. While the fused connection is cooling, do not move or apply any external force on the connection. The power supply of the machine also has the characteristics of moisture-proof and shock-proof, which is convenient for working in harsh conditions in the field.The power supply of this machine also has the characteristics of moisture-proof and shock-proof, which is convenient for working in harsh conditions in the field.

500A Single Phase Electric Welding Machine 500 fusion welding machine
Product details
500A Single Phase Electric Welding Machine 500 fusion welding machine 500A Single Phase Electric Welding Machine 500 fusion welding machine 500A Single Phase Electric Welding Machine 500 fusion welding machine
Our service:
  • We offer 1 year warranty and free spare parts. (Except for wearing parts)
  • We offer voltage and frequency of motor customization service
  • We can put your LOGO on machine plate or packing (need your authorization on brand)
  • Machine can be shipped to overseas or domestic place by sea or air in LCL or FCL.
FAQ:
Q1 .What about your guarantee ?
A: the machine's guarantee is 12 months.
Q2. Would you accept the ODM or OEM ?
A: Accept the OEM /ODM ,but it must be No infringement of third party.
Q3. what's the MOQ?
A: Order could be discussed.
Q4. What about your delivery time? Can we receive our goods on time?
A: Delivery date is within 25-35 working days after receipt of the deposit . Yearly on-time delivery rate high than 98%.
Q5. what quality system has been gained for your factory ?
A: We have gained : ISO9001:2008, SGS CCC for our factory
