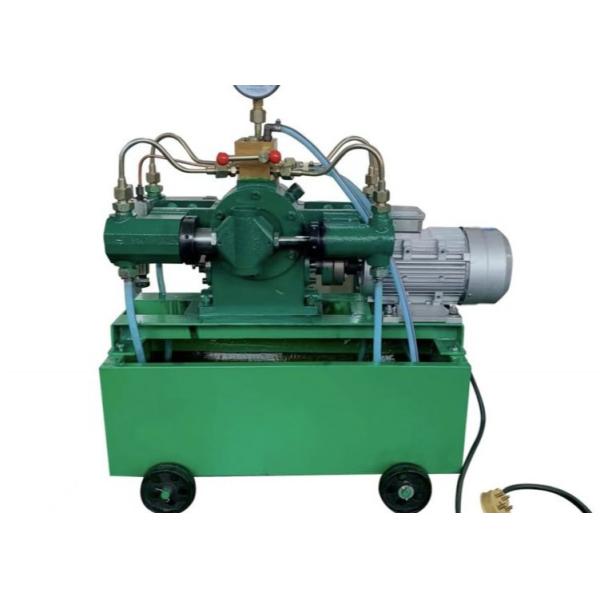

The SUNTECHMACH 4DSY series four-cylinder electric pressure test pump is an ideal equipment for obtaining high-pressure liquid in laboratory and hydrostatic testing of pressure vessels, pipelines, boilers, valves and fire-fighting equipment. Specially designed for hydraulic testing: at the initial stage it delivers large flow for rapid liquid filling and pressure rise to shorten test time; when the pressure exceeds 1.6 MPa, the flow automatically reduces for stable, slow pressurization. The pump therefore has two flows at high and low pressure and switches automatically. Any numerical hydrostatic test can be carried out below the rated discharge pressure. 4DSY series products have been applied to pressure testing in aviation and key national defense research projects, such as high-pressure blasting tests, deep-sea tests, space technology, high-temperature & high-pressure tests and special-shaped pipe tests.

Key Features

• Four-Cylinder Design — High output with smooth, continuous operation.
• Dual-Flow Auto Switch — Large flow (500 L/H) for fast filling; auto-reduced flow above 1.6 MPa for stable slow pressurization.
• Laboratory & Industrial Grade — For pressure vessels, pipelines, boilers, valves, fire equipment; used in aviation and defense research tests.
• 8-Model Family — 4DSY-180/4 to 4DSY-15/80, covering 4-80 MPa.
• Heavy-Duty Motor — YS9024-T, 1.1-1.5KW, 380V three-phase.
• Customizable — Blue body, custom logo, export-grade or wooden packing on request.

Technical Specifications

What's Included

• 1x 4DSY pressure test pump
• 1x Pressure gauge
• 1x Pressure hose / fittings
• 1x Operation manual + 12-month warranty card

Applications

• Hydrostatic testing of pressure vessels, pipelines, boilers, valves and fire-fighting equipment
• Laboratory high-pressure liquid supply
• Aviation and defense research tests (high-pressure blasting, deep-sea, space technology, high-temperature & high-pressure, special-shaped pipe)
• Industrial hydraulic testing stations

Packaging & Quality Assurance

Standard export packing (poly box + outer carton) or wooden packing per customer request. Shipping by sea, air, UPS, DHL, TNT, EMS or FedEx. ISO9001 quality system; every pump tested before shipment.

After-Sales Support

• 12-month warranty
• WhatsApp: +86-13777804353 ｜ Email: vivian@cnsuntech.com
• 24-hour response for inquiries and after-sales

Operation Guide

1. 1. Add oil before use (per the manual) — never run the pump without oil.
2. 2. Connect the pump to the test object with proper hoses and fittings.
3. 3. Fill the liquid and start the pump: large flow fills and pressurizes quickly.
4. 4. Above 1.6 MPa the flow auto-reduces for stable slow pressurization.
5. 5. Test only below the rated discharge pressure; use a calibrated gauge.
6. 6. After the test, release pressure slowly and shut down.

Common Faults & Solutions

FAQ

• 1. WHO ARE WE? — We are a professional pipe machine manufacturer in Hangzhou, China. Our team has worked in the pipe tool industry since 1989, and the company was registered in 2014. We are close to Shanghai, Ningbo and Yiwu ports, exporting mainly to North & South America, South Asia and the Middle East.
• 2. HOW CAN WE GUARANTEE THE QUALITY? — We always test at least one pipe on every machine before shipping. All our machines carry a 12-month warranty.
• 3. WHAT CAN YOU BUY FROM US? — Pipe threading machines, roll grooving machines, pipe cutting machines, pipe bending machines, plastic pipe welding machines, pressure test pumps and pipe tools.
• 4. WHY SHOULD YOU BUY FROM US? — We offer a full range of pipe tools; you can mix different models in one shipment. Multilingual support: English, Spanish, Japanese, Portuguese, German, Arabic, French, Russian, Korean, Hindi, Italian.
• 5. HOW LONG IS THE LEADTIME? — Usually 10-35 days after payment, depending on motor voltage customization.
• 6. HOW CAN YOU PLACE ORDER? — We accept T/T payment to our company account; online shop payment by credit card is also available.
• 7. HOW TO SHIP? — By sea to port for bulk orders; door-to-door delivery for small shipments.
• 8. WHAT IS THE MOQ? — No strict MOQ; however, we recommend an order amount of at least USD 2000 for cost-effective overseas shipping.
• 9. IS OEM ACCEPTABLE? — Yes. For bulk orders we can make nameplates and customized packaging in your brand.
