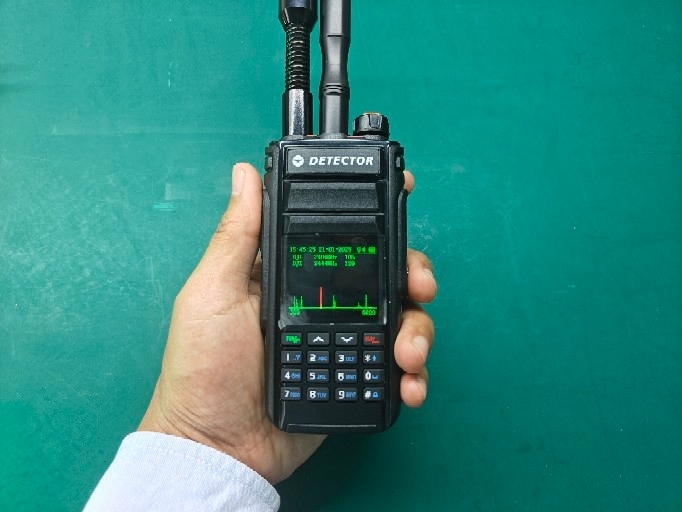

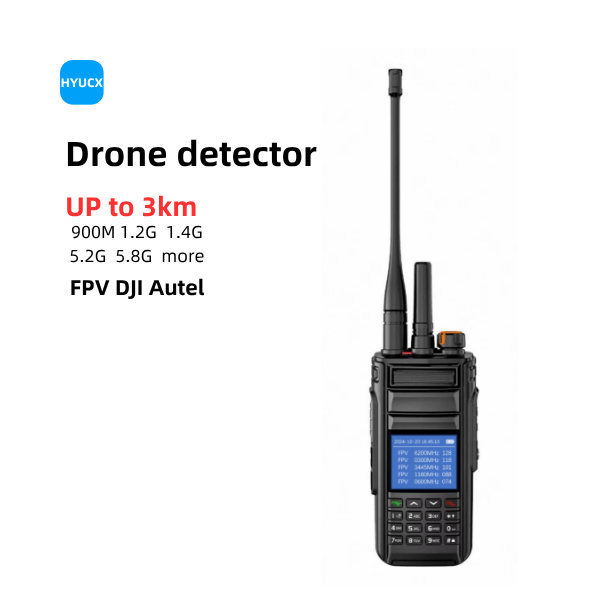

Lightweight Handheld Drone Detection Device CH03 for Security Patrol
Lightweight Handheld Drone Detection Device CH03 for Security Patrol
Lightweight Handheld Drone Detection Device CH03 for Security Patrol
Lightweight Handheld Drone Detection Device CH03 for Security Patrol
Lightweight Handheld Drone Detection Device CH03 for Security Patrol
Lightweight Handheld Drone Detection Device CH03 for Security Patrol
Lightweight Handheld Drone Detection Device CH03 for Security Patrol
Lightweight Handheld Drone Detection Device CH03 for Security Patrol
Specifications
structure size :
≤ 135mm × 60mm × 35mm (host without antenna)
Detecting alarm methods :
Headphones, sound and light
Detecting distance :
≥1km
Model Number :
CH03
Working weight :
≤ 500g (including single battery)
Detection sensitivity :
Better than -96dBm
Place of Origin :
Shenzhen China
Receiving frequency band :
300MHz-6200MHz
Brand Name :
HYUCX
Battery life :
≥ 6 hours (single battery)
Description
Lightweight Handheld Drone Detection Device CH03 for Security Patrol
Detection Equipment Overview
The portable broadband drone detection device features a low-power, highly integrated design capable of detecting mainstream DJI, Daotong, and other rotary wing drones using OFDM high-definition image transmission, as well as various DIY drones using analog image transmission signals. With dual antennas and multi-channel simultaneous scanning, this device offers fast detection speed, high sensitivity, long detection range, low false alarm rate, strong scalability, and ease of use.
Main Functional Features
  • Passive Drone Detection: Identifies rotary wing drones such as DJI and Daotong using OFDM high-definition image transmission; detects various drones using analog image transmission within 300MHz-6200MHz range
  • Audio and Visual Alarms: Headphone sound alerts and external audio-visual alarms
  • Log Recording: Alarm log recording with USB interface for log export
  • Headphone Function: Receive alarm sounds through headphones
  • Firmware Upgrade: Update firmware via Type-C interface
  • Multi-language Support: English and Russian language options
  • Status Display: Real-time monitoring of time, battery level, and equipment status
  • Operating Modes: Default mode, key frequency band scanning mode (future support), user-defined feature library scanning mode (future support)
  • Custom Detection: Modify, delete, or add detection drone feature libraries through Type-C interface
Device Operation and Maintenance
Appearance Inspection
  • Regularly inspect plastic surfaces and screens for cracks, scratches, or dirt
  • Clean surfaces with soft cloth and appropriate cleaning agents
Battery Maintenance
  • Perform regular charge and discharge cycles to extend battery life
  • Avoid prolonged periods at full charge or empty state
  • Monitor battery health status; consider replacement if life significantly decreases
  • Avoid extended storage in high or low temperature environments
Battery Charger
  • Regularly inspect adapter cables and plugs for damage
Functional Testing
  • Regularly test all equipment functions to ensure proper operation
Safety Precautions
  • Use only original or certified accessories
  • Avoid operation in humid or extreme temperature conditions
  • Regularly check for abnormal phenomena such as overheating and unusual odors
Inspection and Maintenance
