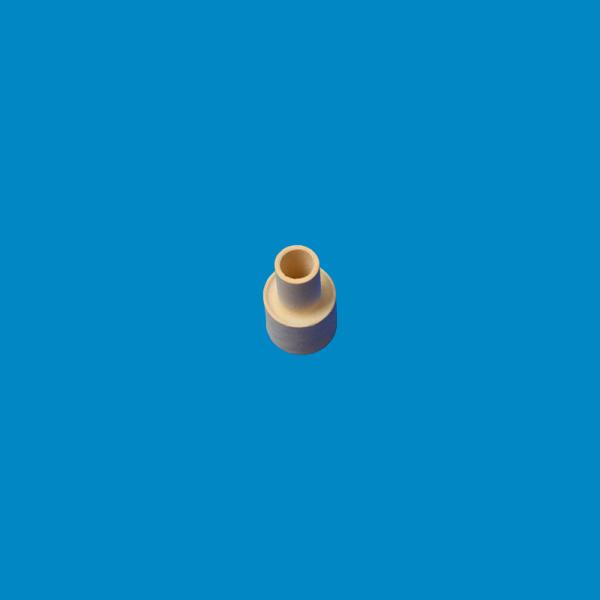

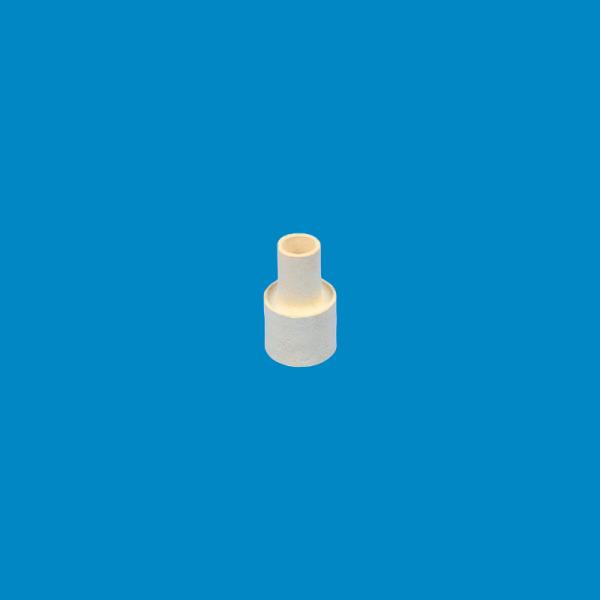

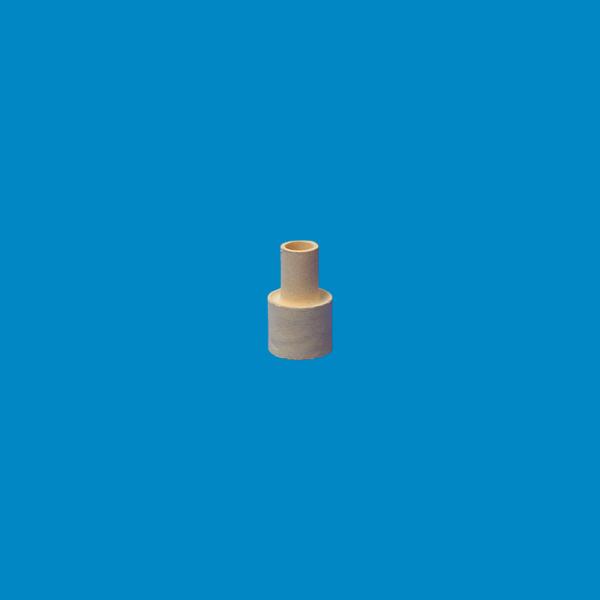

Cordierite Ceramic Bushing for Industrial Kiln Lining
Cordierite Ceramic Bushing for Industrial Kiln Lining
Cordierite Ceramic Bushing for Industrial Kiln Lining
Cordierite Ceramic Bushing for Industrial Kiln Lining
Cordierite Ceramic Bushing for Industrial Kiln Lining
Cordierite Ceramic Bushing for Industrial Kiln Lining
Specifications
Brand Name :
HENGYUAN
Model Number :
Cordierite Ceramics
Certification :
CE,UL
Place of Origin :
WUXI JIANGSU CHINA
MOQ :
100
Price :
Negotiable
Payment Terms :
Negotiable
Supply Ability :
5000 PCS/WEEK
Delivery Time :
20 DAYS
Packaging Details :
Carton
Material :
Cordierite Ceramics
Color :
customizable
Hardness :
800 HV
Bending Strength :
900 Kgf/cm2
OEM，ODM :
Acceptable
Orgin :
WUXI JIANGSU CHINA
MOQ :
100 PCS
Package :
Carton
Description
Low Expansion Cordierite Ceramics Excellent Thermal Shock Resistance for Industrial Kiln Lining
Product Specifications
Attribute Value
Material Cordierite Ceramics
Color Customizable
Hardness 800 HV
Bending Strength 900 Kgf/cm2
OEM/ODM Acceptable
Origin Wuxi Jiangsu, China
MOQ 100 PCS
Package Carton
Product Description

Cordierite ceramic is a low expansion special ceramic with 2MgO·2Al₂O₃·5SiO₂ as the main component, with excellent thermal stability, low dielectric constant and good thermal shock resistance. Its thermal expansion coefficient is close to zero, and it can withstand drastic temperature changes without cracking. It is widely used in electronic substrates, catalytic carriers and high-temperature filters.

Item Test Condition Unit & Symbol Cordierite Ceramics
The main chemical ingredient MgO, Al2O3, SiO2
Bulk Density gm/cc 2.6
Maximum Use Temperature 1400℃
Hardness HV 800
Bending Strength 20℃ Kgf/cm2 900
Compressive Strength 20℃ Kgf/cm2 3500
Fracture Toughness K(I c) Mpa m1/2 -
Thermal expansion 1X 10-6/℃ ≤2.0
Thermal conductivity 25℃-30℃ W/m.k 1.3
Thermal Shock Resistance Tc ℃ 250
Dielectricity constant 1MHz.25℃ 6
Dielectric strength ac-kV/mm (ac V/mil) 10
Volume Resistivity 20℃ ohm-cm > 1012
Product Images
Cordierite Ceramic Bushing for Industrial Kiln Lining Cordierite Ceramic Bushing for Industrial Kiln Lining Cordierite Ceramic Bushing for Industrial Kiln Lining Cordierite Ceramic Bushing for Industrial Kiln Lining Cordierite Ceramic Bushing for Industrial Kiln Lining Cordierite Ceramic Bushing for Industrial Kiln Lining Cordierite Ceramic Bushing for Industrial Kiln Lining Cordierite Ceramic Bushing for Industrial Kiln Lining Cordierite Ceramic Bushing for Industrial Kiln Lining Cordierite Ceramic Bushing for Industrial Kiln Lining Cordierite Ceramic Bushing for Industrial Kiln Lining Cordierite Ceramic Bushing for Industrial Kiln Lining Cordierite Ceramic Bushing for Industrial Kiln Lining
