Wear Resistant Alumina Lined Powder Conveying Pipeline
Wear Resistant Alumina Lined Powder Conveying Pipeline
Wear Resistant Alumina Lined Powder Conveying Pipeline
Wear Resistant Alumina Lined Powder Conveying Pipeline
Wear Resistant Alumina Lined Powder Conveying Pipeline
Wear Resistant Alumina Lined Powder Conveying Pipeline
Specifications
Brand Name :
HENGYUAN
Model Number :
Powder Conveying Wear resistant Pipeline
Certification :
CE,UL
Place of Origin :
WUXI JIANGSU CHINA
MOQ :
100
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
5000 PCS/WEEK
Delivery Time :
20 DAYS
Packaging Details :
Carton
Material :
Powder Conveying Wear resistant Pipeline
Hardness :
High Hardness
Corrosion Resistance :
High Corrosion Resistance
Shape :
Customized
OEM，ODM :
Acceptable
Orgin :
WUXI JIANGSU CHINA
MOQ :
100
Package :
Carton
Description
Wear Resistant Powder Conveying Wear Resistant Pipeline High Purity Alumina Lining Corrosion Resistance
Product Specifications
Material Powder Conveying Wear resistant Pipeline
Hardness High Hardness
Corrosion Resistance High Corrosion Resistance
Shape Customized
OEM/ODM Acceptable
Origin WUXI JIANGSU CHINA
MOQ 100
Package Carton
Product Description

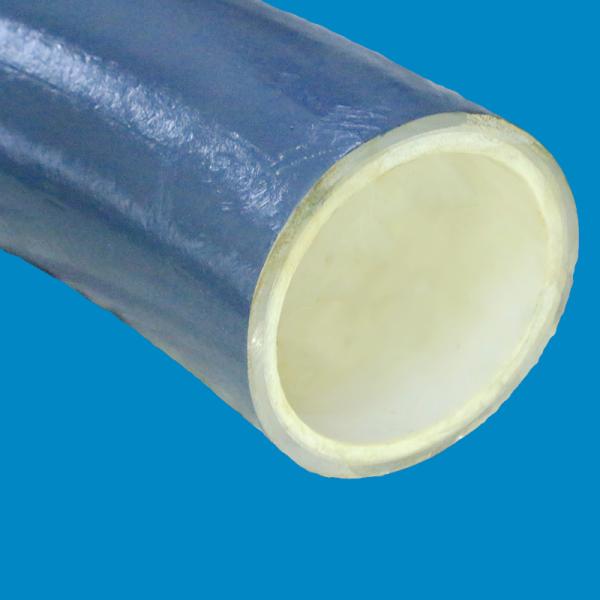

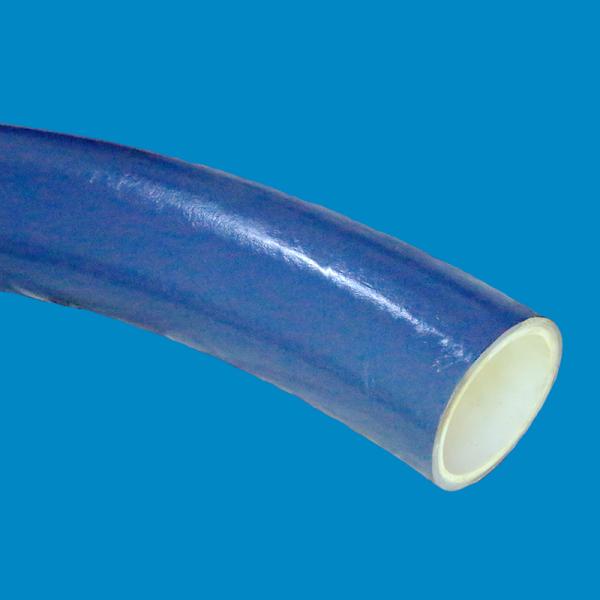

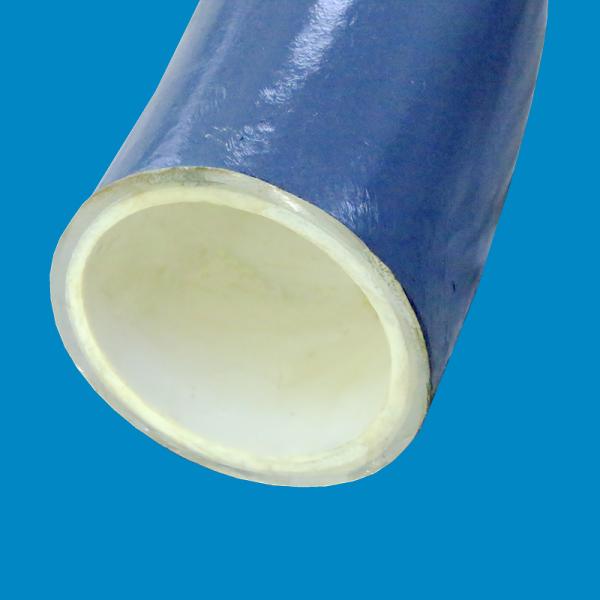

Wear-resistant ceramic tubes use high-purity alumina (Al₂O₃) or silicon carbide (SiC) ceramics as linings, and are compounded with steel pipes through special processes. Its hardness is above HRA90, and its wear resistance is 10-20 times that of ordinary steel pipes. It is widely used in powder pneumatic conveying systems in power, metallurgy, mining and other industries, greatly extending the service life of the pipeline.

The wear resistant conveying pipeline features a multi-layer construction consisting of:

Aluminum oxide (AL2O3) inner layer for superior wear resistance
Intermediate binder layer for structural integrity
Outer steel pipe layer for strength and durability

The alumina ceramic layer is formed at high temperatures exceeding 1600°C, creating a strong metallurgical bond with the steel pipe and binder. This advanced composite structure delivers exceptional:

Corrosion resistance for harsh environments
Wear resistance for extended service life
High strength and toughness for demanding applications
Resistance to mechanical and thermal impacts

The pipeline maintains excellent machinability, allowing for turning, grinding, and welding operations. This unique combination of properties makes it unmatched among composite materials for industrial conveying applications.

Product Images
Wear Resistant Alumina Lined Powder Conveying Pipeline Wear Resistant Alumina Lined Powder Conveying PipelineWear Resistant Alumina Lined Powder Conveying PipelineWear Resistant Alumina Lined Powder Conveying PipelineWear Resistant Alumina Lined Powder Conveying Pipeline Wear Resistant Alumina Lined Powder Conveying Pipeline Wear Resistant Alumina Lined Powder Conveying Pipeline Wear Resistant Alumina Lined Powder Conveying Pipeline Wear Resistant Alumina Lined Powder Conveying Pipeline Wear Resistant Alumina Lined Powder Conveying Pipeline Wear Resistant Alumina Lined Powder Conveying Pipeline Wear Resistant Alumina Lined Powder Conveying Pipeline Wear Resistant Alumina Lined Powder Conveying Pipeline Wear Resistant Alumina Lined Powder Conveying Pipeline Wear Resistant Alumina Lined Powder Conveying Pipeline Wear Resistant Alumina Lined Powder Conveying Pipeline Wear Resistant Alumina Lined Powder Conveying Pipeline
