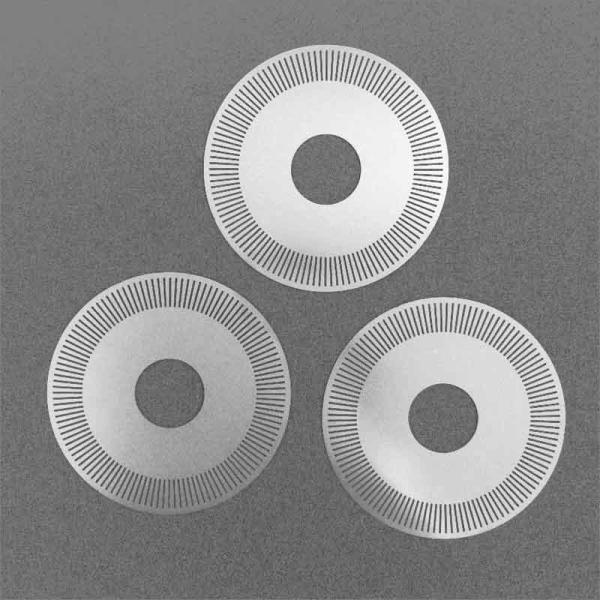

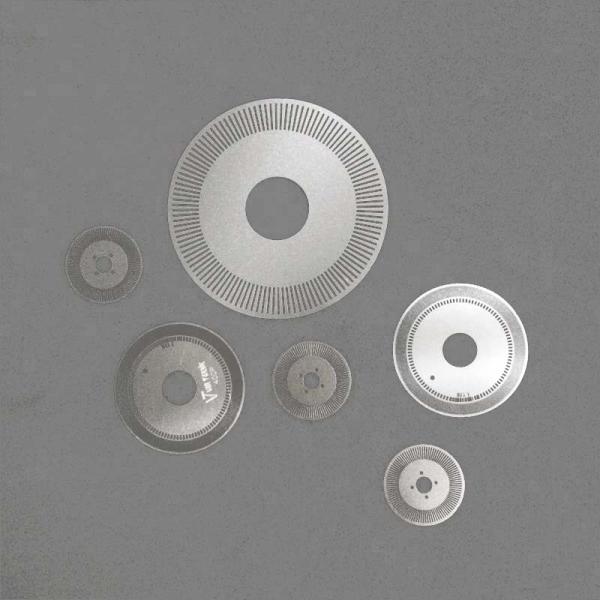

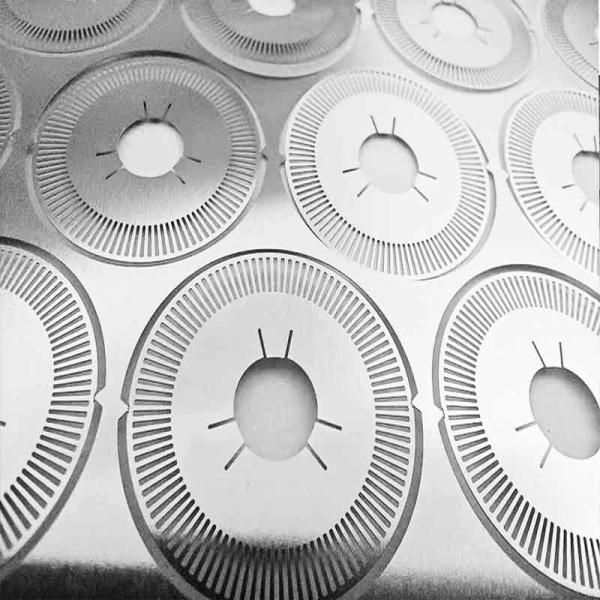

Precision Etched Stainless Steel Optical Encoder Discs
Precision Etched Stainless Steel Optical Encoder Discs
Precision Etched Stainless Steel Optical Encoder Discs
Precision Etched Stainless Steel Optical Encoder Discs
Precision Etched Stainless Steel Optical Encoder Discs
Precision Etched Stainless Steel Optical Encoder Discs
Specifications
Brand Name :
XHS/Customize
Model Number :
Customize
Certification :
ISO 9001, ISO 14001, IATF 16949
Place of Origin :
China
MOQ :
10
Price :
50-100USD
Payment Terms :
T/T
Supply Ability :
10000-100000PCD / week
Delivery Time :
5-10 work days
Packaging Details :
PE bags and Carton
Finish :
polishing ,plating
Technique :
Chemical etching
Material Capabilities :
Stainless Steel
Design :
custom design
Oem :
Support
Service :
24hours
Description

Precision Metal Code Discs for Optical Encoders & Industrial Automation


Product Overview

Xinhsen Technology specializes in manufacturing high-precision metal code discs through advanced chemical etching processes. Our code discs are widely used in optical encoders, industrial automation, robotics, medical devices, and aerospace applications, ensuring accurate position/speed detection and motion control.

Key Features & Advantages

Ultra-Precision: Micro-hole diameter down to 0.03mm, line width up to 0.015mm.

Material Versatility: Stainless steel, copper, aluminum, titanium, and specialty alloys.

Thickness Range: 0.02mm–3mm with uniformity tolerance ±0.03mm.

Rapid Prototyping: Fast turnaround for samples and bulk orders.

Custom Designs: Support complex patterns (slots, radial lines, binary codes).

Technical Parameters

Material Options Stainless Steel (304/316), Brass, Copper, Titanium
Standard Thickness 0.05mm, 0.1mm, 0.2mm, 0.5mm, 1.0mm (Customizable)
Diameter Range 5mm–500mm (or per customer drawing)
Minimum Aperture 0.03mm
Line Width 0.015mm–0.5mm
Position Accuracy ±0.03mm
Etching Tolerance ±0.01mm (for high-end applications)
Surface Finish

Matte, Polished, Anti-reflective coating


Applications

Optical Encoders: Incremental/absolute position sensing.

Medical Devices: Robotics, imaging equipment.

Aerospace: Gyroscopes, navigation systems.

Industrial Automation: Servo motors, CNC machinery.

Why Choose Xinhsen?

13+ Years Expertise: ISO-certified precision etching.

High-Volume Capacity: Scalable production with strict QC.

One-Stop Service: Design support → Prototyping → Mass production.
