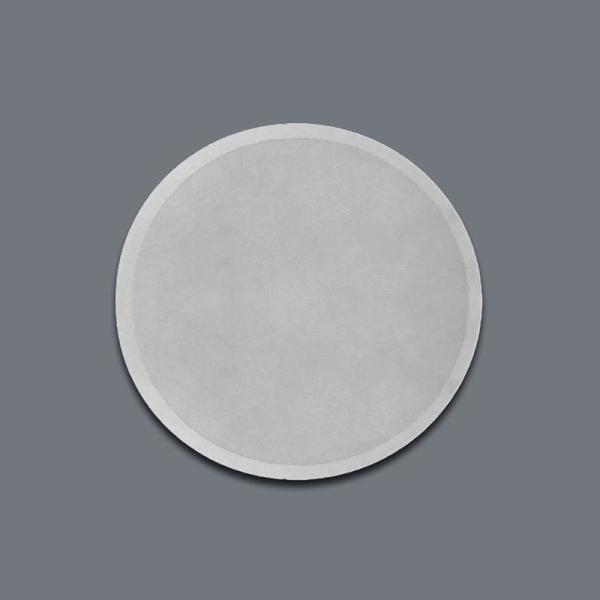

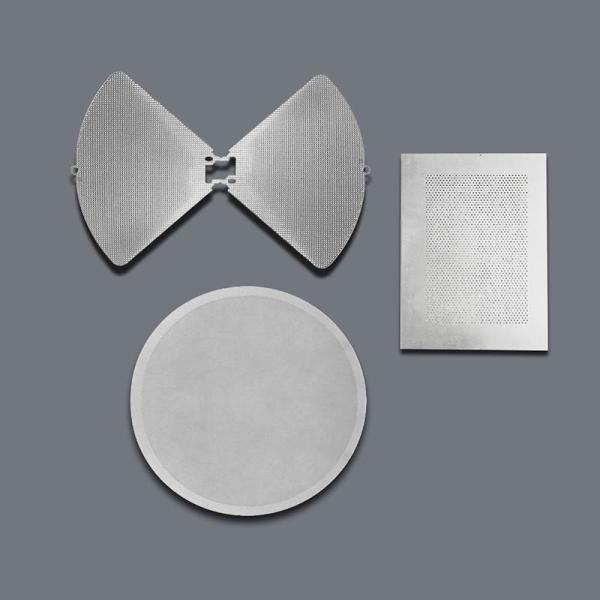

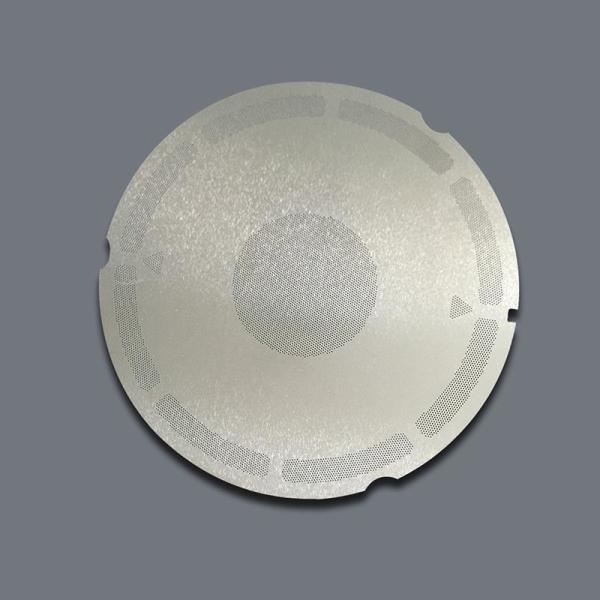

Photo Etched 0.02mm to 1.0mm Stainless Steel Screens and Meshes For Precision Filtration
Photo Etched 0.02mm to 1.0mm Stainless Steel Screens and Meshes For Precision Filtration
Photo Etched 0.02mm to 1.0mm Stainless Steel Screens and Meshes For Precision Filtration
Photo Etched 0.02mm to 1.0mm Stainless Steel Screens and Meshes For Precision Filtration
Photo Etched 0.02mm to 1.0mm Stainless Steel Screens and Meshes For Precision Filtration
Photo Etched 0.02mm to 1.0mm Stainless Steel Screens and Meshes For Precision Filtration
Photo Etched 0.02mm to 1.0mm Stainless Steel Screens and Meshes For Precision Filtration
Photo Etched 0.02mm to 1.0mm Stainless Steel Screens and Meshes For Precision Filtration
Specifications
Brand Name :
XHS/ Customized
Model Number :
XHS/ Customized
Certification :
ISO9001 ISO14001
Place of Origin :
China
MOQ :
10
Price :
80-100USD
Payment Terms :
T/T,Western Union
Supply Ability :
10000-100000PCS / week
Delivery Time :
2-3 weeks
Packaging Details :
PE bag, Carton
Durability :
High
Complexity :
High
Tolerance :
±0.005mm
Thickness :
0.02mm-1.5mm
Lead Time :
2-3 Weeks
Size :
Customized
Precision :
High
Cost :
Low
Description

Photo Etched 0.1mm 0.2mm Stainless Steel Screens and Meshes For Precision Filtration


Xinhaisen provides chemical etching solutions for producing Stainless Steel Etched Screens & Meshes, delivering faster turnaround, greater design flexibility, and more cost-efficient results compared to conventional perforation methods.


Stainless Steel Etched Screens & Meshes can be manufactured through processes like stamping or laser cutting, yet these methods often struggle with intricate patterns or ultra-fine precision. Chemical etching overcomes these challenges—delivering highly complex designs with outstanding accuracy, all while ensuring the surface remains free from stress and burrs.


Photo Etched 0.02mm to 1.0mm Stainless Steel Screens and Meshes For Precision Filtration



Specifications of Stainless Steel Etched Screens & Meshes


Material Stainless steel 304/ 316/ 316L, Copper, Nickel, Aluminum or custom alloys

Thickness Range

 0.02mm – 3mm

Hole Size

 As small as 25 microns

Smallest Opening Hole Precision

 ∅0.02mm

Pattern Tolerance

 ±0.01 mm

General dimensional tolerances

 ±0.005mm
Mesh Types Circular, rectangular, multi-layer, or custom shapes

Surface Finish

 Clean, burr-free, optional passivation



Photochemical machining is a high-precision subtractive process that removes material from metal sheets through controlled chemical reactions. By utilizing cost-efficient digital tooling and producing all mesh openings in a single step, it enables the fabrication of components with nearly limitless complexity, structures, and geometries. This technique reduces both costs and lead times while allowing rapid, hassle-free design modifications.


Photo Etched 0.02mm to 1.0mm Stainless Steel Screens and Meshes For Precision Filtration Photo Etched 0.02mm to 1.0mm Stainless Steel Screens and Meshes For Precision Filtration Photo Etched 0.02mm to 1.0mm Stainless Steel Screens and Meshes For Precision Filtration



Photo Etched Stainless Steel Screens & Meshes can be manufactured with a minimum aperture tolerance of 0.02 mm and a minimum wire width of 0.01 mm, accommodating material thicknesses from 0.02 mm to 1.0 mm. Our chemical etching process guarantees that every screen is produced completely burr-free and free from mechanical stress.


Photo Etched 0.02mm to 1.0mm Stainless Steel Screens and Meshes For Precision Filtration



Benifits of Etched Metal Filter Screens


Photo Etched 0.02mm to 1.0mm Stainless Steel Screens and Meshes For Precision Filtration Photo Etched 0.02mm to 1.0mm Stainless Steel Screens and Meshes For Precision Filtration Photo Etched 0.02mm to 1.0mm Stainless Steel Screens and Meshes For Precision Filtration Photo Etched 0.02mm to 1.0mm Stainless Steel Screens and Meshes For Precision Filtration
Unlimited Complex Smallest Opening to 0.02mm Burr-Free & Stress-Free Prototype to High Volume Production



How to Custom Metal Filter Screens from Xinhaisen?


1. Send Your Design Provide your drawing file (DXF, DWG, STP, PDF) with dimensions, material type, and thickness.


2. Get a Quote We’ll evaluate your design and send you a quotation based on quantity, material, and complexity.


3. Confirm & Start Production Once the order is confirmed, we’ll prepare phototools and begin the etching process.


4. Quality Inspection All parts go through strict quality checks to ensure accuracy and consistency.


5. Packaging & Delivery Your parts will be carefully packaged and shipped to your address on time.



Ready to discuss your Metal Filter Screens design?
