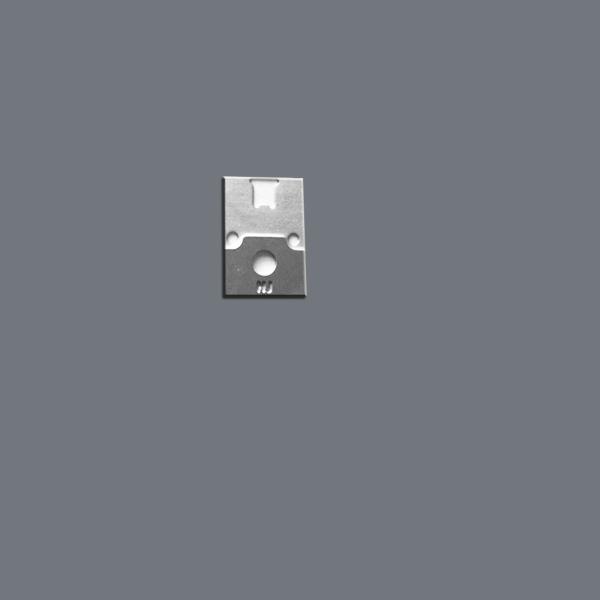

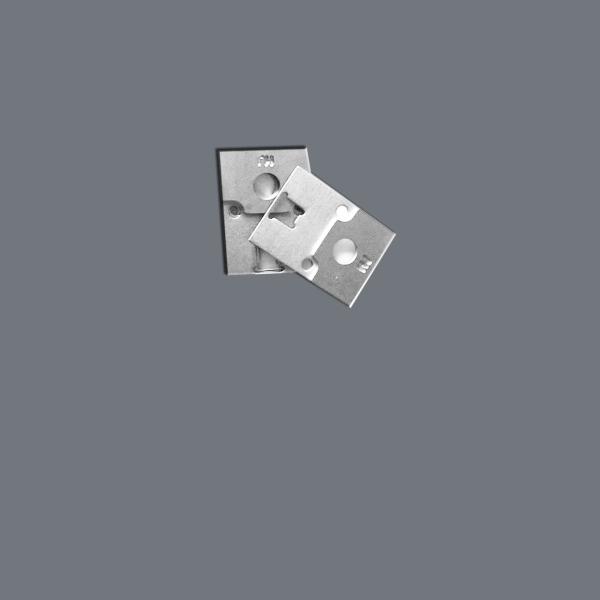

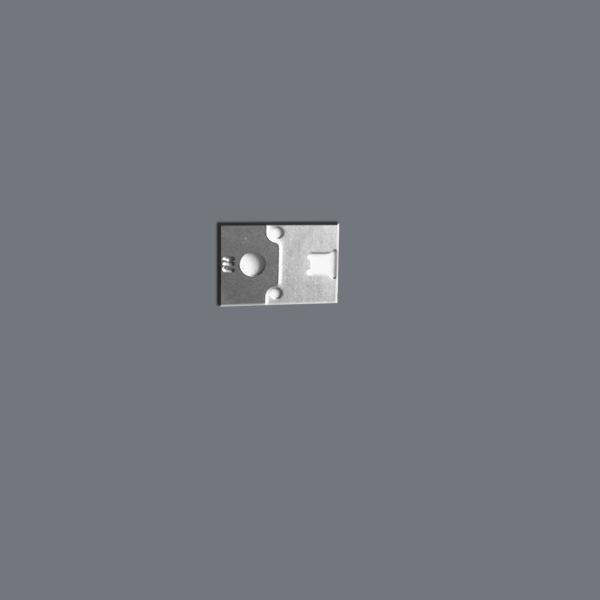

Photo Chemical Etching Metal Connectors for Electronical Industry
Photo Chemical Etching Metal Connectors for Electronical Industry
Photo Chemical Etching Metal Connectors for Electronical Industry
Photo Chemical Etching Metal Connectors for Electronical Industry
Photo Chemical Etching Metal Connectors for Electronical Industry
Photo Chemical Etching Metal Connectors for Electronical Industry
Photo Chemical Etching Metal Connectors for Electronical Industry
Photo Chemical Etching Metal Connectors for Electronical Industry
Specifications
Brand Name :
XHS/Customize
Model Number :
Customize
Certification :
ISO 9001, ISO 14001, IATF 16949
Place of Origin :
China
MOQ :
10
Price :
50-100USD
Payment Terms :
T/T
Supply Ability :
10000-100000PCD / week
Delivery Time :
5-10 work days
Packaging Details :
PE bags and Carton
Material :
SUS301, SUS304, SUS316
Technology :
Photo Chemical Etching
Tolerance :
+/-0.01mm
Size :
Customized
Quality Control :
100% Inspection
Edge Quality :
Smooth
Description

Photo Chemical Etching Metal Connectors for Electronical Industry


Metal Connectors Overview
Xinhaisen Technology specializes in manufacturing high-performance chemically etched electrical connectors for demanding applications across electronics, automotive, aerospace, and industrial sectors. Our precision etching technology enables the production of ultra-fine pitch connectors with exceptional conductivity, durability, and dimensional accuracy that surpass traditional stamped alternatives.


Metal Connectors Features

·Micro-Precision
·Material Expertise
·Complex Designs
·Superior Surface Finish
·Cost-Effective
·Rapid Production


Metal Connectors Specification

Parameter Specification
Current Rating Up to 20A (material and design dependent)
Surface Finish Gold, Silver, Tin, or Nickel plating options
Contact Resistance <5mΩ (depending on material and plating)
Tolerance ±0.01mm
Material Options Stainless Steel, Nickel,Silver,etc.


Photo Chemical Etching Metal Connectors for Electronical IndustryPhoto Chemical Etching Metal Connectors for Electronical Industry


Connector Types Available

·Battery Connectors - High-current contacts for energy storage systems
·FFC/FPC Connectors - Fine-pitch flex circuit interfaces
·Board-to-Board - Precision interconnects for PCBs
·Power Connectors - High-current terminals and busbars
·RF Connectors - Shielded contacts for high-frequency applications
·Custom Spring Contacts - MEMS and micro-switch components


Performance Advantages

·Consistent Quality: Etching process eliminates stamping variability
·Design Flexibility: No limitations on contact geometry
·Durability: Excellent spring properties (especially BeCu)
·Plating Adhesion: Superior surface for reliable plating bonds
·Miniaturization: Enables ultra-compact connector designs


Quality Assurance

·ISO 9001:2015 certified manufacturing
·100% automated optical inspection (AOI)
·Cross-section analysis for critical dimensions
·Continuous plating thickness monitoring
·Mechanical and electrical testing capabilities
