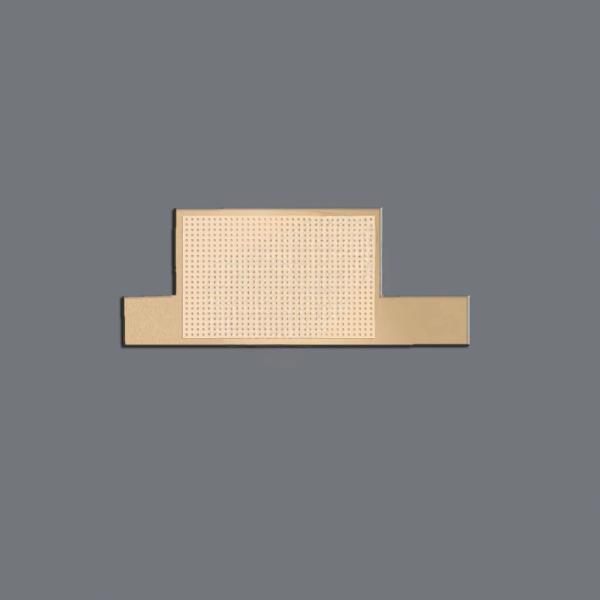

Photo Chemical Etching Ultra Thin Vapor Chamber for New Energy Industry
Photo Chemical Etching Ultra Thin Vapor Chamber for New Energy Industry
Photo Chemical Etching Ultra Thin Vapor Chamber for New Energy Industry
Photo Chemical Etching Ultra Thin Vapor Chamber for New Energy Industry
Specifications
Brand Name :
XHS/Customize
Model Number :
Customize
Certification :
ISO 9001, ISO 14001, IATF 16949
Place of Origin :
China
MOQ :
10
Price :
50-100USD
Payment Terms :
T/T
Supply Ability :
10000-100000PCD / week
Delivery Time :
5-10 work days
Packaging Details :
PE bags and Carton
Material :
Copper Alloy
Tolerance :
±0.01mm
Features :
High precision, intricate designs, corrosion resistant
Etching Method :
Chemical Etching
Customization :
Available
Surface Finish :
Polished
Description

Photo Chemical Etching Ultra Thin Vapor Chamber for New Energy Industry


Vapor Chamber Overview
Xinhsen Technology specializes in manufacturing high-performance vapor chambers through advanced chemical etching and precision machining. Our vapor chambers are designed for superior thermal management in electronics, LED lighting, 5G devices, automotive systems, and high-power computing applications. With ultra-thin profiles and customizable designs, we ensure efficient heat spreading and dissipation for next-generation thermal solutions.


Vapor Chamber Key Features & Benefits

1.Ultra-Thin & Lightweight – Thickness as low as 0.2mm, ideal for compact devices.
2.High Thermal Conductivity – Efficient two-phase heat transfer (water or alternative working fluids).
3.Customizable Designs – Flexible shapes, sizes, and wick structures (mesh, sintered, or grooved).
4.Material Versatility – Copper (C1100/OFC) or stainless steel (316L) for corrosion resistance.
5.Precision Microstructures – Etched micro-channels for optimized fluid circulation.
6.Scalable Production – Supports prototypes to high-volume orders with fast lead times.


Vapor Chamber Technical Specification

Parameter Specification
Material Pure Copper (C1100/OFC), Stainless Steel (316L)
Thickness Range 0.2mm – 3.0mm (standard)
Max Dimensions Up to 600mm × 600mm (custom sizes available)
Flatness Tolerance ≤0.05mm/m²
Working Fluid Deionized Water or Custom Options
Wick Structure Mesh, Sintered Powder, Grooved, or Hybrid
Operating Temp. -30°C to +150°C (wider range upon request)
Leakage Test Helium Mass Spectrometry (10⁻⁹ Pa·m³/s)
Surface Finish Electropolished, Nickel Plating (optional)

Photo Chemical Etching Ultra Thin Vapor Chamber for New Energy Industry


Vapor Chamber Application

Electronics Cooling – Smartphones, laptops, tablets.

LED Lighting – High-power LED heat spreaders.

5G & Telecom – Base stations, RF components.

Automotive – Battery cooling (EV/HEV), infotainment systems.

Aerospace & Defense – Avionics thermal control.


Why Choose Xinhsen?

Precision Etching Expertise – Micro-channel accuracy (±0.03mm uniformity).

End-to-End Service – From design simulation to sealing & testing.

Fast Prototyping – 7–10 days for samples.

ISO-Compliant – Strict quality control (RoHS/REACH compliant).
