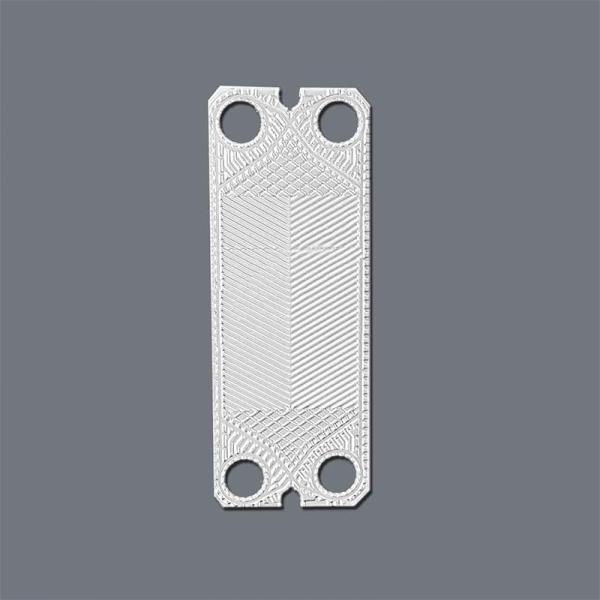

Chemical Etching Bipolar Plates for Fuel Cell with High Corrosion Resistance
Chemical Etching Bipolar Plates for Fuel Cell with High Corrosion Resistance
Specifications
Brand Name :
XHS/Customize
Model Number :
Customize
Certification :
ISO 9001, ISO 14001, IATF 16949
Place of Origin :
China
MOQ :
10
Price :
50-100USD
Payment Terms :
T/T
Supply Ability :
10000-100000PCD / week
Delivery Time :
5-10 work days
Packaging Details :
PE bags and Carton
Material :
Stainless steel, alloys,etc.
Application :
Fuel cell systems
Surface Finish :
Smooth
Tolerance :
+/-0.01mm
Processing Technology :
Photo Chemical Etching
Thickness :
0.5 mm - 3.0 mm
Description

Chemical Etching Bipolar Plates for Fuel Cell with High Corrosion Resistance


Bipolar Plates Overview

Xinhaisen Technology specializes in manufacturing high-performance chemically etched bipolar plates for fuel cells, flow batteries, and other electrochemical applications. Our precision etching process enables complex flow field patterns with exceptional dimensional accuracy and surface quality.

Bipolar Plates Key Features

  • Complex, Burr-Free Channels: Creates intricate, multi-depth flow field designs with smooth, burr-free surfaces for optimal gas flow and water management.

  • High Precision & Consistency: Excellent uniformity across the entire plate and from plate to plate (±0.03mm), ensuring consistent fuel cell stack performance.

  • Material Versatility: Can process various corrosion-resistant conductive metals, including 316L stainless steel, titanium, and aluminum.

  • Thin & Lightweight: Capable of producing very thin plates (from 0.05mm), contributing to higher power density stacks.

  • Rapid Prototyping & Scale-Up: No hard tooling required for design iterations, enabling fast development cycles and seamless transition to volume production.

Bipolar Plates Specification

Parameter Specification
Material Stainless Steel, Titanium, Alloys,etc.
Electrical Conductivity >10,000 S/cm (material dependent)
Corrosion Resistance Passes ASTM G48 Method A (for stainless)
Dimensional Tolerance ±0.01mm (high precision)
Surface Roughness Ra 0.4μm - 1.6μm (customizable)

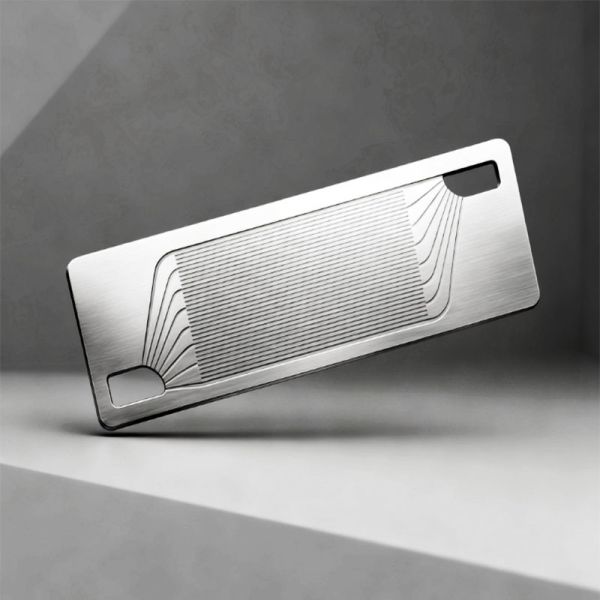

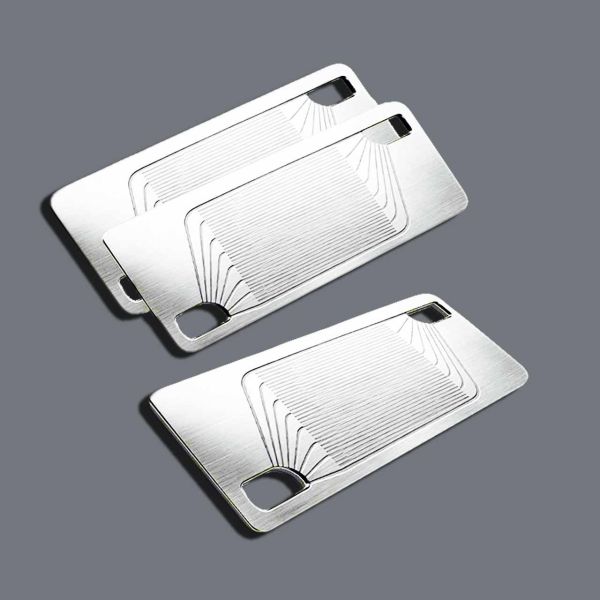

Chemical Etching Bipolar Plates for Fuel Cell with High Corrosion ResistanceChemical Etching Bipolar Plates for Fuel Cell with High Corrosion ResistanceChemical Etching Bipolar Plates for Fuel Cell with High Corrosion Resistance

Bipolar Plate Applications
Metallic bipolar plates are primarily used in:

  1. Proton Exchange Membrane Fuel Cells (PEMFCs)

  2. Hydrogen Fuel Cell Stacks for:

    • Automotive & Transportation (FCEVs, buses, trucks)

    • Stationary Power Backup & Generation

    • Portable & Remote Power Systems

    • Material Handling Equipment (e.g., forklifts)

  3. Other Energy Conversion Devices requiring precision fluidic plates.

Performance Advantages

·Optimized Fluid Dynamics: Precision-etched flow fields reduce pressure drop
·Enhanced Contact: Uniform surface for better current collection
·Thermal Management: Integrated cooling channel designs available
·Weight Reduction: Thin yet rigid constructions
·Sealing Compatibility: Flat surfaces for reliable gasket performance

Quality Assurance

·Material certification (ASTM/EN standards)
·100% dimensional inspection
·Leak testing (helium or pressure decay methods)
·Surface roughness measurement
·Electrical conductivity testing
·ISO 9001:2015 certified production

Chemical Etching Bipolar Plates for Fuel Cell with High Corrosion ResistanceChemical Etching Bipolar Plates for Fuel Cell with High Corrosion Resistance
