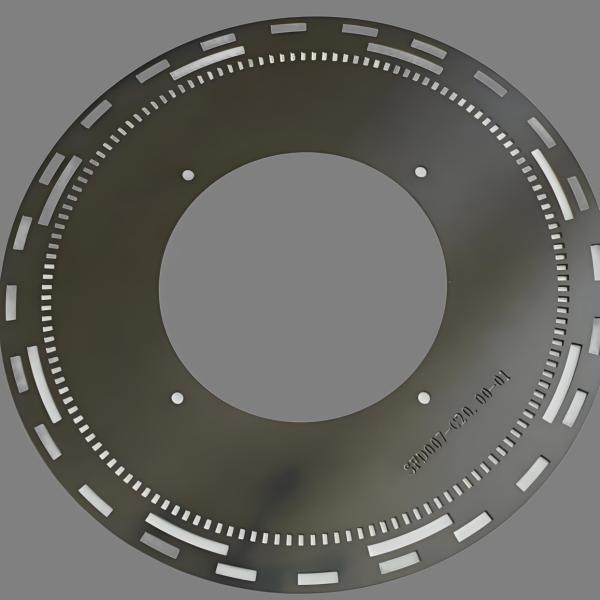

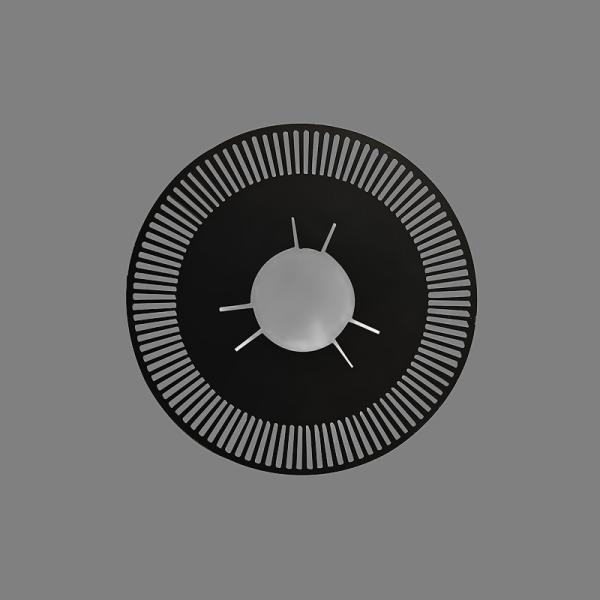

Chemical etching stainless steel encoder disk for optical encoder sensor
Chemical etching stainless steel encoder disk for optical encoder sensor
Chemical etching stainless steel encoder disk for optical encoder sensor
Chemical etching stainless steel encoder disk for optical encoder sensor
Chemical etching stainless steel encoder disk for optical encoder sensor
Chemical etching stainless steel encoder disk for optical encoder sensor
Chemical etching stainless steel encoder disk for optical encoder sensor
Chemical etching stainless steel encoder disk for optical encoder sensor
Specifications
Brand Name :
customized
Model Number :
According to your project file
Certification :
ISO9001,ISO14000
Place of Origin :
Shenzhen, China
MOQ :
open to discuss
Price :
open to negotiate
Payment Terms :
T/T
Supply Ability :
100,0000pcs
Delivery Time :
8-10 working days
Packaging Details :
bespoke package
Machining Method :
Chemical Etching
Packing :
Each in an Wood Packing
Transport Package :
Each in a Poly Bag
Trademark :
None
HS Code :
7613405000
Material :
Steel, Brass, Copper, Aluminum
Specification :
According to your project file
Smallest open hole :
D= 0.1mm when Thickness range from 0.03mm to 0.05mm 1.5*Thickness
Description

Chemical etching stainless steel encoder disk for optical encoder sensor

Encoder specification:

Machining Type photo chemical etching stainless steel precision optical encoder disk
Material Capabilities Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Aluminum, Alloy (Thickness from 0.03 mm up to 1 mm)
Product Dimension 220*280 mm
Product precision 0.01
Smallest open hole D= 0.1mm when Thickness range from 0.03mm to 0.05mm
1.5*Thickness
Centre to Centre for holes 1.5*Thickness
Surface treatment Surface treatment

Photo Etching is flexible, highly accurate and effective at any volume. The photo etching process is known by many names, including chemical etching, acid etching and photo chemical machining (PCM).

Metal Selection

Xinhaisen offer a huge range of metals for etching including: Stainless Steels, Carbon Spring Steels, Copper, Brass, Nickel Silver, Mild steel, Phosphor Bronze, Silver, Beryllium Copper, Aluminium, Nickel, Mu Metal, Alloy 42, Alloy 52 & Many Others.

Benefits of Photo Etching

  1. Precise Tooling
    The photo-tool artwork for photo chemical etching is free of charge here at xinhaisen, as we like to invest in our customers future.
  2. Risk-Free Design
    With the ability to produce rapid prototypes with short lead times, the complexity of your design is often not an issue. We will manufacture to your required drawings and to your exacting standards.
  3. Right First Time
    The chemical etching process does not use mechanical force or heat, which means that the metals properties remain unchanged. The temper of material is also not altered and parts are completely burr-free and stress-free.
  4. No Finishing Required
    Our metal etching process leaves no rough edges or burrs, therefore no additional deburring process is often required.
  5. A variety of Thicknesses
    A huge variety of different material types and thicknesses can be photo etched, ranging from 0.0127mm through to 1.60mm thick.
  6. Tolerances From ±0.025mm
    As your components features are all etched simultaneously, the complexity achievable can be impressive with profile tolerances achievable from ±0.025mm.
Chemical etching stainless steel encoder disk for optical encoder sensor Chemical etching stainless steel encoder disk for optical encoder sensor Chemical etching stainless steel encoder disk for optical encoder sensor
