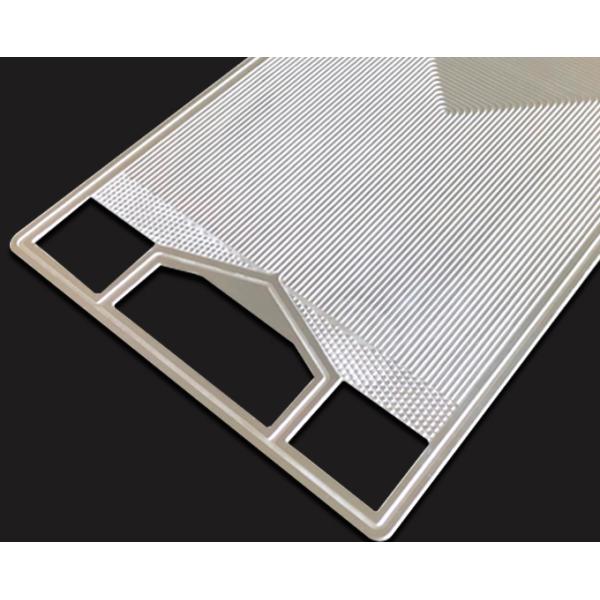

Precision Etching PCHE Heat Exchanger Plate For Hydrogen Refuelling Station

Description of PCHE Heat Exchanger Plate

What is Printed Circiut Heat Exchangers?

The Printed Circuit Heat Exchanger (PCHE) is an advanced heat exchanger that integrates chemically etched microchannels with diffusion bonding. This solid block design ensures high strength, excellent thermal efficiency, and reliable performance under extreme operating conditions.

Specifications of PCHE Heat Exchanger Plate

Manufacturing of PCHE Heat Exchanger Plate

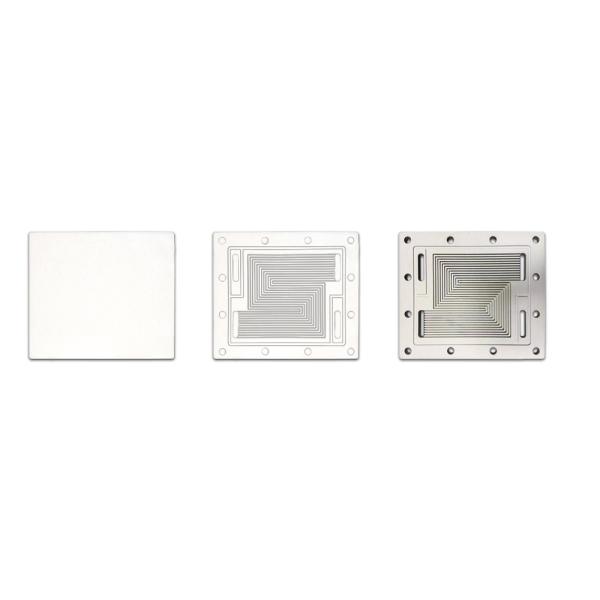

1.Chemical etching micro channels of PCHE heat exchanger plates

Chemical etching, also known as photo etching or photochemical machining (PCM), is a highly accurate process for shaping metals. It works by applying chemical etchants to dissolve specific, pre-defined areas of the metal surface.

• Material Cutting – The metal sheet is cut to the required size for processing.
• Cleaning – Oils, oxides, and contaminants are removed to ensure a clean surface.
• Printing – A photoresist layer is applied, and the design pattern is printed onto the surface.
• Exposure – The printed sheet is exposed to UV light through a photomask, hardening the selected areas.
• Developing – Unhardened photoresist is washed away, revealing the areas to be etched.
• Etching – The sheet is immersed in a chemical solution that removes the exposed metal, forming the desired pattern.
• Stripping – The remaining photoresist is stripped off, leaving the finished etched structure.
• Data Inspection – The final parts are inspected against the design data to ensure precision and quality.

2. Diffusion bonded PCHE heat exchangers plates

We provide comprehensive solutions for printed circuit heat exchangers (PCHEs). Through the combination of precision chemical etching and advanced diffusion bonding, our heat exchangers are engineered to deliver superior efficiency, dependable reliability, and stable performance for the most challenging applications.

Packing and Shipping of PCHE Heat Exchanger Plate

Packing Methods:

We offer multiple packaging options to ensure maximum protection, including protective covers, PE bags, and foam inserts. Customized packaging solutions are also available upon request.

Shipment Methods:

By Air/ Sea/ EMS/ DHL/ FedEx/ UPS

How to custom PCHE Heat Exchanger Plate?

1. Please send us your design.
We accept the following file formats:DWG, DXF, PDF, STP, Gerber, IGES, CorelDraw and AI.

2. Samples making lead time:3-10days

3. Express:By DHL, FedEx, TNT, around 3-7days.
