What is Etching?
Etching is a precise manufacturing process that uses chemical solutions to selectively remove material from metal sheets, creating intricate designs, patterns, or micro-features without affecting the material's inherent properties. It is ideal for producing burr-free, stress-free, and high-precision thin metal components.

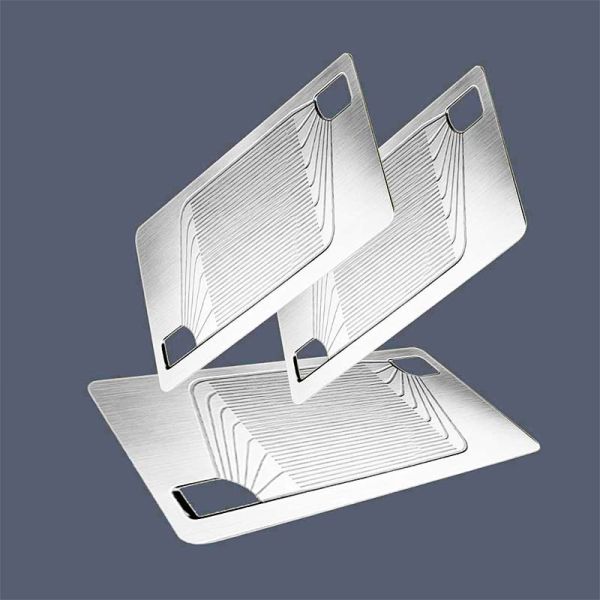

Bipolar Plate Overview
Our etched bipolar plates are key components for fuel cells and flow batteries, designed to facilitate efficient gas/liquid distribution, electrical conductivity, and thermal management. Manufactured using advanced chemical etching technology, these plates feature ultra-fine, complex flow field patterns with exceptional accuracy and consistency, ensuring optimal performance and durability in demanding energy applications.

Bipolar Plate Features

• High Precision: Achieves intricate flow field designs with channel/ridge accuracy up to ±0.03mm.

• Burr-free & Stress-free: No mechanical deformation or thermal stress, ensuring structural integrity.

• Complex Design Flexibility: Easily accommodates custom patterns, micro-channels, and multi-scale features.

• Material Versatility: Suitable for various conductive metals including stainless steel, titanium, and copper alloys.

• Rapid Prototyping & Production: Quick turnaround for both samples and large-volume orders.

• Excellent Consistency: Uniform etching depth and feature geometry across large batches.

Bipolar Plate Specification

Bipolar Plate Applications

• Proton Exchange Membrane Fuel Cells (PEMFC)

• Solid Oxide Fuel Cells (SOFC)

• Redox Flow Batteries

• Electrolyzers for hydrogen production

• Cooling plates for power electronics

• Laboratory and research test cells

Our Advantages

• Precision Expertise: Capable of ultra-fine features (0.03mm micro-holes, 0.015mm line width) ideal for advanced bipolar plate designs.

• Speed & Scalability: Fast response from prototyping to mass production, suitable for urgent and high-volume orders.

• Wide Material Experience: Proven capability with diverse metals used in energy applications.

• Quality Commitment: Strict process control ensures high uniformity (±0.03mm) and reliability.

• Industry Recognition: Trusted by clients in communications, medical, aerospace, and automotive sectors for high-quality precision etching.

Why Choose Xinhaisen?
We combine precision etching expertise with a deep understanding of performance-critical components for energy technology. Our ability to handle complex designs in various metals with tight tolerances, fast turnaround, and consistent quality makes us a reliable partner for your bipolar plate needs. Whether you are developing next-generation fuel cells or scaling up production, we provide the manufacturing agility and technical support to help you succeed.

Welcome to contact us at any time!
