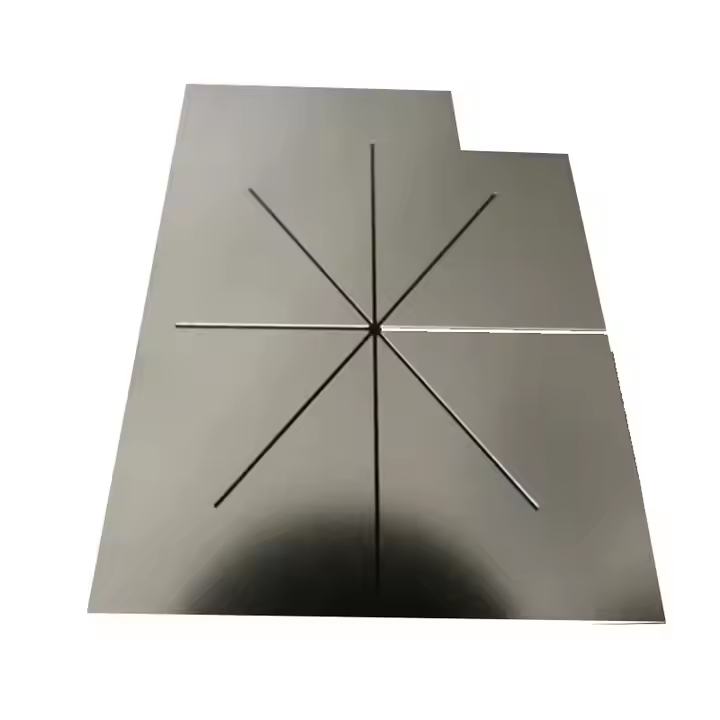

OEM/ODM Etched Metal Shims & Spacers for Communication, Medical, Optical Industries

What is Etching?
Metal etching is a precise, subtractive manufacturing process that uses chemical solutions to selectively remove material from metal sheets, creating complex and burr-free parts without altering the material's inherent properties. It is ideal for producing thin, flat parts with intricate designs and tight tolerances.

Metal Shims Overview
Our etched metal washers are high-precision, flat sealing or spacing components manufactured through advanced chemical etching technology. They offer exceptional accuracy, consistency, and design flexibility unmatched by traditional stamping or laser cutting, especially for thin gauges and complex geometries.

Manufacturing Process

1. Cleaning: Metal sheets are thoroughly degreased and cleaned.

2. Lamination: Application of a light-sensitive photoresist film.

3. Exposure & Development: UV light transfers the digital tooling pattern onto the resist, which is then developed to reveal the washer design.

4. Etching: The sheet is sprayed with a controlled chemical etchant, precisely removing exposed metal areas.

5. Stripping & Cleaning: The remaining resist is removed, and parts are cleaned.

6. Inspection & Packaging: 100% quality inspection followed by careful packaging.

Metal Shims Features

• Burr-Free & Stress-Free: No mechanical force ensures smooth edges and no internal stress or heat distortion.

• High Precision & Consistency: Extremely tight tolerances and perfect uniformity across high-volume batches.

• Design Flexibility: Easy and cost-free prototyping; complex geometries (fine meshes, multi-hole patterns, intricate outlines) are simple to achieve.

• Material Versatility: Processes a wide range of metals without tooling wear.

• Rapid Lead Times: Digital tooling allows for faster production turnaround, from prototype to mass production.

Metal Shims Specification

Metal Shims Applications

• Electronics: EMI/RFI shielding gaskets, insulators, spacers in connectors, PCBs, and sensors.

• Automotive: Sealing washers for fuel systems, transmissions, and sensors; spacers in pumps and motors.

• Medical Devices: Precision spacers and seals in diagnostic equipment, surgical tools, and implants.

• Industrial Machinery: Sealing, spacing, and shimming in pumps, valves, compressors, and assemblies.

• Aerospace: Lightweight, high-reliability seals and shims for critical systems.

Our Advantages

• Precision Experts: We specialize in high-tolerance etching, achieving accuracies and fine features others cannot.

• Speed & Scalability: From urgent small batches to massive, sustained production runs, we deliver reliably and rapidly.

• Material & Design Mastery: Extensive experience with diverse metals and complex part geometries.

• Integrated Supply Chain: Control over material procurement and processing ensures quality and short lead times.

• Proven Reputation: Recognized by clients in demanding industries for high quality, reliability, and excellent service.

Why Choose Xinhaisen?
Choose us as your etching partner for metal washers where precision, consistency, and complexity matter. We bridge the gap between your design intent and the final high-performance component, offering a seamless, responsive, and technically superior manufacturing solution. Our process eliminates the limitations of hard tooling, empowering your innovation with faster time-to-market and cost-effective production at any scale.

Welcome to contact us at any time!
