SJ-5M Countersink 60° Carbide Rotary Burr - High Alloy Steel Processing
SJ-5M Countersink 60° Carbide Rotary Burr - High Alloy Steel Processing
SJ-5M Countersink 60° Carbide Rotary Burr - High Alloy Steel Processing
SJ-5M Countersink 60° Carbide Rotary Burr - High Alloy Steel Processing
SJ-5M Countersink 60° Carbide Rotary Burr - High Alloy Steel Processing
SJ-5M Countersink 60° Carbide Rotary Burr - High Alloy Steel Processing
Specifications
Brand Name :
CABURTECH
Model Number :
SJ - 5M SC
Certification :
ISO9001：2008
Place of Origin :
CHINA
MOQ :
50
Price :
1-5usd/pc
Payment Terms :
T/T,L/C,Western Union
Supply Ability :
70000pcs/month
Delivery Time :
15-30 days
Packaging Details :
carton43*25*22.5cm
Model :
SJ-5M SC
cut dia :
12.7mm
cut length :
11mm
shank dia :
6mm
overall :
56mm
cut :
single
coating :
no
material :
tungsten carbide
carbide grade :
YG7
type :
silver braze
workpiece :
steel, cast iron
Description
SJ-5M Countersink 60° Carbide Rotary Burr - High Alloy Steel Processing

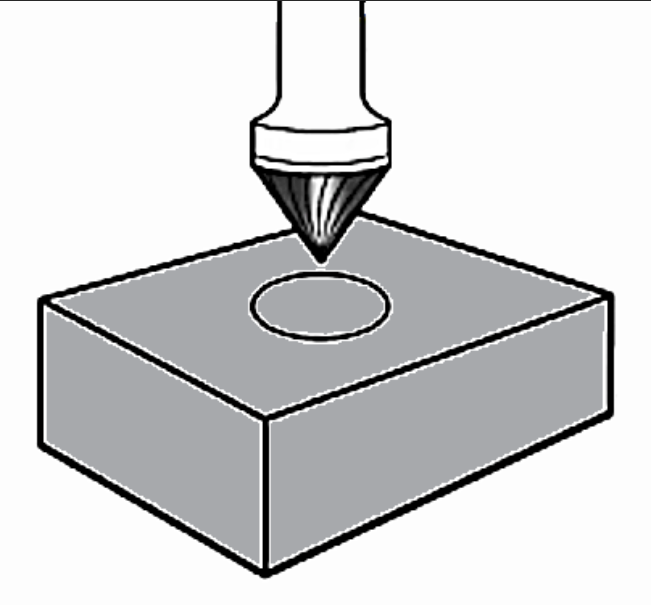

This SJ 60-degree countersink burr is designed specifically for chamfering and deburring operations on high-alloy steels. Its unique 60-degree pattern maintains cutting sharpness while enhancing edge strength, making it particularly suitable for high-precision chamfering of difficult-to-machine materials such as stainless steel and tool steel. The optimized flute design and wear-resistant coating effectively suppress work hardening and built-up edge formation, providing fast, clean, and consistent chamfer quality in aerospace, automotive, and precision machinery manufacturing.

Primary Cutting Geometries

1. Single-Cut

Single-cut rotary burrs feature parallel lines of teeth running diagonally across the cutting face in only one direction. This configuration is particularly suitable for processing soft non-ferrous metals, plastics, soft high-tensile steel, and hard wood. The single-cut pattern has a larger rake angle and larger chip clearance, making it less prone to chip clogging and ensuring efficient cutting on softer materials.

2. Double-Cut

Double-cut (or cross-cut) burrs feature two interlaced groups of cutting teeth that intersect each other. This pattern is more aggressive for material removal and produces less vibration during operation. Double-cut burrs are ideal for high cutting performance on hard materials such as cast iron, cast steel, and glass fiber plastic materials. They provide excellent surface processing quality with relatively high machining efficiency.

Technical Parameters
Model Cut dia (D1) Cut length (D2) Shank (L1) Overall (L2) Type Cut
SJ-5M SC 12.7 11 6 56 Silver braze Single


SJ-5M Countersink 60° Carbide Rotary Burr - High Alloy Steel Processing

Caburtech offers a wide selection of carbide burr shapes in Single and Double Cut styles, including Cylinder, Round nose cylinder, Ball, Oval, Tree, Flame, Cone, Countersink and Inverted Cone. Each shape is designed for grinding, deburring, chamfering, and finishing on steels under 60 HRC, stainless steels, cast iron and etc.

FAQ
1.How to Use:
This product belongs to the commonly used alloy consumables, and is designed to be used with high-speed electric grinders or pneumatic tools.
2.OEM:
We offer OEM services to cater to specific customer requirements.
3.MOQ:
The usual minimum order quantity is 100 pcs per model.
However, this can be adjusted based on your specific requirements. Please consult your sales representative for further details.
4.Lead Time:
The lead time for regular orders is approximately one month, excluding samples.
5.Port:
Shanghai/ Guangzhou/ Shenzhen/ Ningbo/ Yiwu/ Chengdu.
