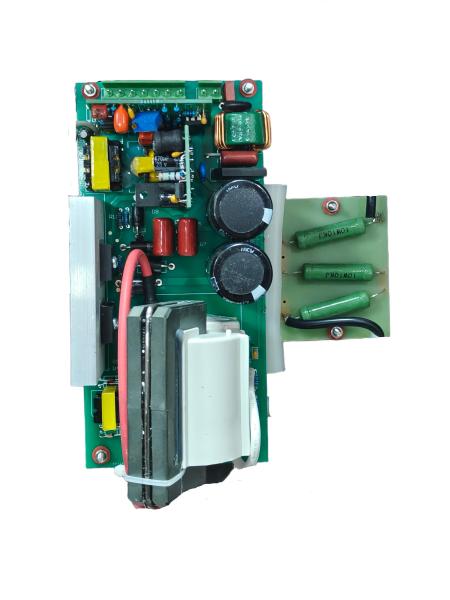

Laser Cutting Engraving Marking 35mW Hene Laser Power Supply 110-220V
Laser Cutting Engraving Marking 35mW Hene Laser Power Supply 110-220V
Specifications
Brand Name :
Precise
Model Number :
JH35
Place of Origin :
China
MOQ :
Negotiable
Payment Terms :
T/T
Delivery Time :
5~10 Working days
Certification :
CE
Price :
300~400 USD
Packaging Details :
Carton
Inputvoltage :
110~220V AC
Frequency :
50/60Hz
Poweroutput :
35mW
Coolingmethod :
Air Cooling
Application :
Laser Cutting, Engraving, Marking
Lasertype :
CO2 Laser
Storagetemperature :
-20°C to 60°C
Modulationfrequency :
0-20kHz
Productname :
Hene Laser Power Supply
Protectionfeatures :
Overvoltage, Overcurrent, Overheat
Outputcurrent :
0-15A
Controlmode :
Analog and Digital
Weight :
1kg
Operatingtemperature :
-10°C to 40°C
Description
Laser Cutting Engraving Marking 35mW Hene Laser Power Supply 110-220V
Product Overview

This 35mW Helium-Neon (He-Ne) Laser Power Supply is a high-performance, precision DC driver designed to excite and regulate 35mW He-Ne laser tubes operating at 633 nm (red wavelength). As one of the most powerful commercial He-Ne power supplies available, it is ideal for demanding applications including metrology, flow cytometry, confocal microscopy, particle measurement, and interferometry.

The power supply features universal AC input (110-240 VAC, 50/60 Hz), comprehensive protection circuits, and stable current regulation to ensure consistent 35mW optical output. It is compatible with major He-Ne laser head models including Newport N-LHP-928, N-LHP-928J, and Pacific Lasertec 25-LHP-928 series.

Key Features
  • 35mW Output Support: Specifically designed for high-power He-Ne laser tubes up to 35mW optical output
  • Universal AC Input: Operates on 110-240 VAC, 50/60 Hz for worldwide compatibility
  • Stable Current Regulation: Maintains consistent discharge current for stable optical output
  • Comprehensive Protections: Over-voltage, over-current, short-circuit, and open-circuit protection
  • Compact Design: Standard 1U-style enclosure for easy rack or benchtop integration
  • Long Lifetime: Supports He-Ne tube lifetimes exceeding 20,000-40,000 hours
Technical Specifications
Parameter Value Condition / Note
Input
Supply Voltage 110 / 220 / 240 VAC ±10% 50/60Hz, selectable or auto-ranging
Max Input Power < 150 W
Max Input Current 1.5A (at 110VAC)
Output (to He-Ne Tube)
Output Voltage (Starting) > 5,000 VDC Typical ignition voltage
Output Voltage (Operating) 1,500 - 2,500 VDC Depends on tube length/gas mixture
Output Current 4 - 8 mA Regulated, adjustable
Ripple / Noise < 1.0% p-p
Compatible Laser Heads
Newport / Spectra-Physics N-LHP-928, N-LHP-928J, N-LHR-993
Pacific Lasertec 25-LHP-928 series
Other Most 35mW He-Ne tubes with standard interfaces
Control & Interface
Control Interface DB-9 / Terminal Block Laser on/off, interlock, current monitor
Remote Interlock Yes External safety interlock input
Status Indicators Power, Laser Ready, Fault LED indicators
Protection & Environment
Protections Over-voltage, Over-current, Short-circuit, Open-circuit, Thermal shutdown Auto-recovery
Cooling Method Convection cooling Fanless for noise-sensitive applications
Operating Temperature 0°C to +40°C
Storage Temperature -20°C to +70°C
Relative Humidity 0 - 95% (non-condensing)
Physical
Dimensions (L×W×H) 241 × 160 × 54 mm Approximate (standard 1/2U rack width)
Weight 1.2 - 1.5 kg
High Voltage Cable Length 1.0 - 1.5 meters Included, with Alden-style connector
Laser Head Compatibility & Specifications

When paired with a compatible 35mW He-Ne laser head, the system achieves the following optical performance:

Parameter Value
Wavelength 632.8 nm (red)
Output Power 35.0 mW (minimum)
Polarization 500:1 linear or random (depending on model)
Spatial Mode TEM00
Beam Diameter (1/e²) 1.23 mm
Beam Divergence (full angle) 0.66 mrad
Beam Drift (long-term) < 0.03 mrad
Longitudinal Mode Spacing 165 MHz
CDRH Classification Class 3B
Applications
  • Metrology & Interferometry: Precision length measurement, alignment, and calibration
  • Flow Cytometry: Cell sorting and analysis in biomedical research
  • Confocal Microscopy: High-resolution fluorescence imaging
  • Particle Measurement: Aerosol and particle size analysis
  • Holography: Recording and reconstruction of holograms
  • Semiconductor / Wafer Inspection: Defect detection and quality control
  • Raman Spectroscopy: Excitation source for chemical analysis
