PP Material Reusable Screw In Flange Anchor Fastener For External Insulation
PP Material Reusable Screw In Flange Anchor Fastener For External Insulation
Specifications
Place of Origin :
HEBEI
Drilling diameter :
8 mm, 10 mm
Embedment depth :
40-50 mm
Load performance :
≥0.80 kN (concrete), ≥0.75 kN (solid brick), ≥0.70 kN (stone), ≥0.60 kN (hollow brick)
Size range :
8×60 to 10×200
Model Number :
MULTIPLE MODELS
Material :
PP
Fastening thickness :
20-150 mm
Description
Golden‑Apricot Screw‑In Flange Anchor MJL‑JX
MJL‑JX Golden‑Apricot Screw‑In Flange Anchor is made of PP material, specially developed for fastening brackets of external thermal insulation integrated boards. It features a screw-through installation design for easy operation and strong anchoring force.
A key advantage is that this anchor can be unscrewed and removed when installation errors occur, effectively reducing material waste caused by rework on construction sites.
Product Specifications
Drilling Diameter 8 mm and 10 mm
Size Range 8×60 up to 10×200
Max Fastening Thickness 20-150 mm
Effective Embedment Depth 40-50 mm
Packaging Information
  • Each bag contains 50 sets
  • Carton packing: All size-8 items and short size-10 items - 1000 sets per carton
  • Long-size 10×120-10×200 - 500 sets per carton
Note: Drilling depth includes thickness of fastened components.
Load Performance
Substrate Minimum Load Capacity
Concrete ≥0.80 kN
Solid Brick ≥0.75 kN
Stone ≥0.70 kN
Hollow Brick ≥0.60 kN
Product inspection reports are available upon customer request.
Installation & Applications

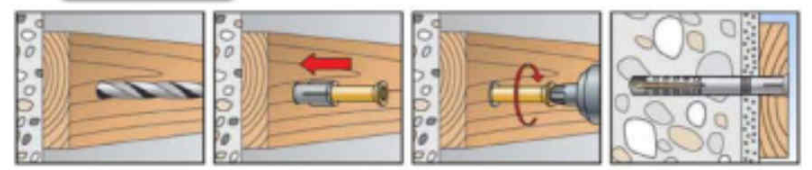

Installation Workflow:
  1. Drill holes on wall
  2. Insert plastic anchor sleeve
  3. Drive the screw in
Compatible Substrates: Concrete, solid brick, stone, and hollow brick
PP Material Reusable Screw In Flange Anchor Fastener For External Insulation
Applications:
  • External insulation integrated-board brackets
  • Auxiliary curtain-wall components
  • Small-size hanging fittings
A practical reusable fastener for external wall insulation projects.
