50 - 300Mpa SPGW Compact Seals SPGW Hydraulic Spgw Piston Seal For Construction Mechanical
50 - 300Mpa SPGW Compact Seals SPGW Hydraulic Spgw Piston Seal For Construction Mechanical
50 - 300Mpa SPGW Compact Seals SPGW Hydraulic Spgw Piston Seal For Construction Mechanical
50 - 300Mpa SPGW Compact Seals SPGW Hydraulic Spgw Piston Seal For Construction Mechanical
50 - 300Mpa SPGW Compact Seals SPGW Hydraulic Spgw Piston Seal For Construction Mechanical
50 - 300Mpa SPGW Compact Seals SPGW Hydraulic Spgw Piston Seal For Construction Mechanical
Specifications
Brand Name :
YOUCHANG/ZHIPAN
Model Number :
SPGW
Certification :
UDEM
Place of Origin :
GUANGDONG ,CHINA
MOQ :
10 pcs
Price :
Negotiable price
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100000 pcs per week
Delivery Time :
2-3 work days
Packaging Details :
PP bag ,carton, pallet
Applications :
heavy-duty applications
Size :
standard or nonstandard
Material :
PTFE+40%Bronze+NBR+NY
Speed: :
<1.5m/s
Pressure :
50-300 Mpa
Temperature :
-30~+110℃
Description

Piston Seal SPGW Compact Seals SPGW Hydraulic Seals for Construction Mechanical

Description

SPGW seal is suitable for use in reciprocating hydraulic cylinders. It has double sealing performance under high load and high pressure working environment. Especially suitable for long time and high temperature environment. Simple trench structure.


SPGW seals are designed for double-acting hydraulic cylinders used in heavy-duty hydraulic equipment. It is ideal for heavy-duty applications and ensures high maintainability. It consists of a Teflon compound outer ring, a rubber inner ring and two nylon support rings. Rubber elastic rings provide stable radial elasticity to compensate for wear. The use of rectangular rings of different materials allows the SPGW model to adapt to a wide range of working conditions. It has the advantages of wear resistance, impact resistance, high pressure resistance, and easy installation.

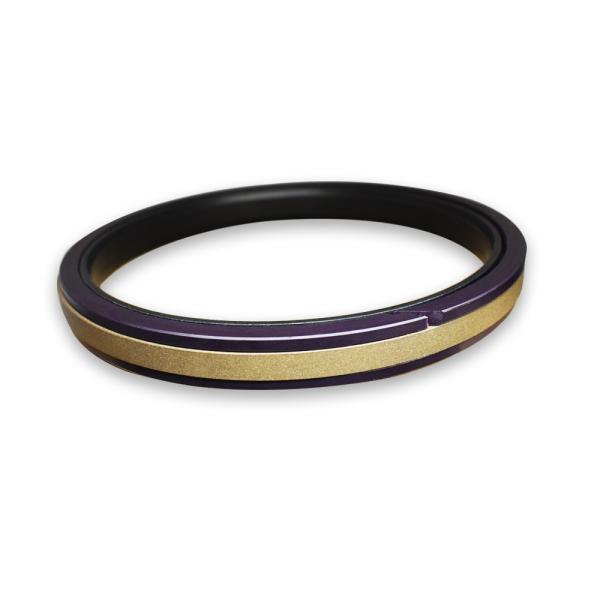

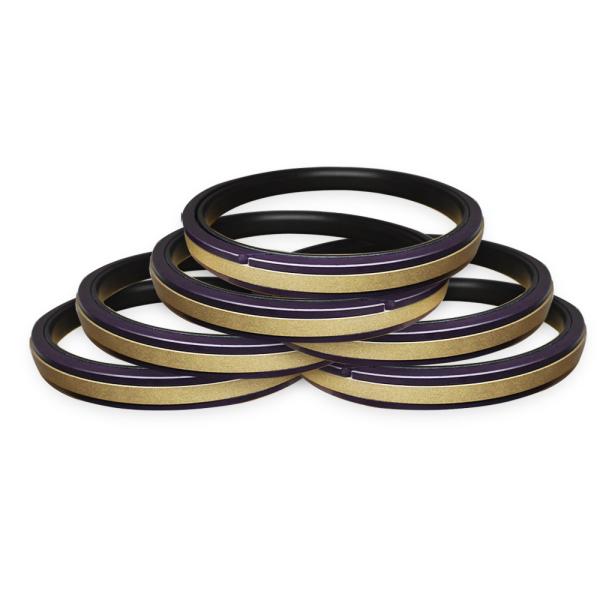

Product Display

50 - 300Mpa SPGW Compact Seals SPGW Hydraulic Spgw Piston Seal For Construction Mechanical

50 - 300Mpa SPGW Compact Seals SPGW Hydraulic Spgw Piston Seal For Construction Mechanical

Material

Profile seal: PTFE with 40% -60% bronze

Back up ring: NYLON- black color

Pressure ring: NBR - black color

Technical Data

Diameter range: 50-300

Working conditions

Pressure: 50-300 Mpa

Speed: ≤1.5m/s

Temperature: -30~+110℃

Media: Hydraulic oils (Mineral oil-based) / Fire resistant hydraulic fluid / Water and other medium

Advantages

glide quickly

Long service life

Convenient groove design, easy to install

Very good sealing performance even with pressure peaks

Even when working in a high-pressure environment, it has very good sealing performance

Applications

to reciprocating hydraulic systems

Suitable for high temperature environment and large freight forwarding gap

Heavy construction machinery or cylinder piston
