The Pelton turbine is specifically designed for hydropower stations operating with heads ranging from 80-1600m. This impulse turbine efficiently converts high-pressure water flow into rotational energy to drive electrical generators.

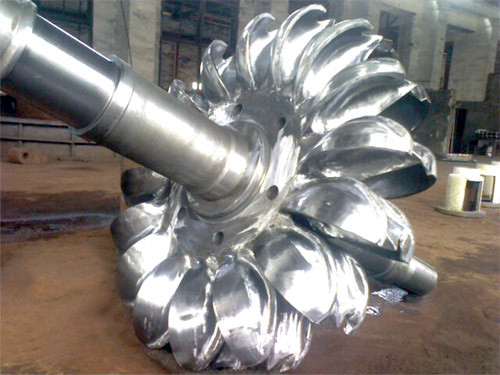

Pelton turbines consist of several key components including the runner, turbine case, nozzles assembly, inlet pipe, and deflector. The runner is mounted on the generator shaft with torque transmission facilitated by pins. The system utilizes the dynamic power of high-pressure water jets, with the jet centerline aligned in the same plane as the rotating runner.

These turbines offer significant advantages including compact construction, stable operation, and ease of use. Smaller Pelton turbines typically feature horizontal shafts with one or two nozzles, while medium and larger units are arranged with vertical shafts and equipped with four or six nozzles to maximize power output.

• Water head: 80m - 1000m
• Power: 0.5MW - 20MW
• Machining type: Cast abrading or monoblock Forge CNC
• Diameter: below 2.5m

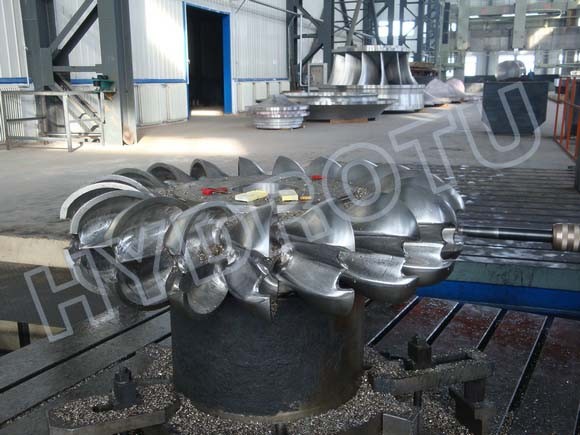

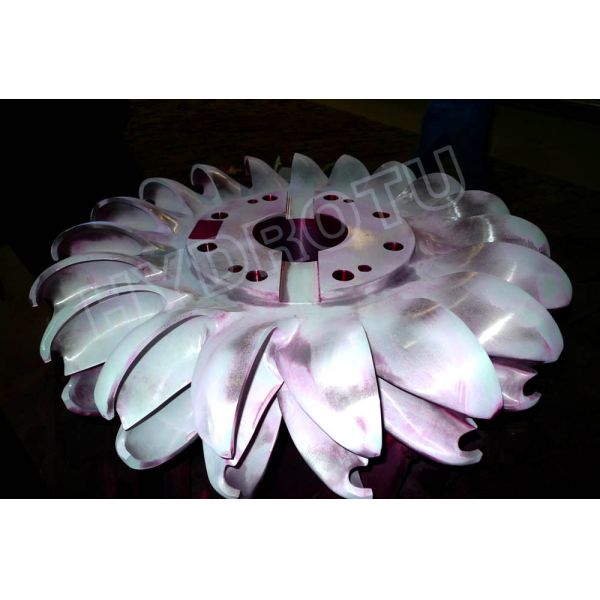

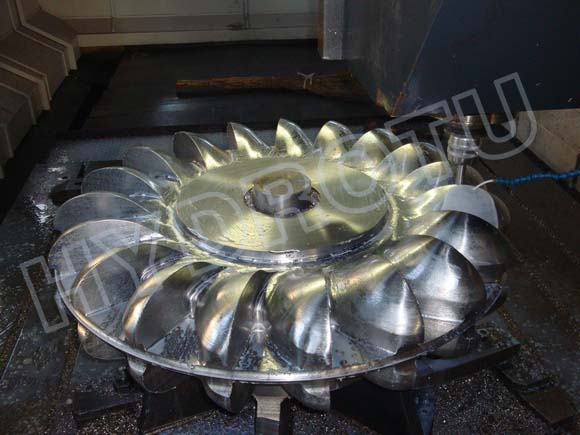

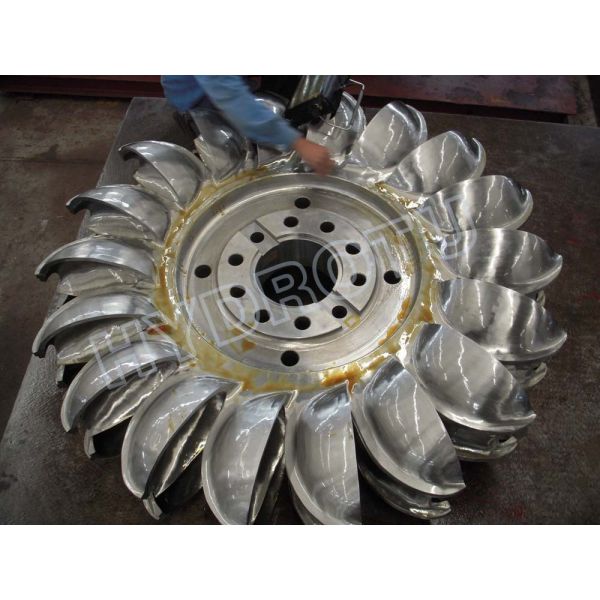

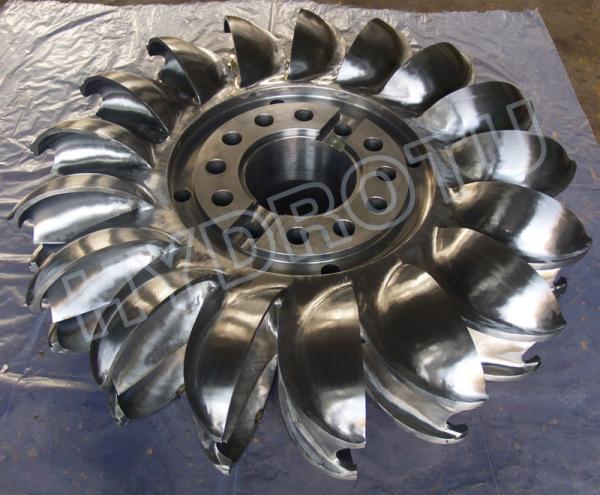

For detailed quotations, please provide key parameters including net head, flow discharge, unit number, frequency, and voltage. We supply Pelton turbine runners above 500kW capacity, manufactured using either forging with CNC machining or cast abrading methods according to your requirements.

HYDROTU is a comprehensive Chinese hydropower equipment supplier, offering consulting services and engineering design solutions in the hydropower sector. We provide high-quality hydropower equipment featuring advanced technologies and integrated services tailored to global market requirements.

Our Integrated Services concept delivers customized support throughout the project lifecycle - from initial planning through implementation to plant commissioning and ongoing maintenance. Our guiding principle: "Customer's project is our project, customer's success is our success."

HYDROTU offers comprehensive services, complete equipment supply, and economically viable solutions for global hydropower projects. Our mission is to become the premier global supplier of hydropower equipment and the leading integrated services provider in the hydropower market.
