Model Name

M-530d

Focused Therapy Seat

Seating Capacity

6-7 adults

Lounge

/

ErgoSurround Seat

4, two with therapy collar

DuoLove Seat

/

cooling seat

1

Dimensions/Weight

Product dimensions

2250*2250*960mm H

Weight - Empty/Filled*

416kgs/2086kgs

Water capacity

1220 liters

DuraBond shell - durable layered laminate construction

Shell material - finest cast acrylic for lasting beauty and high luster

Aristech Cast Acrylic

Shell colors

6878/6427/6811/6696

Electrics

Control system

Balboa GS510SZ (3KW heater)

Thermostatically controlled heater (3KW)

Incoloy heater element, M7 Smart Sensor Technology

Quiet-flow Circulation Pump

1*0.5HP, continuous

Air Bubbler Air blower

Opt.(1x400W)

Efficient High Output Massage Pump

2 x high performance pumps for superior jet output

Electrical Requirements (High Amp option/Low Amp option)

220V/23A,RCD Protected Circuits

Jet configuration

Jet ring trim

plastic

RD Adjustable Hydrotherapy jets

71

air jets

Optional(10pcs)

swim jets for swim current

/

Chromotherapy- Synchronized Mood LED lighting system

5'' Underwater LED Mood lighting

Standard

Waterline mini LED Mood lighting

Optional

Illuminated waterfall

Optional(1 set)

Illuminated rainbow fountain

N/A

Lighted ice bucket/wine cooler

N/A

Cabinet lights

Optional

SuperFlow Leak Resistant Plumbing system

Water diverter - Massage selector

2

Silent Air Venturi control

2

Safety Dual Suction fittings

Standard

Gate valve for easy servicing

6

Food grade pipe & hose

Standard

Hassle-free water manifold distribution

Standard

Venturi system with air manifold distribution
(air-to-water mix for deep massage)

Standard

Bottom drain system

Standard

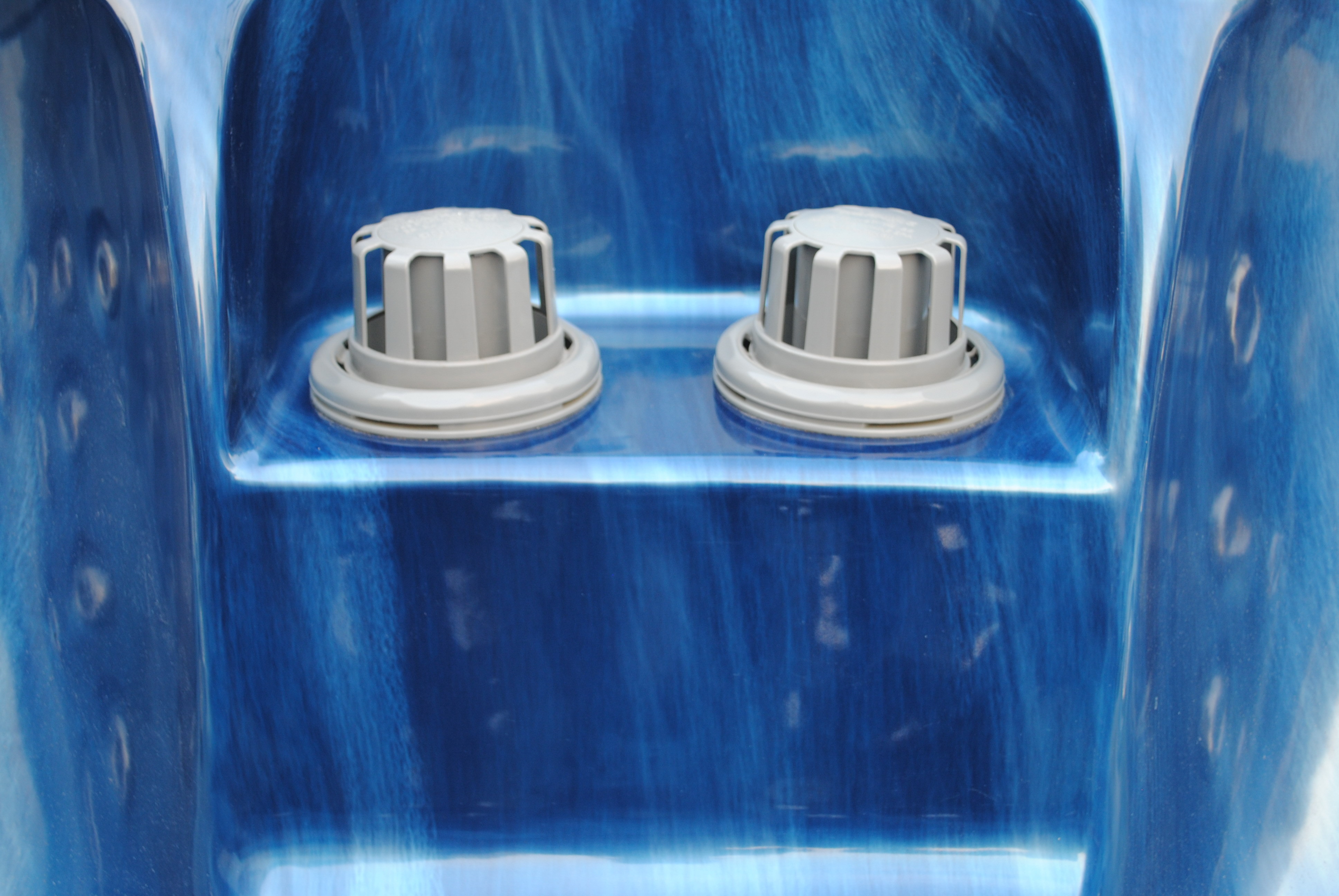

ActiveSkim Filtration system

Pressure Cartridge Filter

2 x Top mount skim cartridge filter with floating weir and skimmer

Easily removable cartridges

2 x50sq.ft, top loading

PureKleanozone system with oxidising chamber

Ozone injectors (pc)

2

Ozone Generator

installed

Ozone Mixer & Mazzi Injector

Standard

Skirting

Maintenance-free synthetic cabinet with removable side panels- easy service access

Standard

Reflective foil covered insulation

Standard

Features

Dura-soft EVA pillow

4

Tough Base fiberglass floor

Standard

Tough bulit Treated Wooden frame-with strengthened corners & seat supports

Standard

Aromatherapy System- to infuse the water with air-driven fragrance

Optional

High density closed cell PU foam Insulation - for superior heat retention and noise reduction

Optional

Heavy duty Lockable hard cover & cover lifter/cover basket/cover roller

Optional

Musictherapy- Multimedia system

high-fidelity DVD Player with MP3 plug

Optional

360° Pop-up speakers

Optional

Sound massage Sub-woofer (iPod ready)

Optional

iPod docking station

Optional

Freestanding self-rising TV

Optional

Ultra-protection Packaging

Zip-up Spa protector bag

Standard

EZ-transport Iron pallet (4-way entry)

Standard

Loading Qty for 40ft container

12
