Technical parameter

※ Working voltage：2-5V(Max 6V), 5～24V(Max 26.7V)
(For the current type,
The minimum working voltage (V) = (sampling resistance +100) *0.02+3.7V)
※ Output signal: Voltage output: 0～2V、0-3.3V、0-5V、0-10V
Current output: 4-20mA (Current signal load adjustment rate<0.004%/Ω)
Linearized signal output
※ Internal resistance of output signal source, voltage type: 0Ω
※ Quiescent current：peak value <30mA，Average<10mA
※ Working frequency: 100MHz
※ Response Time：＜0.1 s
※ Measured refresh time：＜1 s
※ Protection level：IP68
※ Working temperature range：-40℃～85℃（When measuring the frozen permafrost, the water value will be too low and inaccurate, which needs to be compensated and adjusted by the user）
※ Measurement area：center on the central probe in a cylinder with a diameter of 7cm and a height of 10cm

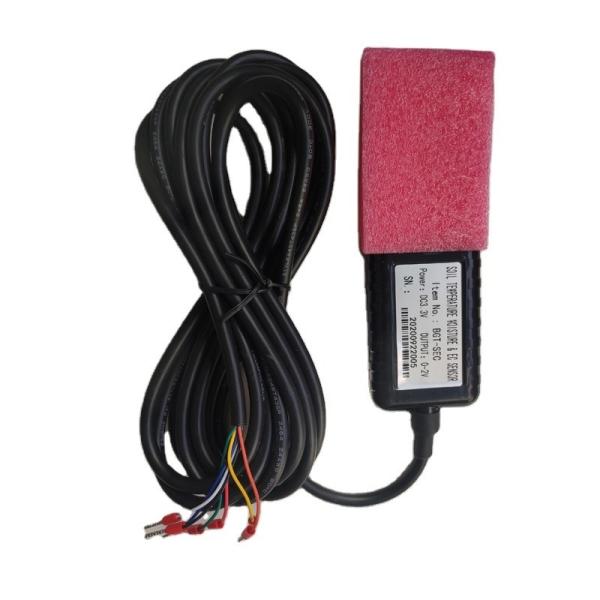

※ Cable length：standard 3.5m (RVVP4*0.3 /UL2464-5*22AWG), can be customized
