402.2mm Height Tipping Bucket Rain Sensor for Meteorological Precipitation Measurement
402.2mm Height Tipping Bucket Rain Sensor for Meteorological Precipitation Measurement
402.2mm Height Tipping Bucket Rain Sensor for Meteorological Precipitation Measurement
402.2mm Height Tipping Bucket Rain Sensor for Meteorological Precipitation Measurement
402.2mm Height Tipping Bucket Rain Sensor for Meteorological Precipitation Measurement
402.2mm Height Tipping Bucket Rain Sensor for Meteorological Precipitation Measurement
402.2mm Height Tipping Bucket Rain Sensor for Meteorological Precipitation Measurement
402.2mm Height Tipping Bucket Rain Sensor for Meteorological Precipitation Measurement
402.2mm Height Tipping Bucket Rain Sensor for Meteorological Precipitation Measurement
402.2mm Height Tipping Bucket Rain Sensor for Meteorological Precipitation Measurement
402.2mm Height Tipping Bucket Rain Sensor for Meteorological Precipitation Measurement
402.2mm Height Tipping Bucket Rain Sensor for Meteorological Precipitation Measurement
Specifications
Warranty :
1 year
Customized support :
OEM
Place of Origin :
Beijing, China
Brand Name :
BGT
Model Number :
WS-601SS2, WS-601SS2
Product name :
Tipping Bucket Rain Gauge
Material :
Stainless Steel ( Body, Base)
Resolution :
0.2mm
Rainfall capacity :
≤ 4mm/min
Output :
Standard Pulse(Reed switch, 5pulse/mm); RS485 optional
Accuracy :
±≤ 2%(≤ 1mm/min); ±≤ 4% (≤4mm/min)
Collector diameter :
200mm ±0.3%
Power supply :
Pulse : MaxDC24V,100mA ; RS485: DC5V or DC 7-24V
Height :
402.2mm
Packaging Details :
Meteorological Precipitation Rainfall Measurement CartonsTipping Bucket Rain Sensor
Port :
tianjin
MOQ :
1 piece
Price :
$128.80/pieces 5-9 pieces
Description
Please attention

402.2mm Height Tipping Bucket Rain Sensor for Meteorological Precipitation Measurement
402.2mm Height Tipping Bucket Rain Sensor for Meteorological Precipitation Measurement
Product Description


WS-601SS2 Stainless Steel Tipping Bucket Rain Guage


Tipping Bucket Rain Gauge is a durable weather instrument for monitoring rain rate and total rainfall. It has been updated and improved with the addition of an inner funnel to even the flow of the rainfall into the gauge, providing better accuracy at higher rainfall rates. With minimal care it will provide many years of service. The rain gauge is constructed of high impact UV-protected plastic/ stainless steel to provide reliable, low-cost tipping bucket rainfall monitoring. The tipping bucket sensor mechanism activates a sealed reed switch that produces a contact closure for each 0.1mm, 0.2 mm or 0.5mm of rainfall. The rain gauge sensor can be pole mounted or bolted to a level plate.
402.2mm Height Tipping Bucket Rain Sensor for Meteorological Precipitation Measurement

Features

WMO standard bucket’s top diameter (200mm/8”)

High Accuracy

Good stability

Low resistance

Mesh in the funnel preventing debris

Highly polished stainless steel construction

Horizontal Bubble in bottom

Application


Environmental monitoring

Water supply system

Hydrological monitoring

Natural disaster monitoring

Climate research

Weather monitoring stations

Smart Agriculture



WS-601SS2

402.2mm Height Tipping Bucket Rain Sensor for Meteorological Precipitation Measurement
402.2mm Height Tipping Bucket Rain Sensor for Meteorological Precipitation Measurement

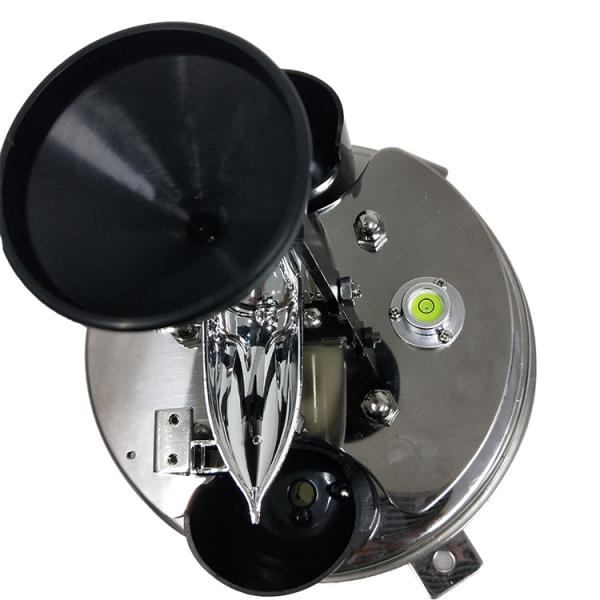

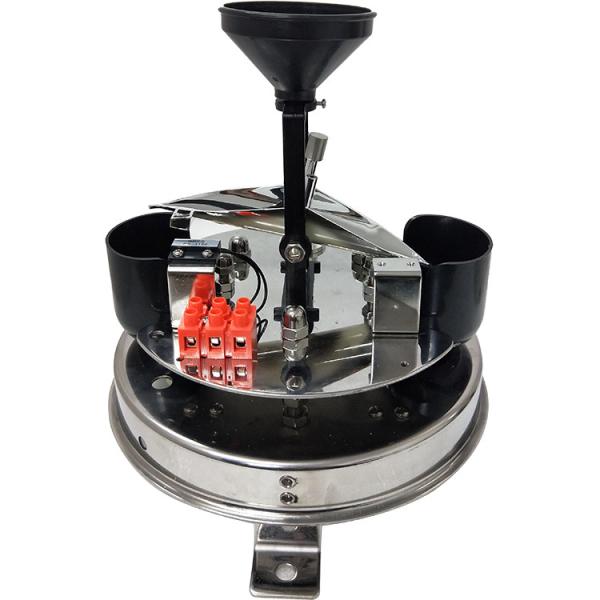

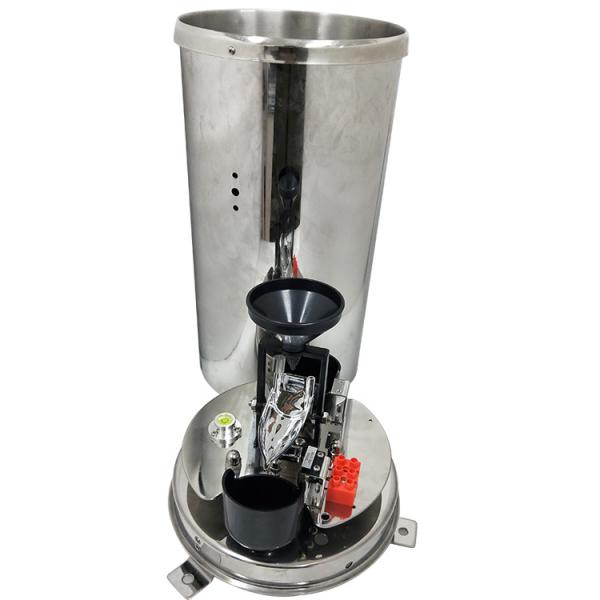

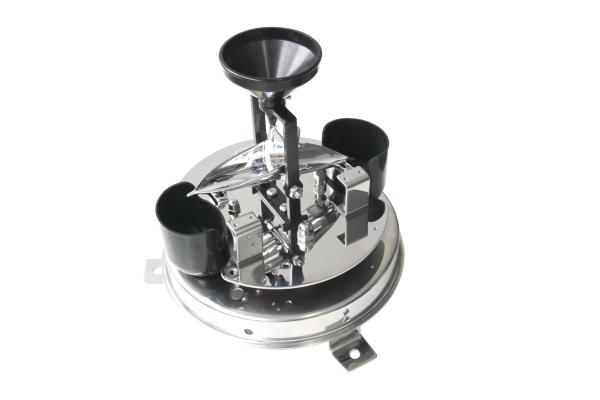

1．Enclosure assembly (Body)
2．Funnel
3．Bracket
4．Tips
5．Reed switch







6.Discharge holder
7. Mounting foot
8. Bull-eye Level
402.2mm Height Tipping Bucket Rain Sensor for Meteorological Precipitation Measurement
402.2mm Height Tipping Bucket Rain Sensor for Meteorological Precipitation Measurement
402.2mm Height Tipping Bucket Rain Sensor for Meteorological Precipitation Measurement
402.2mm Height Tipping Bucket Rain Sensor for Meteorological Precipitation Measurement
402.2mm Height Tipping Bucket Rain Sensor for Meteorological Precipitation Measurement





Specification
Type
WS-601SS2
Material
Stainless Steel ( Body, Base)
Tips
ABS UV Stabilished plastic bucket
Rainfall capacity
≤ 4mm/min
Accuracy
±≤ 2%(≤ 1mm/min); ±≤ 4% (≤4mm/min)
Resolution
0.2mm
Collector diameter
200mm ±0.3%
Collector area
314cm²
Height
402.2mm
Acute angle of cutting edge
40~45°
Output
Standard Pulse(Reed switch, 5pulse/mm);
RS485 optional
Power supply
Pulse : MaxDC24V,100mA ; RS485: DC5V or DC 7-24V
Switch
Rugged Magnetic Proximity
Leveling
Bulls eye level adhered, leveling screw adjust
Debris protection filter
Steel stainless Mesh is provided inside the collector
Mounting holes
Three mountings
Discharge control
Straight through flow mechanism
Working temperature
-20～80℃


Note:

The price is for standard pulse output. If you need RS485 output, please ask us for updating the price.
Installation


1. Use M6 expansion screws fixed on the ground or plate;
2. Adjust leveling according bull-eye level.

402.2mm Height Tipping Bucket Rain Sensor for Meteorological Precipitation Measurement
Applications
402.2mm Height Tipping Bucket Rain Sensor for Meteorological Precipitation Measurement
Order process


-- In order to send you the specific quotation, please feel free to tell us the
following information:

1. The power supply you required -- We have Pulse : MaxDC24V,100mA ; RS485: DC5V or DC 7-24V for your choices.2. The output method.
you required -- We have pulse or RS485 for your choices.
3. The cable length you required -- The standard doesn't include cable. If you need cable, please ask us.
4. The quantity you want to order--Sample is also welcome.
5. Price--EXW price or FOB price or DAP price.
6. Your complete company name,address (including post code), email address, contact person, phone number,etc.
