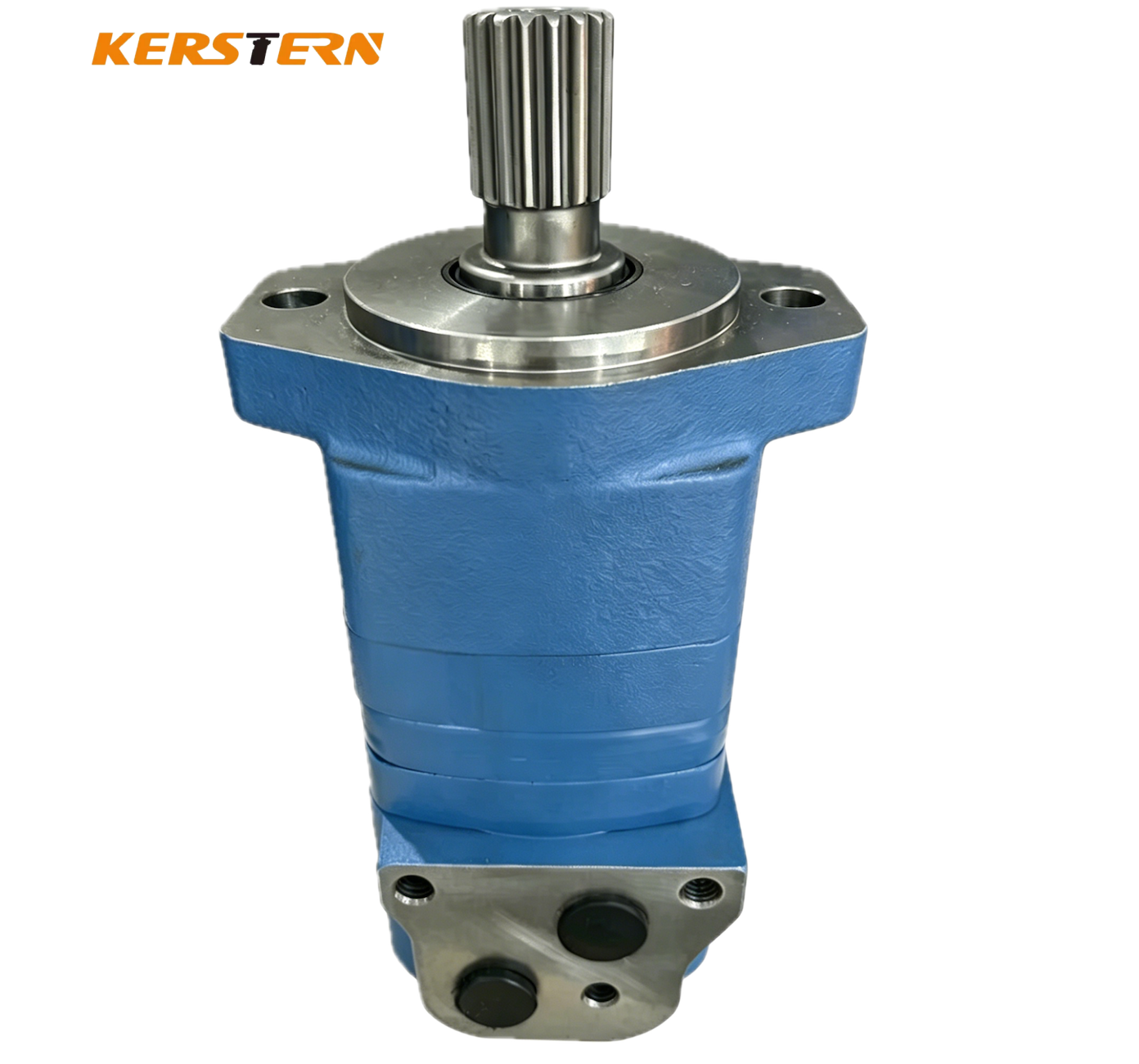

KM5 Series LSHT Hydraulic Motor

The KM5 series is a heavy-duty low-speed high-torque (LSHT) orbital hydraulic motor designed for continuous industrial drive applications.

The motor adopts a disc valve distribution system combined with double-row tapered roller bearings, providing a structural configuration suitable for applications involving continuous operation and significant radial loads.

With a displacement range of 80–500 ml/r and continuous working pressure of up to 20.5 MPa, the KM5 series can be matched to different torque and speed requirements in heavy-duty hydraulic equipment.

Main Specification

Advantages

1. Low-Speed High-Torque Design
   Suitable for hydraulic drive systems requiring high torque at low rotational speeds.

2. Disc Valve Distribution System
   Designed for hydraulic flow distribution in continuous-duty operating conditions.

3. Double-Row Tapered Roller Bearings
   Suitable for applications involving significant radial load conditions.

4. Wide Displacement Range
   80–500 ml/r provides multiple displacement options for different equipment requirements.

5. Continuous Working Pressure up to 20.5 MPa
   Suitable for medium-to-heavy-duty hydraulic drive systems within the specified operating range.

6. Heavy-Duty Industrial Applications
   Applicable to quarry equipment, mining conveyors, crushers, screening systems, agricultural machinery, and industrial material handling systems.

   FAQ

7. 1. What is the KM5 hydraulic motor?
   The KM5 is a low-speed high-torque orbital hydraulic motor designed for heavy-duty industrial hydraulic drive applications.

   2. What is the displacement range of the KM5 series?
   The KM5 series provides a displacement range of 80–500 ml/r.

   3. What is the maximum continuous working pressure?
   The continuous working pressure is up to 20.5 MPa, subject to the applicable model and operating conditions.

   4. What type of bearing does the KM5 use?
   The KM5 series adopts double-row tapered roller bearings, making it suitable for applications involving significant radial loads.

   5. What applications are suitable for KM5 hydraulic motors?
   Typical applications include quarry and mining equipment, crushers, screening systems, industrial conveyors, agricultural machinery and heavy-duty material handling equipment.

   6. Is the KM5 designed for high-speed operation?
   The KM5 is primarily positioned as a low-speed high-torque hydraulic motor for continuous and heavy-duty applications rather than as a high-speed motor.
