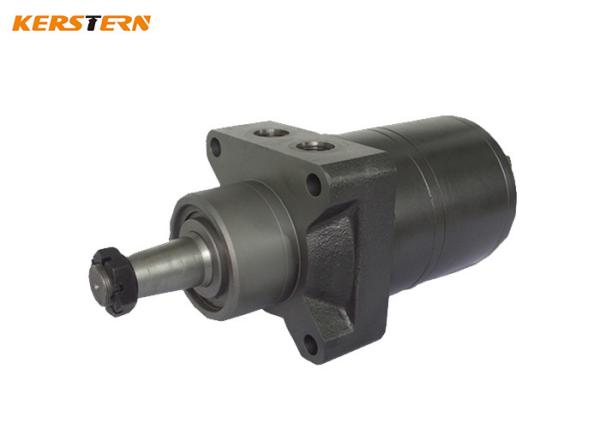

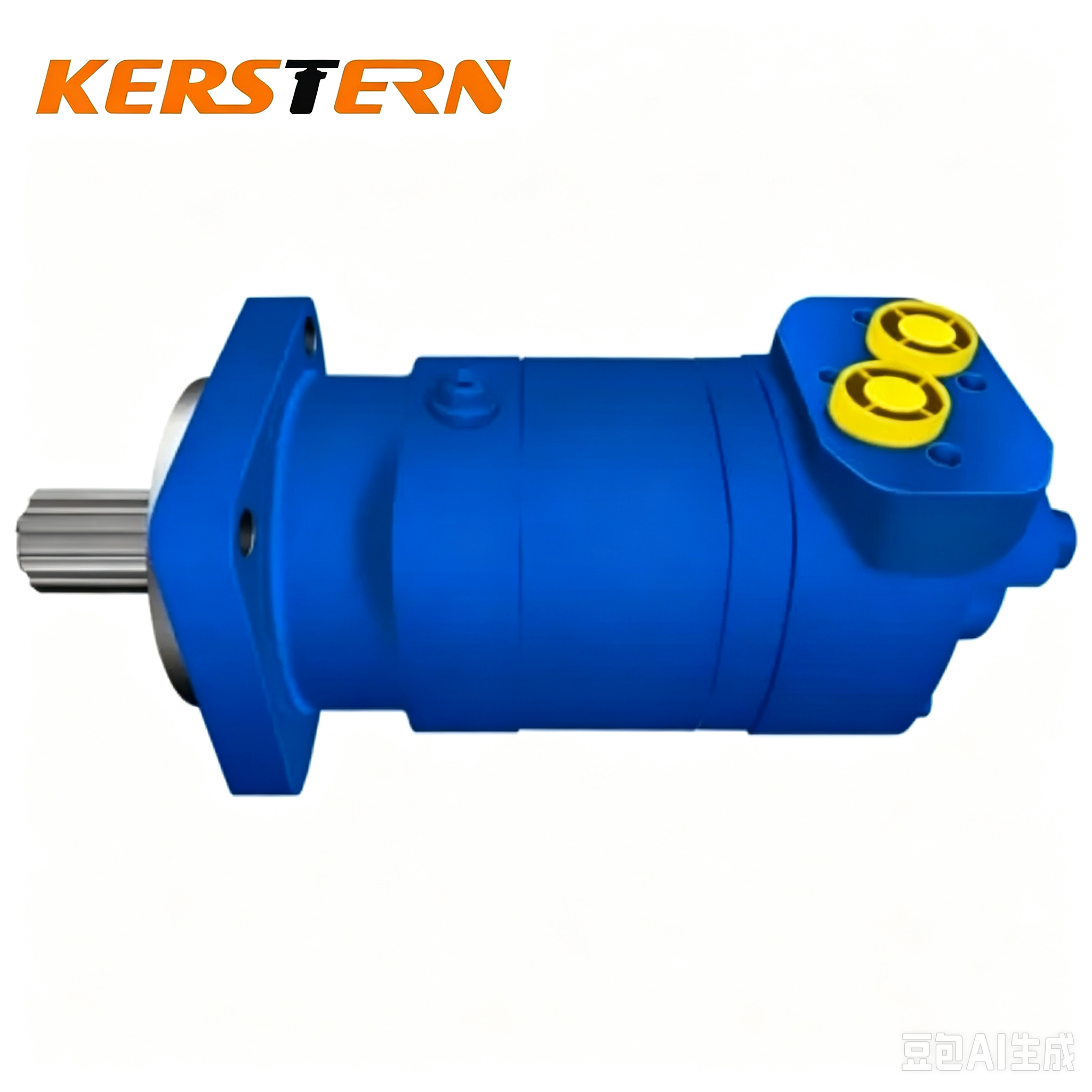

775rpm BM6 12v Electric High Speed Hydraulic Motor High Torque 12v Electric High Rpm
775rpm BM6 12v Electric High Speed Hydraulic Motor High Torque 12v Electric High Rpm
Specifications
Motor shafts :
Straight, splined and tapered
Motor flange :
Square and rhombus flange
Warranty :
One year
Type :
Hydraulic orbital motor
Model :
KM6 6K
Structural style :
Cycloid
Certification :
ISO9001
Package :
Standard package
Original place :
China
Power :
Hydraulic oil
Motor application :
Construction machinery and agricultural machinery
Material :
Cast iron
Processing :
Forging & cutting
Color :
As requests
Brand Name :
KERSTERN
Model Number :
KM6 6000 Series
Place of Origin :
China
MOQ :
5 PCS
Price :
Negotiable
Payment Terms :
T/T or L/C
Supply Ability :
1000 pcs per month
Delivery Time :
Ten days after you confirm the order
Packaging Details :
Carton or wooden box
Description

High Pressure High Torque High Speed Motor For Engineering Machine Drilling rig

Note:

1. Continuous data:The Max.Value of operating motor continuously.

2. Intermittent Data:The Max.Value of operating motor in 6 seconds per minute.

3. A simultaneous max. RPM and max. Pressure is not recommended.

4. The Conversion Factors is on the page 4, consult it please

5. Optimum operating situation should be at the 1/3 ~ 2/3 of the continuous operating situation.

Specifications of High Speed Hydraulic Motor :

Displacement(ml/r) 195 245 310 395 490 625 800 985
Flow(LPM) Cont. 150 150 150 150 150 150 150 150
Int.. 170 210 225 225 225 225 225 225
Speed(RPM) Cont. 775 615 485 383 307 241 184 153
Int.. 866 834 698 563 454 355 276 230
Pressure(Mpa) Cont. 20.5 20.5 20.5 20.5 17 14 12 12
Int.. 31 31 31 31 27.5 17 14 14
Torque(N*m) Cont. 575 735 930 1169 1215 1330 1380 1570
Int.. 860 1180 1335 1655 1885 1380 1650 1875

Descrition:

Compact in design with spool valving and Geroler
Imported high pressure capacity shaft seal
Wide variety of mounting flanges, shafts, ports
and speed provides design flexibility

Direction of shaft rotation and speed can be controlled easily and smoothly
Best combination of efficiency and economy in medium duty applications

Applications: Hydraulic system, engineering machine, industry machine

Competitive Advantage: Good quality, Complete Series, Competitive price and Best service.

Packing:
775rpm BM6 12v Electric High Speed Hydraulic Motor High Torque 12v Electric High Rpm

Transportation:
775rpm BM6 12v Electric High Speed Hydraulic Motor High Torque 12v Electric High Rpm

FAQ:

1. who are we?
We are based in Jinan, China, start from 2003.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. what can you buy from us?
Hydraulic motor
4. How long is the Warranty?
One-year warranty.
5. What is your payment terms?
Re: 100% in advance, long-term dealer 30% in advance, 70% beofre shipping.
6. How about the delivery time?
Normal Models within 2 days, unusual models and bulk order within 5-10 days.
