Specifications
Place of Origin :
China
Brand Name :
Mixer
Type :
Rubber Cutting Machine, Vertical type and horizontal type
Condition :
New
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Warranty of core components :
5 years
Core Components :
PLC, Engine, Motor, Gear
Voltage :
220V,380V, 415V ETC
Dimension(L*W*H) :
1020x600x1000mm
Warranty :
1 Year
Key Selling Points :
Sustainable
Power (kW) :
0.37 kW
Weight (KG) :
210 KG
Applicable Industries :
Manufacturing Plant
Showroom Location :
None
Power(W) :
0.37kw
Weight :
210kg
After-sales Service Provided :
Video technical support
After Warranty Service :
Online support
Certification :
CE
Marketing Type :
New Product 2020
Packaging Details :
wooden case package
Supply Ability :
30sets per months
Price :
$6,400.00/sets >=1 sets
MOQ :
1set
Delivery Time :
20-30days
Payment Terms :
T/T
Description
Product Description

Application:

Trimming for Kinds of rubber skeletons, oil seal, packing leather, kinds of washer, round rubber parts.

1020x600x1000mm Vertical Rubber Trimming Machine for O Ring and Oil Seal 210 KG Weight

Vacuum≤-0.035Mpa circular run out of main spindle≤0.01mmplane run out≤0.02mmSpeed of spindle:0-3000r/mincut degree:packing leather :0°~90°; oil seal:-10°~100°

cut range :10mm-200mm (adjustable)

Blade specification(ThickxWidexLength):3x3x60mmProduction capacity≥20 pcs/minMotor:0.37 kwVoltage: 220vWeight: 280kgDimension:850mm×850mm×1800mm

Technical Specification:

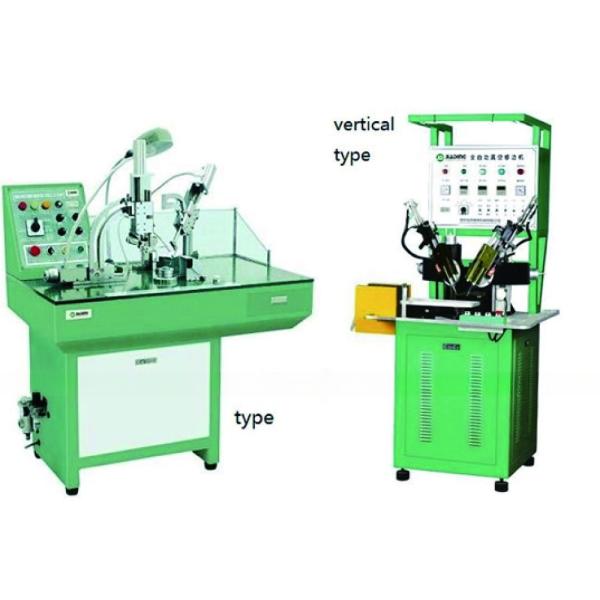

Structure

Vertical

Horizontal

Vacuum Degree

≤-0.035Mpa

≤-0.035Mpa

Spindle Precision

Radial run-out≤0.01mm;

End face run-out≤0.02mm

Radial run-out≤0.01mm;

End face run-out≤0.02mm

Shaft Speed

0-3000r/min

0-3000r/min

Cut Degree

Oil seal:20°~70°;

Seal cup:0°~90°

Oil seal:20°~70°;

Seal cup:0°~90°

Cut Range

φ5mm- φ200mm (adjustable)

φ5mm- φ200mm (adjustable)

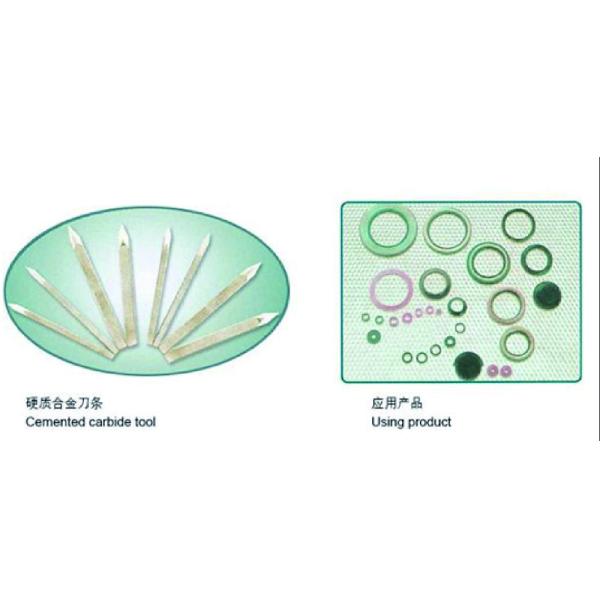

Blade Size (ThickxWxLength)

3x3x60mm

3x3x60mm

Production Capacity

≥20 pcs/min

≥20 pcs/min

Motor

0.37KW

0.37KW

Voltage

220V

220V

Weight

210 kg

220 kg

Dimension(LxWxH:mm)

1020x600x1000

850x850x1800
