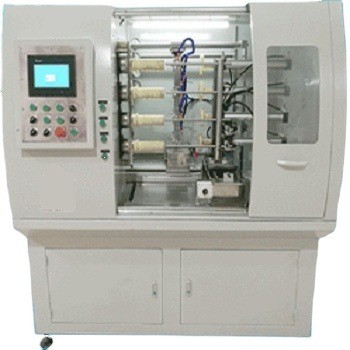

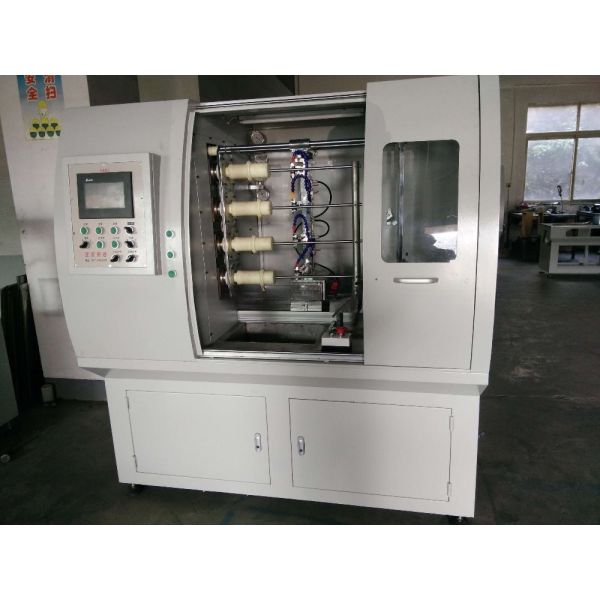

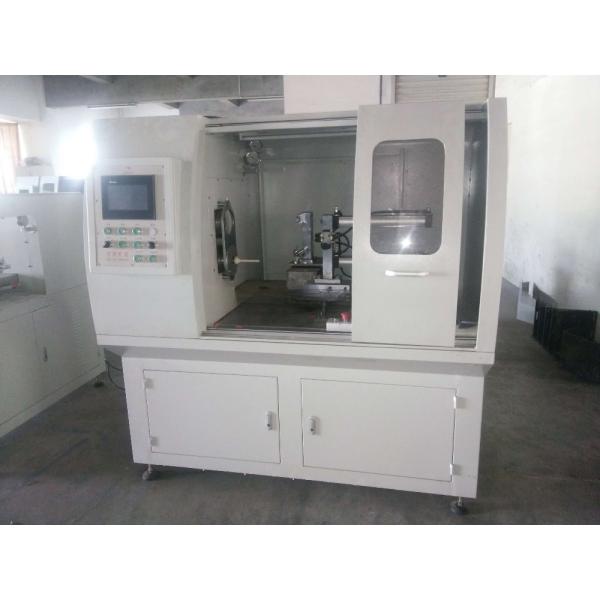

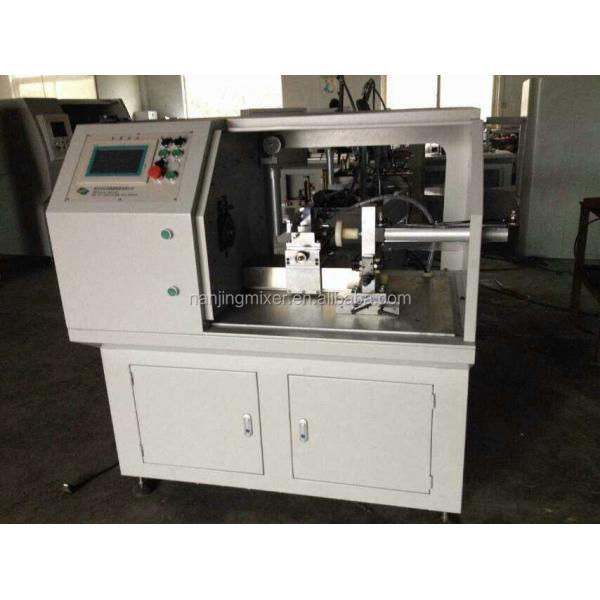

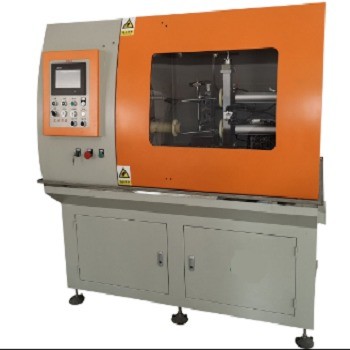

mandrel machine cutting ring gasket rubber/cutter with servo control
mandrel machine cutting ring gasket rubber/cutter with servo control
mandrel machine cutting ring gasket rubber/cutter with servo control
mandrel machine cutting ring gasket rubber/cutter with servo control
mandrel machine cutting ring gasket rubber/cutter with servo control
mandrel machine cutting ring gasket rubber/cutter with servo control
mandrel machine cutting ring gasket rubber/cutter with servo control
mandrel machine cutting ring gasket rubber/cutter with servo control
mandrel machine cutting ring gasket rubber/cutter with servo control
mandrel machine cutting ring gasket rubber/cutter with servo control
mandrel machine cutting ring gasket rubber/cutter with servo control
mandrel machine cutting ring gasket rubber/cutter with servo control
Specifications
Place of Origin :
China
Brand Name :
Mixer
Type :
Rubber Cutting Machine, Single shaft and double shaft
Condition :
New
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Warranty of core components :
1 Year
Core Components :
Bearing, Gearbox
Voltage :
220V,380V, 415V ETC
Dimension(L*W*H) :
1200x800x1210mm
Warranty :
1 Year
Key Selling Points :
Sustainable
Power (kW) :
1.4 kW
Weight (KG) :
300 KG
Applicable Industries :
Manufacturing Plant
Showroom Location :
None
After-sales Service Provided :
Field installation, commissioning and training
After Warranty Service :
Video technical support
Price :
$9,500.00/sets >=1 sets
Certification :
CE
MOQ :
1set
Packaging Details :
wooden case package
Delivery Time :
20-30days
Payment Terms :
T/T
Supply Ability :
30sets per months
Description
Product Description

Application:

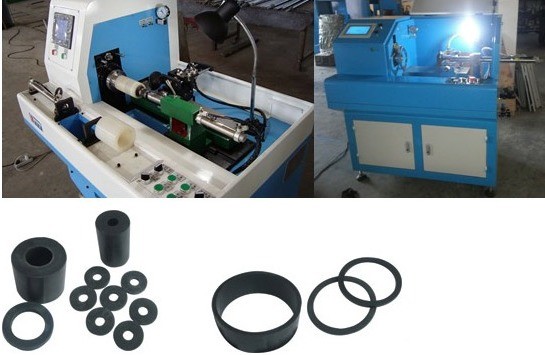

Fast cut of all kinds of rubber, silicone gaskets/ washer, ring-shaped tubular products.

Features:

1. When the cut is finished, materials take off automatically, and through the collection boxes to gather the cut products.

2. Vacuum absorption of the cut product, so ensuring the finished product more precise.

3. Automatic air blowing function makes loading and unloading more convenient, greatly improve the product cutting efficiency;

4. Using color LCD touch screen control, operation is simple.

5. All electrical components,pneumatic components are imported from abroad or domestic famous brand products, to ensure long-term use, reliability and stability of the new machine.

6. According to customer requirements,choose to install a round blade or strip blade, ensuring cost saving on the blade.

7.There are single shaft,double shafts,4 shafts for options.

Specification

Model

JCM200-1

JCM200-2

cutting efficiency

≥60 times /min

≥60 times /min

Working rotation speed

0-3000rpm

0-3000rpm

Cut precision

≤±0.05 mm

≤±0.05 mm

Cut range

(1) Rubber diameter: Φ 10-150mm

(2Cut length (standard):≤140mm; Lengthened type ≤350

(3)Rubber wall thickness: ≤ 18mm

(1) Rubber diameter: Φ10-150mm

(2Cut length (standard):≤140mm; Lengthened type ≤ 350

(3)Rubber wall thickness: ≤ 20mm

Specification of blade

1.Round disc blade:Φ60* Φ25.4x0.3

2.Strip shape 3x3x60mm

1.Round disc blade: Φ60* Φ25.4x0.3

2.Strip shape 3x3x60mm

consumption of compressed air

20L/min

30L/min

Air pressure

0.5Mpa-0.8Mpa

0.5Mpa-0.8Mpa

Vacuum degree

≤ -0.035Mpa

≤-0.035Mpa

Power source

AC220V±5%

AC220V±5%

Total power

1.4 KW

3 KW

Total weight

280kg

550kg

Dimension

1200x800x1210mm

1600x900x1650mm
Shipment moment
