210kg Vacuum Automatic Rubber Cutting Machine for Shaft and Axis Type Oil Seal Trimming
210kg Vacuum Automatic Rubber Cutting Machine for Shaft and Axis Type Oil Seal Trimming
210kg Vacuum Automatic Rubber Cutting Machine for Shaft and Axis Type Oil Seal Trimming
210kg Vacuum Automatic Rubber Cutting Machine for Shaft and Axis Type Oil Seal Trimming
210kg Vacuum Automatic Rubber Cutting Machine for Shaft and Axis Type Oil Seal Trimming
210kg Vacuum Automatic Rubber Cutting Machine for Shaft and Axis Type Oil Seal Trimming
210kg Vacuum Automatic Rubber Cutting Machine for Shaft and Axis Type Oil Seal Trimming
210kg Vacuum Automatic Rubber Cutting Machine for Shaft and Axis Type Oil Seal Trimming
Specifications
Place of Origin :
China
Brand Name :
Mixer
Type :
Rubber Cutting Machine, Vertical type and horizontal type
Condition :
New
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Warranty of core components :
5 years
Core Components :
PLC, Engine, Motor, Gear
Voltage :
220V,380V, 415V ETC
Dimension(L*W*H) :
1020x600x1000mm
Warranty :
1 Year
Key Selling Points :
Long Service Life
Power (kW) :
0.37 kW
Weight (KG) :
210 KG
Applicable Industries :
Manufacturing Plant
Showroom Location :
None
Power(W) :
0.37kw
Weight :
210kg
After-sales Service Provided :
Video technical support
Certification :
CE
Marketing Type :
New Product 2020
Price :
$6,000.00 - $9,999.00/sets
MOQ :
1set
Packaging Details :
wooden case package
Delivery Time :
20-30days
Payment Terms :
T/T
Supply Ability :
30sets per months
Description
Product Description

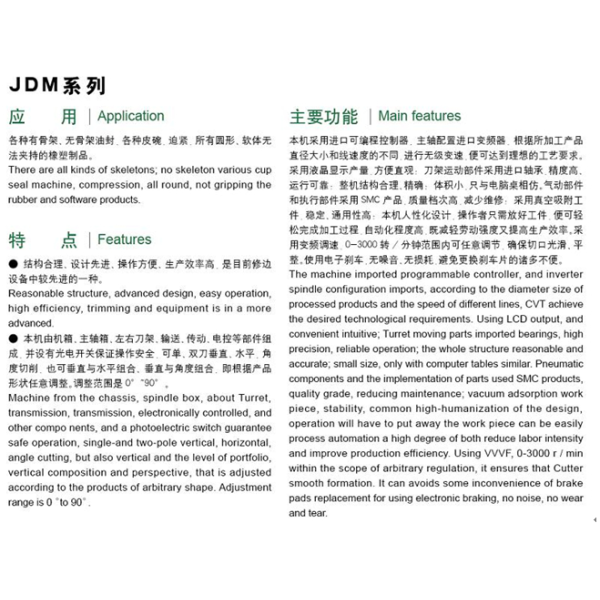

Application:

Trimming for Kinds of rubber skeletons, oil seal, packing leather, kinds of washer, round rubber parts.

210kg Vacuum Automatic Rubber Cutting Machine for Shaft and Axis Type Oil Seal Trimming

Vacuum≤-0.035Mpa circular run out of main spindle≤0.01mmplane run out≤0.02mmSpeed of spindle:0-3000r/mincut degree:packing leather :0°~90°; oil seal:-10°~100°

cut range :10mm-200mm (adjustable)

Blade specification(ThickxWidexLength):3x3x60mmProduction capacity≥20 pcs/minMotor:0.37 kwVoltage: 220vWeight: 280kgDimension:850mm×850mm×1800mm

Technical Specification:

Structure

Vertical

Horizontal

Vacuum Degree

≤-0.035Mpa

≤-0.035Mpa

Spindle Precision

Radial run-out≤0.01mm;

End face run-out≤0.02mm

Radial run-out≤0.01mm;

End face run-out≤0.02mm

Shaft Speed

0-3000r/min

0-3000r/min

Cut Degree

Oil seal:20°~70°;

Seal cup:0°~90°

Oil seal:20°~70°;

Seal cup:0°~90°

Cut Range

φ5mm- φ200mm (adjustable)

φ5mm- φ200mm (adjustable)

Blade Size (ThickxWxLength)

3x3x60mm

3x3x60mm

Production Capacity

≥20 pcs/min

≥20 pcs/min

Motor

0.37KW

0.37KW

Voltage

220V

220V

Weight

210 kg

220 kg

Dimension(LxWxH:mm)

1020x600x1000

850x850x1800

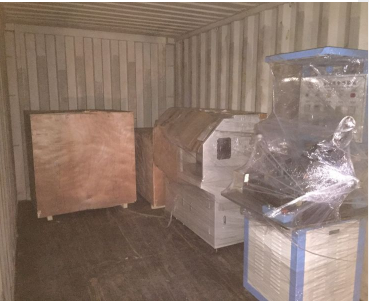

Shipment moment

210kg Vacuum Automatic Rubber Cutting Machine for Shaft and Axis Type Oil Seal Trimming210kg Vacuum Automatic Rubber Cutting Machine for Shaft and Axis Type Oil Seal Trimming
